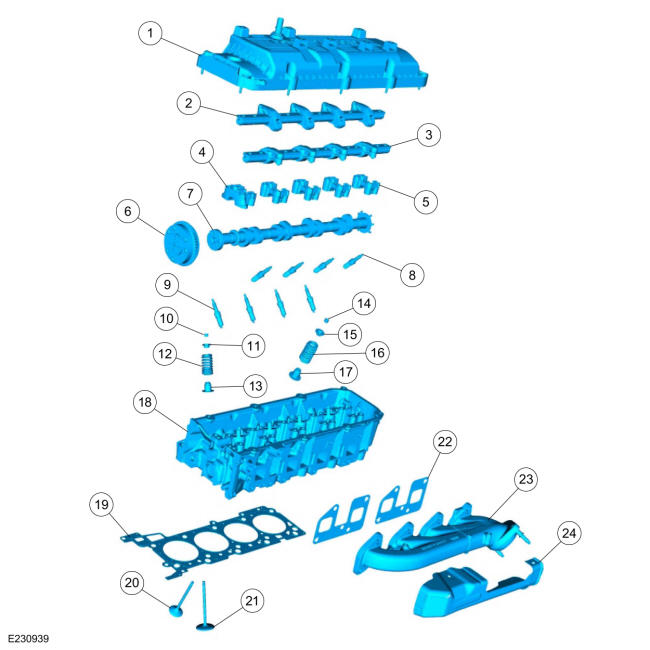

Upper Engine - LH Cylinder Head Exploded View
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6582 | Valve cover - LH |
| 2 | 6564C | Intake rocker arm and shaft assembly - LH |
| 3 | 6C552 | Exhaust rocker arm and shaft assembly - LH |
| 4 | 6B280 | Front camshaft bearing cap - LH |
| 5 | 6B284 | Camshaft bearing cap - LH (4 required) |
| 6 | 6C524 | Camshaft phaser and sprocket - LH |
| 7 | 6A274 | Camshaft - LH |
| 8 | 12405 | Lower spark plug (4 required) |
| 9 | 12405 | Upper spark plug (4 required) |
| 10 | 6518 | Valve spring retainer key (8 required) - Intake |
| 11 | 6514 | Valve spring retainer (4 required) - Intake |
| 12 | 6513 | Valve spring (4 required) - Intake |
| 13 | 6A517 | Valve stem seal (4 required) - Intake |
| 14 | 6518 | Valve spring retainer key (8 required) - Exhaust |
| 15 | 6514 | Valve spring retainer (4 required) - Exhaust |
| 16 | 6513 | Valve spring (4 required) - Exhaust |
| 17 | 6A517 | Valve stem seal (4 required) - Exhaust |
| 18 | 6050 | Cylinder head - LH |
| 19 | 6051 | Cylinder head gasket - LH |
| 20 | 6505 | Exhaust valve (4 required) - LH |
| 21 | 6507 | Intake valve (4 required) - LH |
| 22 | 9448 | Exhaust manifold gasket (2 required) - LH |
| 23 | 9431 | Exhaust manifold - LH |
| 24 | 9A462 | Exhaust manifold heat shield - LH |
