Wastegate Control Actuator RH: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the right front fender splash shield. Refer to: Fender Splash Shield .
- Disconnect the wastegate control actuator electrical connector.
-
- Note the correct orientation of the wastegate control actuator linkage, the long section of the linkage goes towards the actuator, and the curve to the outside away from the engine, to insure the correct installation.

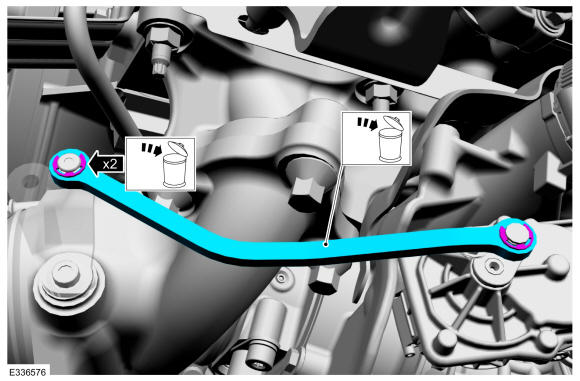

- Remove and discard the wastegate control actuator linkage e-clips, then remove and discard the linkage.

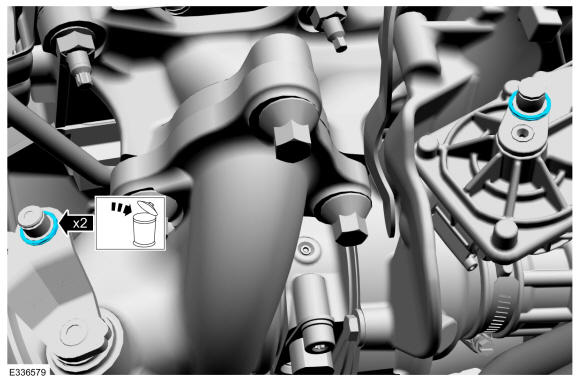

- Remove and discard the wastegate control actuator linkage wave washers.

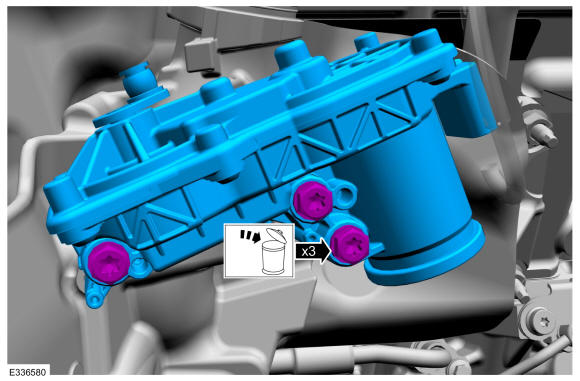

- Remove and discard the wastegate control actuator bolts, then remove the wastegate control actuator.
