Exhaust Gas Recirculation (EGR) Temperature Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Exhaust Gas Recirculation (EGR) Temperature Sensor Bank 1 Sensor 1

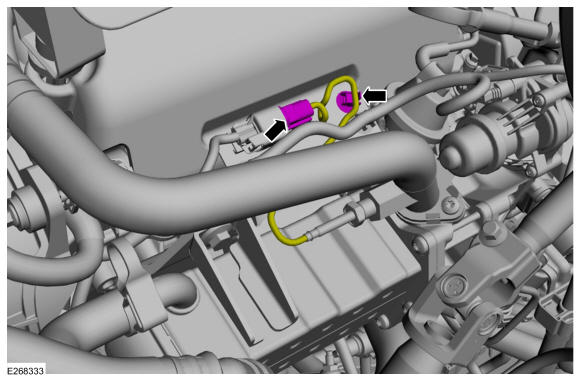

Disconnect the electrical connector and detach the retainer.

Courtesy of FORD MOTOR COMPANY

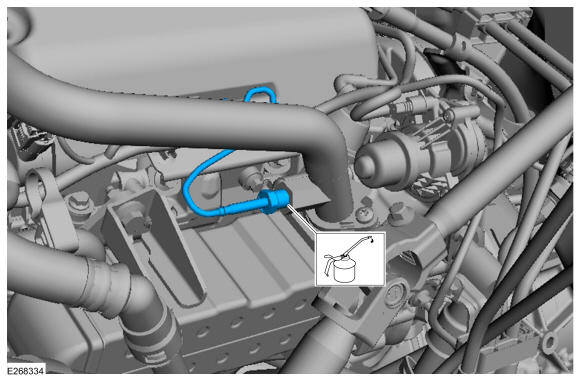

NOTE: Lubricate the EGRT sensor threads with penetrating and lock lubricant to assist in removal of the EGRT sensor

NOTE: Before installing the EGRT sensor apply a light coat of anti-seize lubricant to the threads of the EGRT sensor

Remove the EGRT sensor.

Material

: Motorcraft® Penetrating and Lock Lubricant / XL-1

Material

: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 32 lb.ft (44 Nm)

Courtesy of FORD MOTOR COMPANY

Exhaust Gas Recirculation (EGR) Temperature Sensor Bank 1 Sensor 2

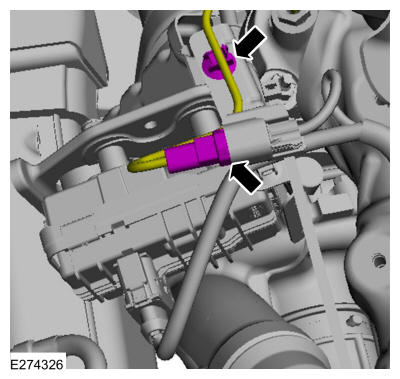

- Disconnect the EGR temperature sensor electrical connector.
- Detach the retainer.
Courtesy of FORD MOTOR COMPANY

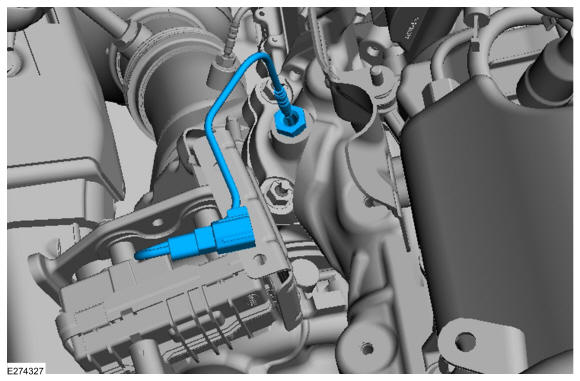

NOTE: Use 19 mm open end wrench to provide counter torque on EGRT sensor boss to avoid EGR tube damage.

NOTE: Lubricate the EGRT sensor threads with penetrating and lock lubricant to assist in removal of the EGRT sensor

NOTE: Before installing the EGRT sensor apply a light coat of anti-seize lubricant to the threads of the EGRT sensor

Remove the EGRT sensor.

Material

: Motorcraft® Penetrating and Lock Lubricant / XL-1

Material

: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Torque

: 32 lb.ft (44 Nm)

Courtesy of FORD MOTOR COMPANY
