Exhaust Gas Recirculation (EGR) Outlet Tube: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

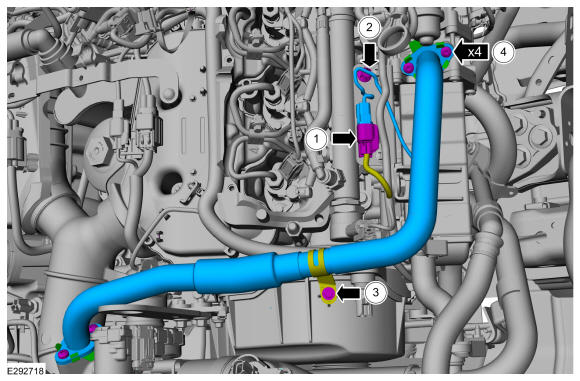

1. Using new gaskets, install the EGR outlet tube and the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Install the retainer in the timing belt cover.
  Torque

  : 31 lb.in (3.5 Nm)
3. Connect the wire retainers.
4. Connect the EGR temp sensor connector.
Courtesy of FORD MOTOR COMPANY

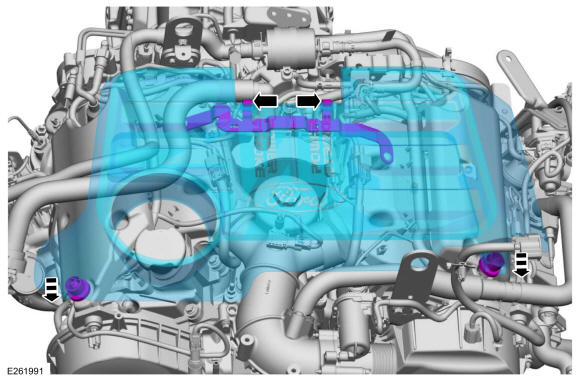

- Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
