Exhaust Gas Recirculation (EGR) Inlet Tube: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

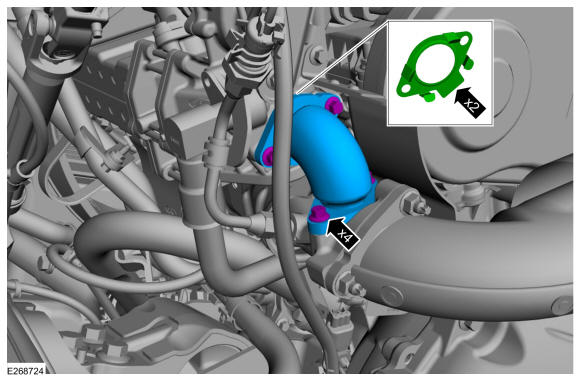

- Install the new gaskets.
- Install the EGR inlet tube and fasteners.
Torque
: 89 lb.in (10 Nm)
- Install the fender splash shield. Refer to: Fender Splash Shield .
