Crankcase Vent Oil Separator: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the engine air intake system components and clean, if necessary.
- Lubricate the crankcase vent oil separator with clean engine oil.
Material
: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

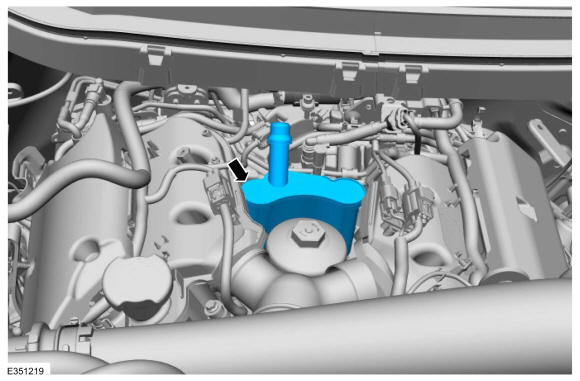

- Install the crankcase vent oil separator.

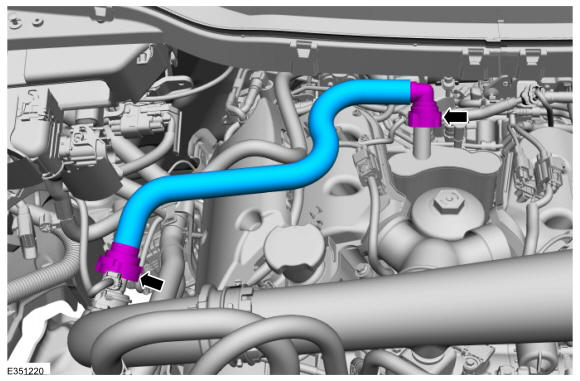

- Install the crankcase ventilation tube.

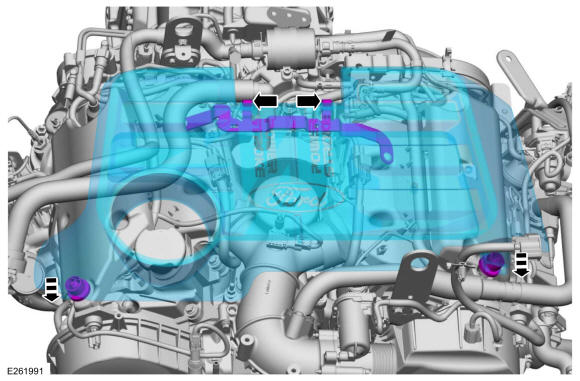

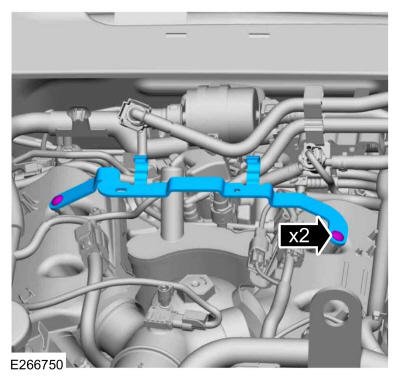

- Install the engine appearance cover bracket and the retainers.
Torque
: 44 lb.in (5 Nm)
- Install the engine appearance cover.
