Fuel Tank Draining

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	292-00004 Fuel Tanker 100 GPM

Draining

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Diesel Fuel System Health and Safety Precautions .
Disconnect the negative battery cable. Refer to: Battery Cables - 3.0L Power Stroke Diesel .
Fuel system pressure release. Refer to: Fuel System Pressure Release .
Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

NOTE: Only use the specified general equipment.

NOTE: Be prepared to collect escaping fluid

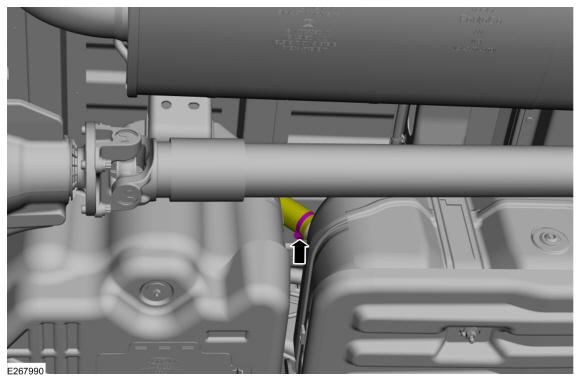

Loosen the clamp and disconnect the hose. Position the hose aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the open end of the hose is secured above the fluid level in the reservoir

NOTE: Use suitable paper absorb any escaping fluid

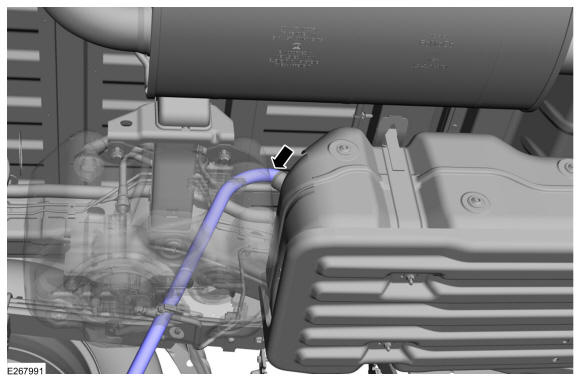

Insert the hose from the fuel storage tanker and siphon the fuel through the hose.

Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

Courtesy of FORD MOTOR COMPANY

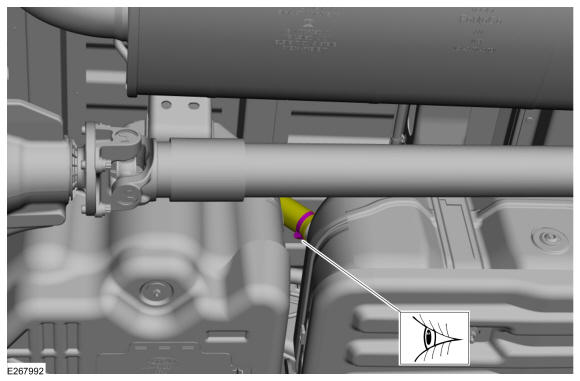

NOTE: Make sure that the clamp is installed to the same orientation as when removed.

Courtesy of FORD MOTOR COMPANY
