Throttle Body: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the charge air cooler outlet pipe. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
- Disconnect the throttle body electrical connector.

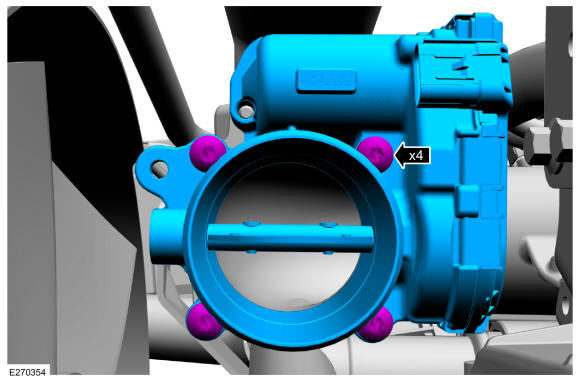

- Remove the throttle body bolts and then remove the throttle body.
