Fuel Injection Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

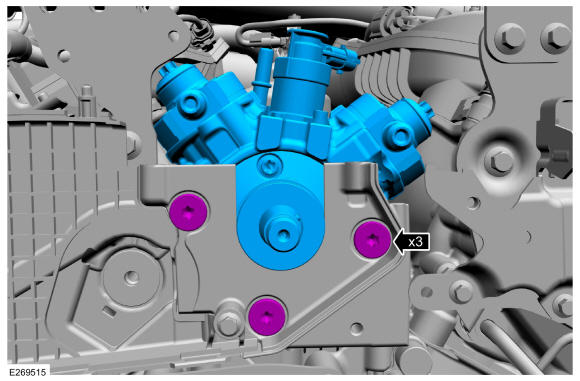

  1. Install the fuel injection pump, then install and tighten the bolts.

    Torque: 17 lb.ft (23 Nm)

    GFD557314Courtesy of FORD MOTOR COMPANY

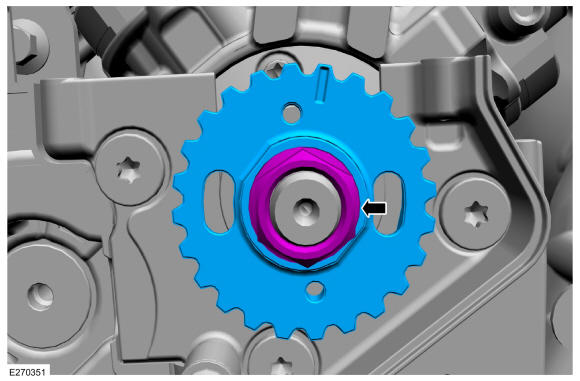

  2. Install the fuel injection pump sprocket and nut.
    GFD557315Courtesy of FORD MOTOR COMPANY

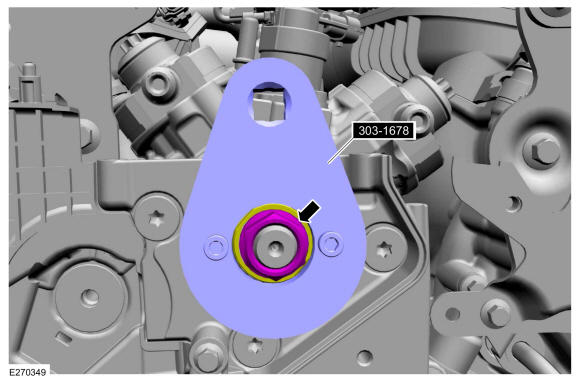

  3. Using the special tool, hold the fuel injection pump sprocket, then tighten the nut. Remove the special tool. Use Special Service Tool: 303-1678 Remover, Fuel Pump Pulley Holding Tool.

    Torque: 37 lb.ft (50 Nm)

    GFD557312Courtesy of FORD MOTOR COMPANY

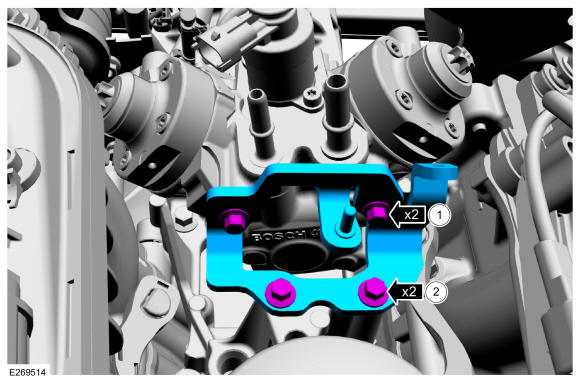

  4. Install the fuel injection pump bracket, then install and tighten the bolts.

    Torque: 1. Tighten to: : 89 lb.in (10 Nm) 2. Tighten to: : 106 lb.in (12 Nm)

    GFD557311Courtesy of FORD MOTOR COMPANY

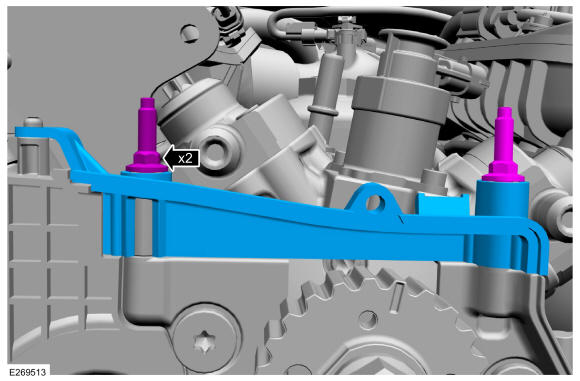

  5. Install the accessory drive cover, then install and tighten the stud bolts.

    Torque: 89 lb.in (10 Nm)

    GFD557310Courtesy of FORD MOTOR COMPANY

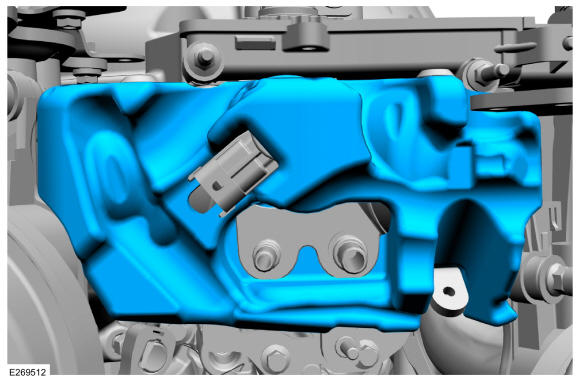

  6. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

    Install the fuel injection pump noise insulator.

    GFD557309Courtesy of FORD MOTOR COMPANY

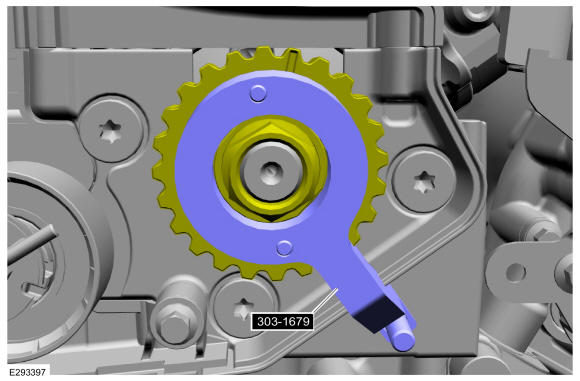

    1. Install the special tool to correctly time the fuel injection pump. Install Special Service Tool: 303-1679 Timing Tool, Fuel Pump Rear Access.
    2. Remove the special tool. Remove Special Service Tool: 303-1679 Timing Tool, Fuel Pump Rear Access.
    GFD557316Courtesy of FORD MOTOR COMPANY
  7. Install the rear end accessory drive belt. Refer to: Rear End Accessory Drive (READ) .

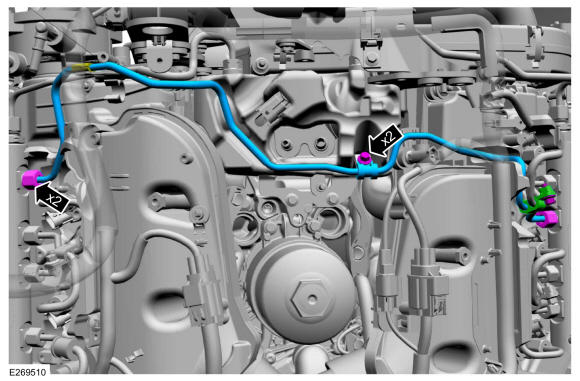

  8. NOTE: Make sure that a new fuel rail balance tube is installed.

    Install the new fuel rail balance tube, the clamp and the bolts. Tighten the fuel rail balance tube fittings at the fuel rails, and at the bolts, finger tight at this stage.

    GFD557317Courtesy of FORD MOTOR COMPANY

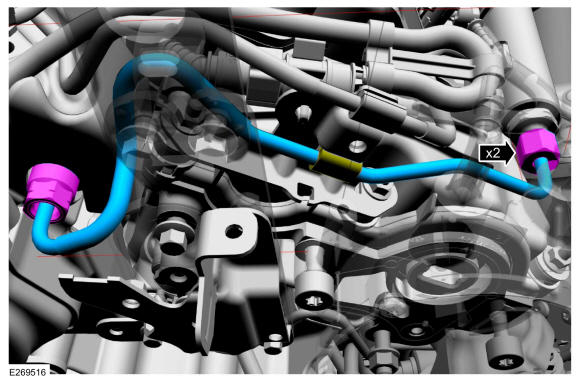

  9. NOTE: Make sure that a new fuel rail supply tube is installed.

    Install the new fuel rail supply tube then, tighten the fuel supply tube fittings finger tight at this stage.

    GFD557318Courtesy of FORD MOTOR COMPANY

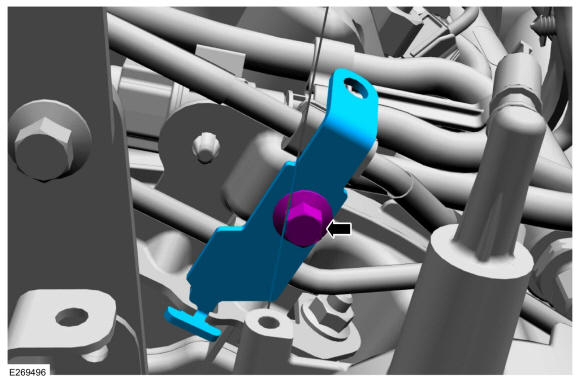

  10. Install the fuel tube bracket, then install and tighten bolt finger tight at this stage.
    GFD557297Courtesy of FORD MOTOR COMPANY

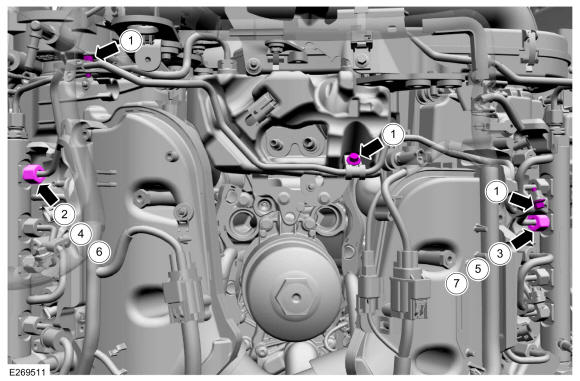

  11. Tighten in the following 7 stages.

    Torque:Stage 1: Tighten the bolts to: : 89 lb.in (10 Nm); Stage 2: Tighten the right fuel rail balance tube fitting to: : 89 lb.in (10 Nm); Stage 3: Tighten the left fuel rail balance tube fitting to: : 89 lb.in (10 Nm); Stage 4: Tighten the right fuel rail balance tube fitting to: : 142 lb.in (16 Nm); Stage 5: Tighten the left fuel rail balance tube fitting to: : 142 lb.in (16 Nm); Stage 6: Tighten the right fuel rail balance tube fitting an additional: : 50 deg.; Stage 7: Tighten the left fuel rail balance tube fitting an additional: : 50 deg.

    GFD557319Courtesy of FORD MOTOR COMPANY

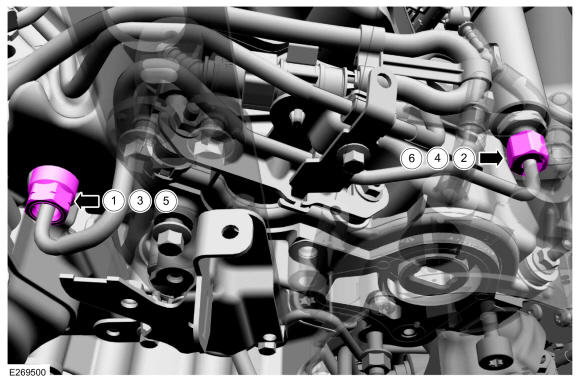

  12. Tighten in the following 6 stages.

    Torque:Stage 1: Tighten the fuel injection pump fitting to: : 89 lb.in (10 Nm); Stage 2: Tighten the fuel rail fitting to: : 89 lb.in (10 Nm); Stage 3: Tighten the fuel injection pump fitting to: : 142 lb.in (16 Nm); Stage 4: Tighten the fuel rail fitting to: : 142 lb.in (16 Nm); Stage 5: Tighten the fuel injection pump fitting an additional: : 50 deg.; Stage 6: Tighten the fuel rail fitting an additional: : 50 deg.

    GFD557320Courtesy of FORD MOTOR COMPANY

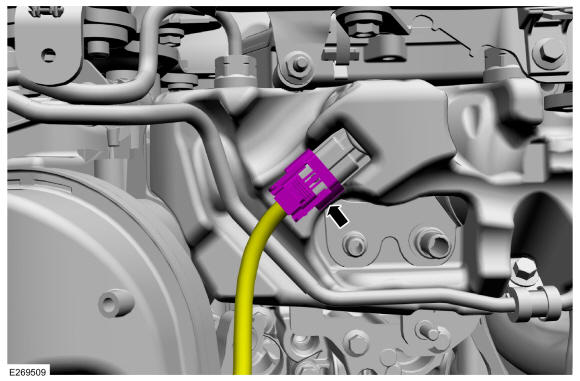

  13. Connect the fuel injection pump electrical connector.
    GFD557307Courtesy of FORD MOTOR COMPANY

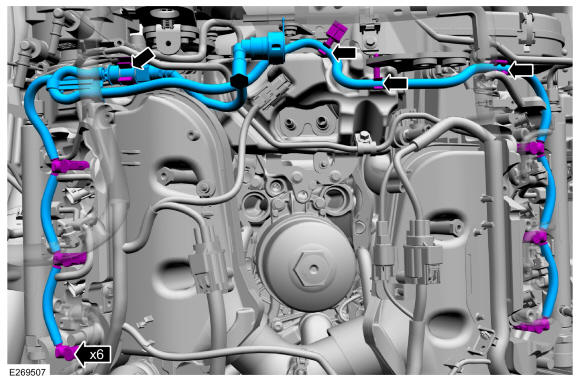

    1. Install the fuel injector fuel return line, then attach the fuel injector fuel return line retainers.
    2. NOTE: The use of long needle nose pliers or another commercially available tool may aid in the connecting of the fuel injector fuel return line fittings.

      Connect the fuel injector fuel return line fittings at the fuel injectors.

    GFD557306Courtesy of FORD MOTOR COMPANY

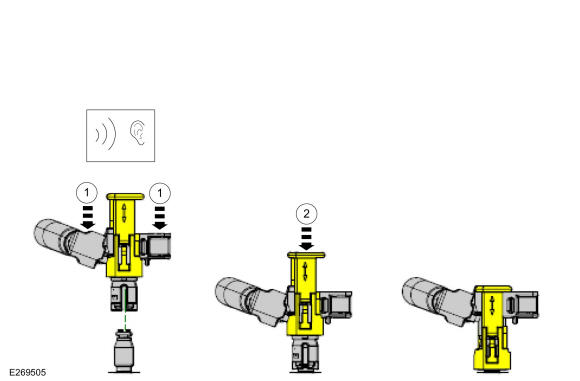

    1. Align the center axis of fuel injector fuel return line fitting on the fuel injector fuel injector spigot. Press down on the fuel injector fuel return line fittings in the 2 indicated locations, until they are fully seated with an audible click and a hard stop.
    2. Push down on the center of the fuel injector fuel return line fitting until it is fully seated. This is the secondary latch.
    GFD557321Courtesy of FORD MOTOR COMPANY

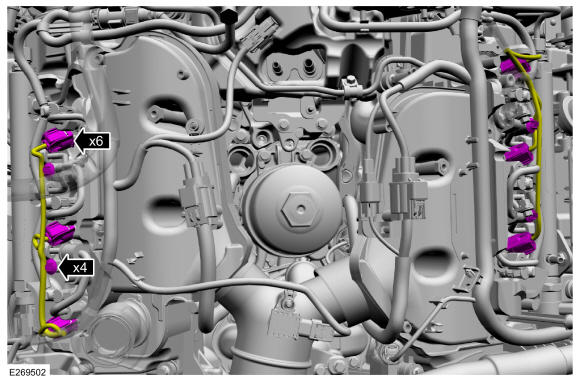

  14. Attach the wiring harness retainers, then connect the fuel injector electrical connectors.
    GFD557304Courtesy of FORD MOTOR COMPANY

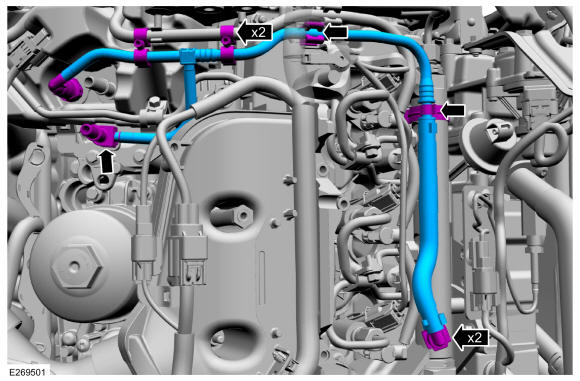

  15. NOTE: Make sure that a new fuel return tube is installed.

    Install the new fuel return tube, connect the quick release couplings, attach the fitting to the stud, then attach the fuel return tube retainers. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).

    GFD557322Courtesy of FORD MOTOR COMPANY
  16. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

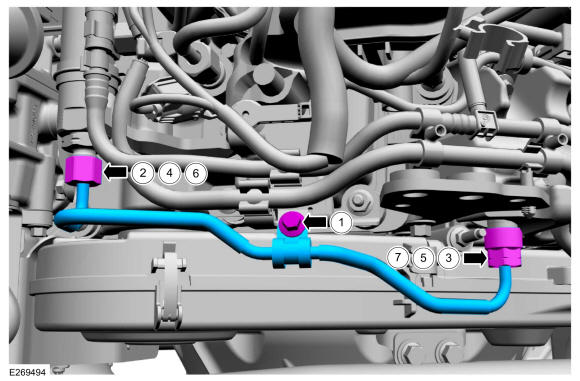

  17. NOTE: Make sure that a new fuel rail supply tube is installed.

    Install the new fuel rail supply tube, then install the bolt. Tighten the fuel supply tube fittings and the bolt finger tight at this stage. Then tighten in the following 7 stages.

    Torque:Stage 1: Tighten the bolt to: : 89 lb.in (10 Nm); Stage 2: Tighten the fuel rail fitting to: : 89 lb.in (10 Nm); Stage 3: Tighten the fuel injection pump fitting to: : 89 lb.in (10 Nm); Stage 4: Tighten the fuel rail fitting to: : 142 lb.in (16 Nm); Stage 5: Tighten the fuel injection pump fitting to: : 142 lb.in (16 Nm); Stage 6: Tighten the fuel rail fitting an additional: : 50 deg.; Stage 7: Tighten the fuel injection pump fitting an additional: : 50 deg.

    GFD557323Courtesy of FORD MOTOR COMPANY

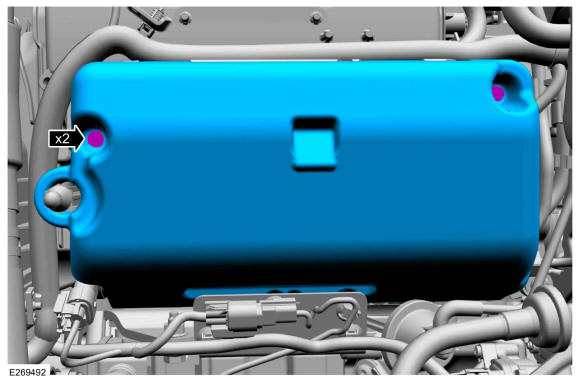

  18. Install the left insulator.
    GFD557300Courtesy of FORD MOTOR COMPANY

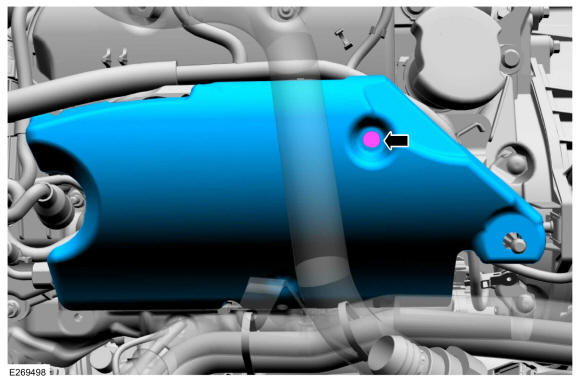

  19. Install the right insulator.
    GFD557299Courtesy of FORD MOTOR COMPANY

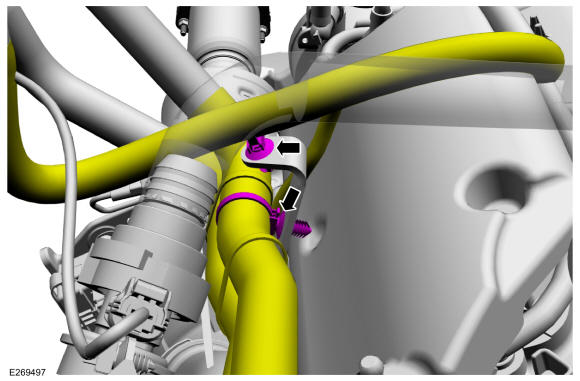

  20. Attach the wire harness and the coolant hose retainers.
    GFD557298Courtesy of FORD MOTOR COMPANY

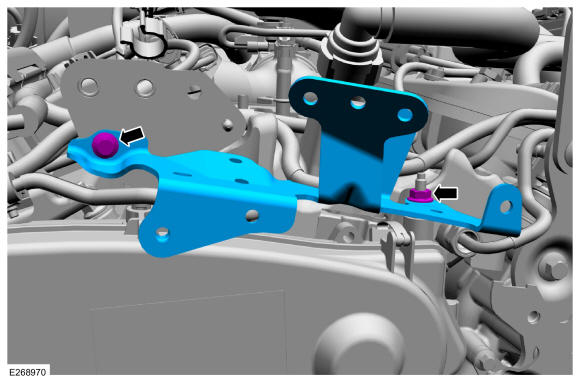

  21. Install the bracket, then install and tighten retainers.

    Torque: 89 lb.in (10 Nm)

    GFD557296Courtesy of FORD MOTOR COMPANY

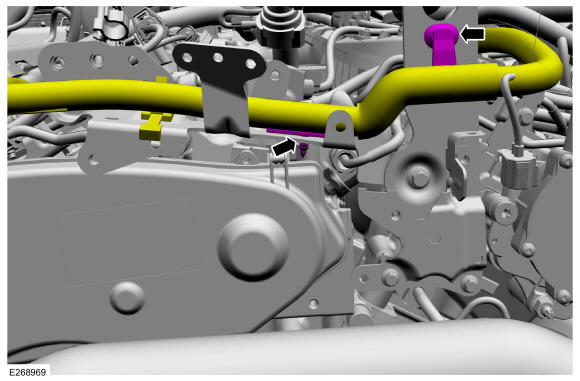

  22. Install the wire harness, then attach the wire harness retainers.
    GFD557295Courtesy of FORD MOTOR COMPANY

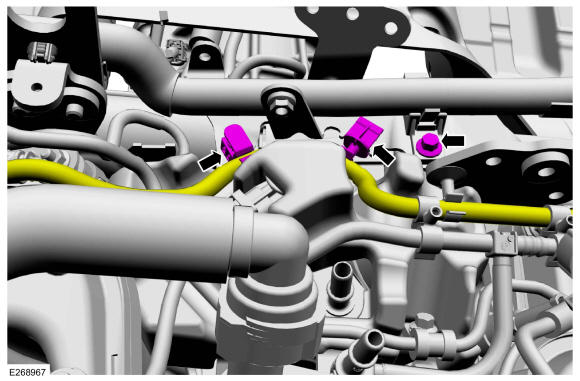

  23. Attach the fuel injector fuel return line retainers, then install and tighten the wiring harness bolt.

    Torque: 89 lb.in (10 Nm)

    GFD557294Courtesy of FORD MOTOR COMPANY

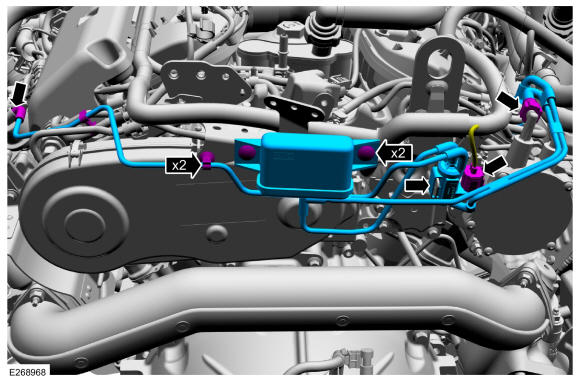

    1. Install the vacuum tube assembly, then attach the vacuum reservoir retainers.
    2. Attach the valve to the bracket.
    3. Connect the electrical connector, then connect the quick release coupling. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).
    4. Attach the vacuum tube retainers, then connect the vacuum hose at the EGR.
    GFD557293Courtesy of FORD MOTOR COMPANY

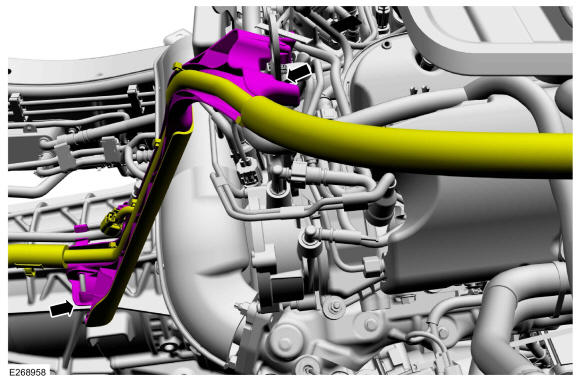

  24. Attach the wiring harness bracket to the rear engine lifting eye and to the transmission case.
    GFD557292Courtesy of FORD MOTOR COMPANY

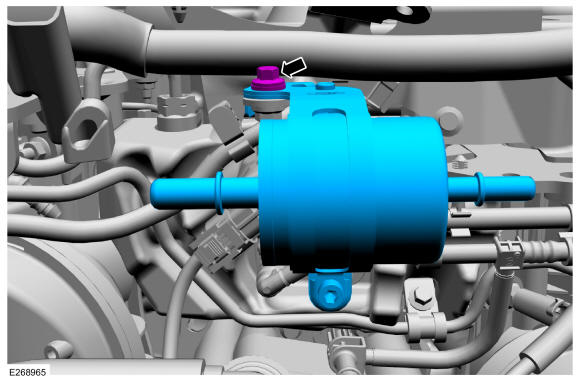

  25. Install the secondary fuel filter, then install and tighten the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD557291Courtesy of FORD MOTOR COMPANY

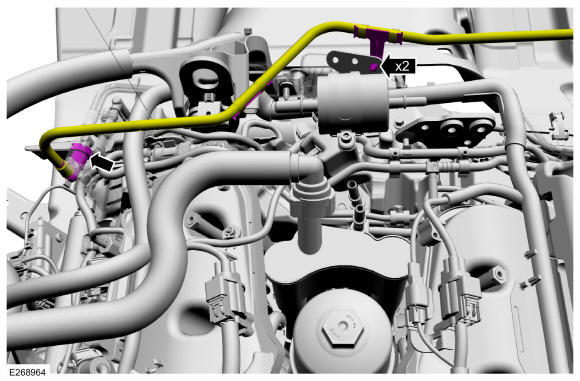

    1. If equipped, attach the vacuum tube retainers.
    2. If equipped, connect the quick release coupling. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).
    GFD557290Courtesy of FORD MOTOR COMPANY

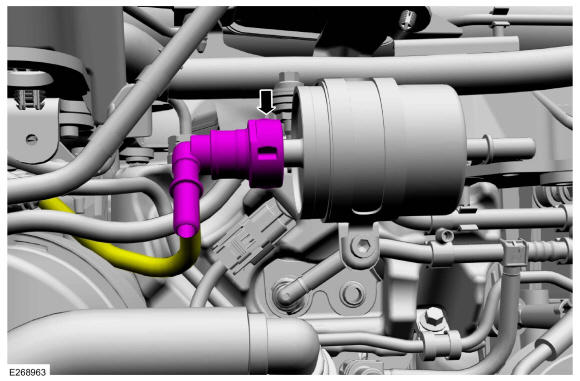

  26. Connect the fuel tube assembly quick release coupling. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).
    GFD557289Courtesy of FORD MOTOR COMPANY

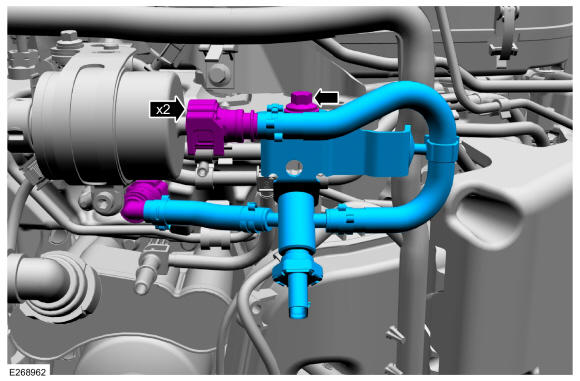

    1. Install the fuel supply tube assembly, then install and tighten the bolt.

      Torque: 17 lb.ft (23 Nm)

    2. Connect the fuel supply tube assembly quick release couplings. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).
    GFD557288Courtesy of FORD MOTOR COMPANY

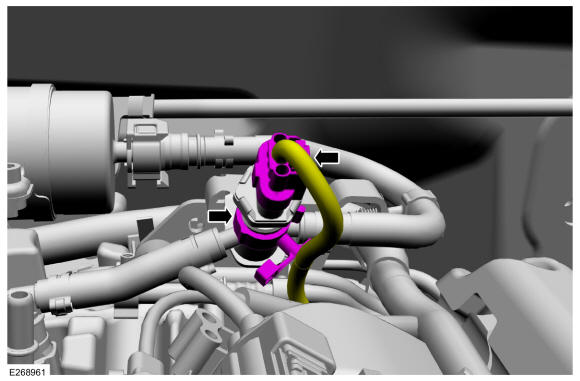

  27. Connect the fuel supply tube assembly electrical connector, then attach the wire retainer.
    GFD557287Courtesy of FORD MOTOR COMPANY

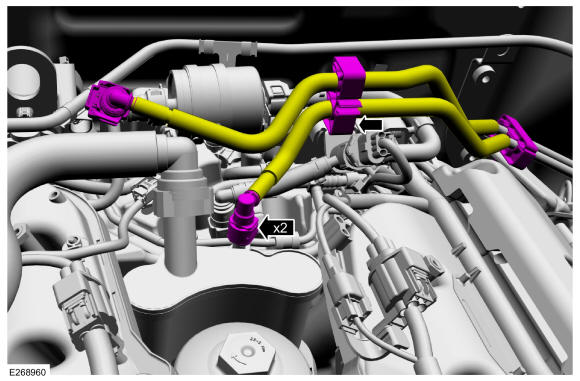

  28. Connect the quick release couplings, then attach the fuel tube retainers. Refer to: Quick Release Coupling (310-00 Fuel System - General Information - 3.0L Power Stroke Diesel).
    GFD557286Courtesy of FORD MOTOR COMPANY
  29. Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
  30. Bleed the fuel system. Refer to: Fuel System Bleeding .

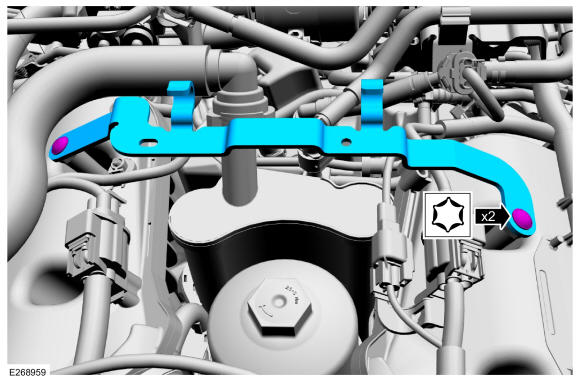

  31. Install the engine appearance cover bracket, then install and tighten the retainers.

    Torque: 44 lb.in (5 Nm)

    GFD557285Courtesy of FORD MOTOR COMPANY

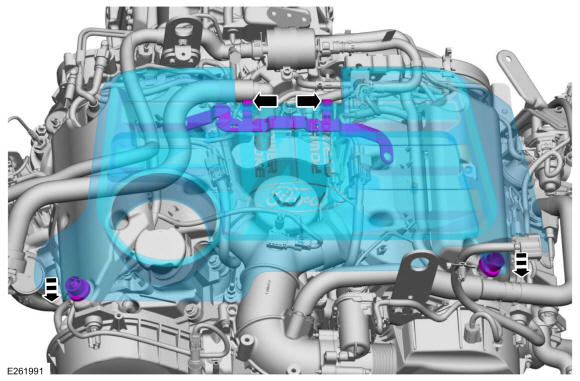

  32. Install the engine appearance cover.
GFD555956Courtesy of FORD MOTOR COMPANY
