High-Pressure Fuel Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only rotate the crankshaft clockwise or damage to the engine may occur.

NOTE: The drive lobe for the high-pressure fuel pump must be at bottom dead center for the high-pressure fuel pump installation.

With the help of an assistant, using the crankshaft pulley bolt, turn the crankshaft clockwise until the high-pressure fuel pump drive lobe is at bottom dead center.

Courtesy of FORD MOTOR COMPANY
Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and all of the roller tappet. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: The roller tappets roller goes down towards the camshaft.

NOTE: Align the notch on the high-pressure fuel pump tappet with the groove in the high-pressure fuel pump drive unit bore.

Install the high-pressure fuel pump roller tappet.

Courtesy of FORD MOTOR COMPANY
Install a new high-pressure fuel pump O-ring seal. Lubricate with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

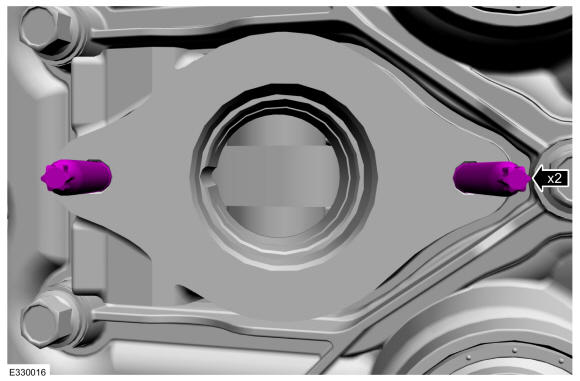

If removed, install and tighten the high-pressure fuel pump mounting studs.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel pump, then install the mounting nuts finger tight. Alternately tighten each high-pressure fuel pump nut one complete revolution until seated. Tighten the fuel high-pressure fuel pump nuts in the following 2 stages.
Torque

:Stage 1: Tighten to : 89 lb.in (10 Nm)

Stage 2: Tighten an additional : 30°

Courtesy of FORD MOTOR COMPANY

NOTE: In stage 7, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 37 lb.ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.

NOTE: Do not use oil on the threads.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in illustration.

Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that a new high-pressure fuel tube is installed.

Install the high-pressure fuel tube and retainers, tighten the high-pressure fuel tube flare nuts and retainers finger tight.

Torque

:Stage 1: Tighten the upper high-pressure fuel tube bolt to : 89 lb.in (10 Nm)

Stage 2: Tighten the upper high-pressure fuel tube bolt an additional : 30°

Stage 3: Tighten the lower high-pressure fuel tube bolt to : 89 lb.in (10 Nm)

Stage 4: Tighten the lower high-pressure fuel tube bolt an additional : 30°

Stage 5: Tighten the high-pressure fuel tube flare nuts to : 71 lb.in (8 Nm)

Stage 6: Tighten the high-pressure fuel tube flare nuts to : 89 lb.in (10 Nm)

Stage 7: Tighten the high-pressure fuel tube flare nuts an additional : 25°

Courtesy of FORD MOTOR COMPANY

Connect the electrical connector, then attach the wiring harness retainer,

Courtesy of FORD MOTOR COMPANY
Install the high-pressure fuel line shield, then install and tighten the high-pressure fuel line shield retainers.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainer to high-pressure fuel line shield.

Courtesy of FORD MOTOR COMPANY

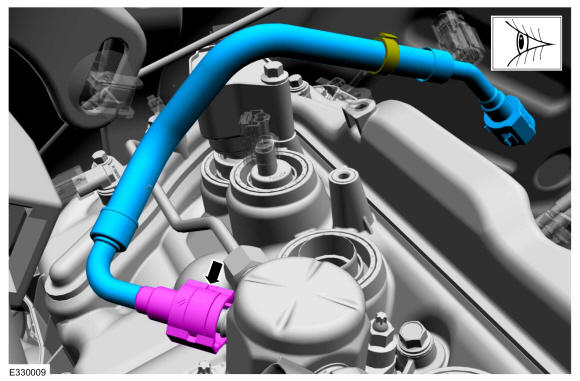

NOTE: The high-pressure fuel pump supply tube must be installed with the Oetiker® clamp end installed to the port fuel rail; if it is installed backwards a check valve will prevent the engine from running properly.

Connect the high-pressure fuel pump fuel feed quick release coupling. Follow the directions for the quick release coupling type 2. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.

Install the fuel injection pump noise insulator, then engage the retainer.

Courtesy of FORD MOTOR COMPANY
Connect the high-pressure fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.

Courtesy of FORD MOTOR COMPANY
NOTE: Ensure that the ignition coil-on-plug is fully seated on the spark plug by pushing down on the boot end until it stops.

Install the ignition coil-on-plugs, then install and tighten the bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the intake manifold. Refer to: Intake Manifold .
Pressurize the fuel system. Refer to: Fuel System Pressure Release .
