Knock Sensor (KS): Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Removal steps in this procedure may contain installation details.
Remove the intake manifold. REFER to: Intake Manifold .
-
NOTE: Note the position of the components before removal.

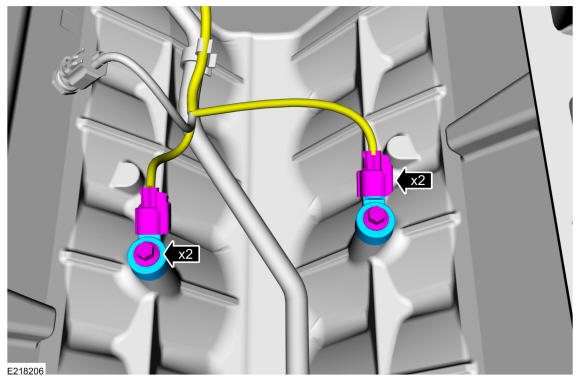

Disconnect the electrical connector. Remove the KS.
Torque
: 177 lb.in (20 Nm)
