Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the accessory drive belt. REFER to: Accessory Drive Belt .
Disconnect the A/C compressor electrical connector. Remove the bolts and position the A/C compressor aside.

Courtesy of FORD MOTOR COMPANY

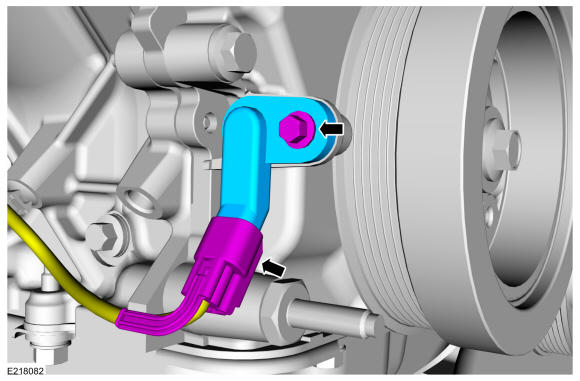

- Disconnect the CKP sensor electrical connector.
- Remove the bolt and the CKP sensor.
  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
