Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

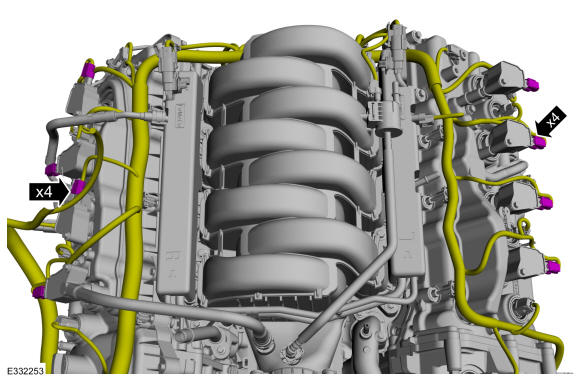

Disconnect the ignition coil-on-plug electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

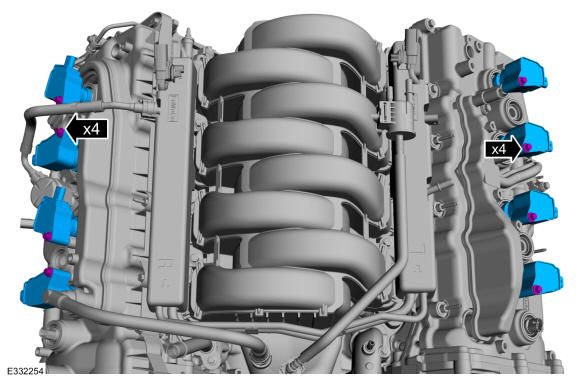

1. Remove the ignition coil-on-plug retaining bolts.
2. Remove the ignition coil-on-plugs.

Courtesy of FORD MOTOR COMPANY
