System Diagram
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

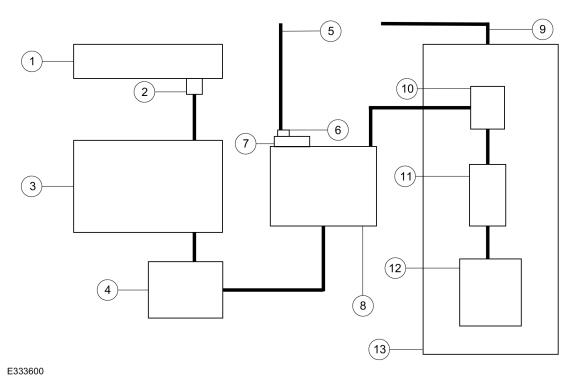

| Item | Description |
|---|---|
| 1 | RH valve cover |
| 2 | PCV valve |
| 3 | Intake manifold |
| 4 | EVAP canister purge valve |
| 5 | Fresh air hose |
| 6 | EVAP canister vent solenoid |
| 7 | EVAP canister ventilation filter |
| 8 | EVAP canister |
| 9 | Fuel tank filler pipe |
| 10 | EVAP blocking valve |
| 11 | Fuel Tank Pressure (FTP) sensor and tube |
| 12 | Fuel pump and sender assembly |
