Thermostat - Vehicles With: Dual Generators: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
-
NOTE: Cover the accessory drive belts to prevent coolant contamination of the belts.
Completely cover the accessory drive belts with waterproof plastic.
-
NOTE: During installation, make sure the coolant inlet connection is fully seated on the thermostat housing before tightening the bolts.
Remove the bolts and detach the coolant inlet connector.
Torque
: 89 lb.in (10 Nm)
-

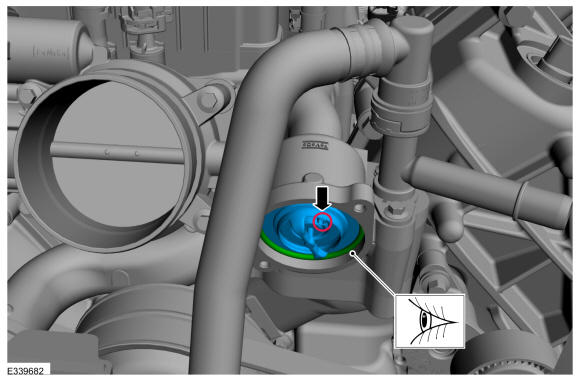

NOTE: During installation verify the thermostat vent hole is at the 11 o'clock position.
Remove the thermostat. Inspect the O-ring seal and replace if necessary.
