Coolant Pump: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

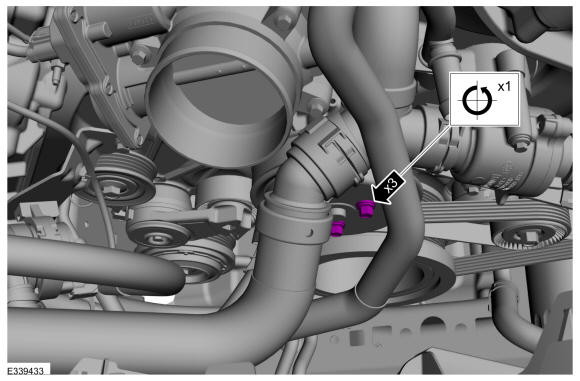

- Remove the bolts and position the degas bottle aside.
- Loosen the coolant pump pulley bolts.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
-
NOTE: Cover the A/C compressor belt to prevent coolant contamination of the belt.
Completely cover the A/C compressor belt with waterproof plastic.
- Remove the thermostat housing. Refer to: Thermostat Housing .
- Remove the bolts and the coolant pump pulley.
-
- Follow the directions to release quick release coupling type 3. Disconnect the coolant tube. Refer to: Quick Release Coupling .
- Release the clamp and disconnect the lower degas bottle hose from the heater outlet tube.
Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolts and the coolant pump.
- Remove and discard the O-ring seal.
-
NOTE: This step is only necessary when installing a new component.
- Remove the bolt and the heater outlet tube.
- Remove and discard the O-ring seal.
