Coolant Pump - Vehicles With: Dual Generators: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

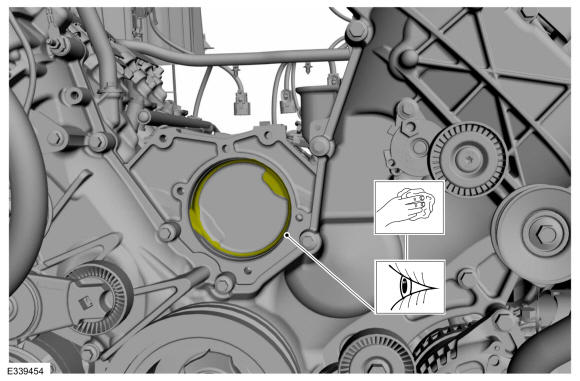

- Clean and inspect the O-ring seal surface for debris or damage.

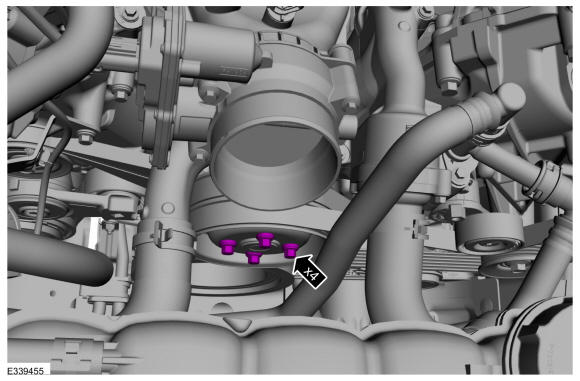

- Install the coolant pump and tighten the bolts.
Torque
: 177 lb.in (20 Nm)
- Position the coolant pump pulley and install the bolts finger tight.
- Install the thermostat housing. Refer to: Thermostat Housing - Vehicles With: Dual Generators .
- Remove the plastic from the A/C compressor belt.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Tighten the coolant pump pulley bolts.
Torque
: 18 lb.ft (25 Nm)
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
