Block Heater: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
All Vehicles
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
.
4X2 Vehicles

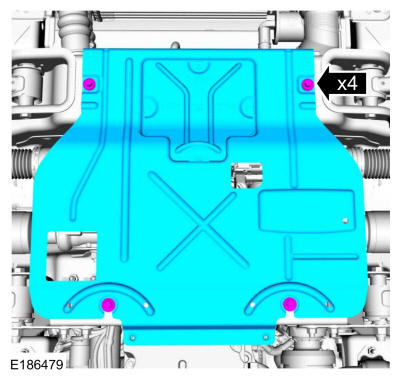

- If equipped, remove the bolts and the skid plate.
Torque
: 30 lb.ft (40 Nm)

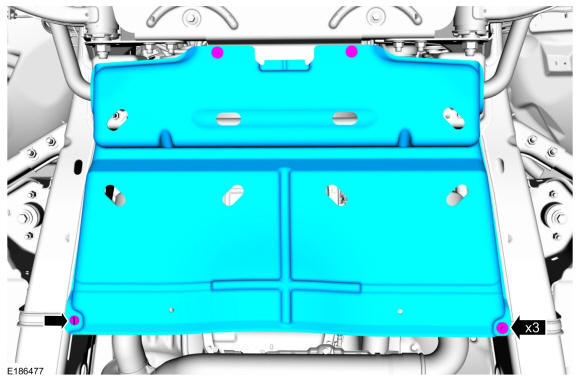

- If equipped, remove the fasteners and the underbody shield.
Torque
: 30 lb.ft (40 Nm)
- If equipped, remove the fasteners and the underbody shield.
Torque
: 71 lb.in (8 Nm)
- If equipped, remove the bolts and the skid plate.
Torque
: 30 lb.ft (40 Nm)
4X4 Vehicles
- Remove the generator. Refer to: Generator - 5.0L 32V Ti-VCT
.
All Vehicles
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.

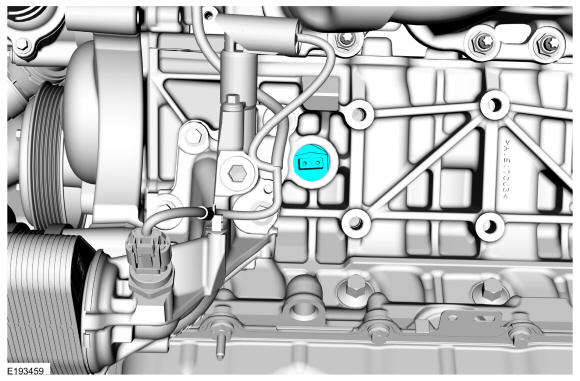

Disconnect the block heater electrical connector.

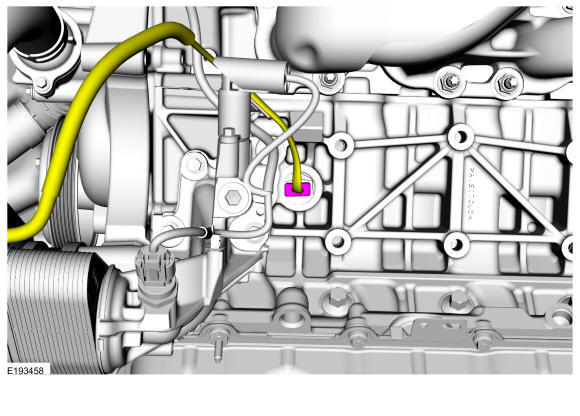

- Remove the block heater.
Torque
: 41 lb.ft (55 Nm)
