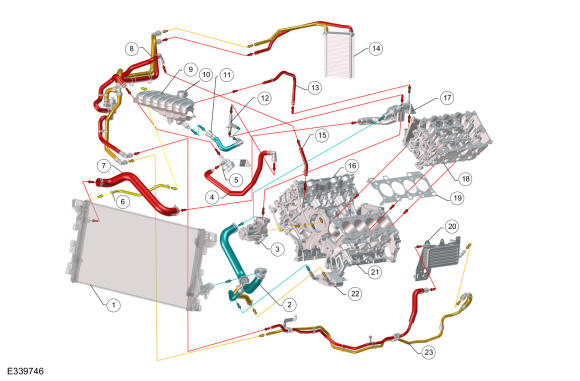

Vehicle with sport crew cab
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose and clamp assembly |
| 3 | Coolant pump |
| 4 | Heater outlet tube |
| 5 | Cabin heater coolant pump |
| 6 | Radiator-to-degas bottle hose |
| 7 | Upper radiator hose |
| 8 | Heater hose assembly |
| 9 | Degas bottle |
| 10 | Pressure relief cap |
| 11 | Degas bottle-to-engine hose |
| 12 | Coolant outlet connector |
| 13 | Degas bottle-to-engine hose |
| 14 | Heater core |
| 15 | Heater inlet tube |
| 16 | Cylinder head RH |
| 17 | Thermostst housing |
| 18 | Cylinder head LH |
| 19 | Cylinder head gasket |
| 20 | Transmission oil cooler |
| 21 | Cylinder block |
| 22 | Engine oil cooler |
| 23 | Transmission fluid cooler outlet tube |
