Variable Camshaft Timing (VCT) Unit: Installation

Left hand units

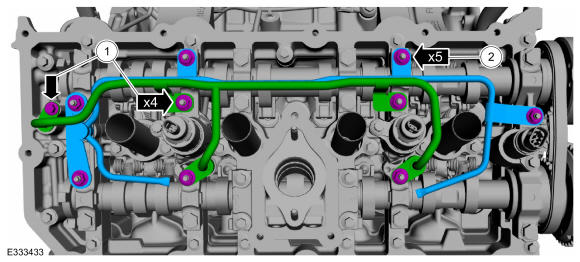

1. NOTE: The oil tubes must be removed to access the flats on the camshaft that will be used to tighten the VCT assembly bolts.
   • Loosen the fasteners and remove the oil tube.
   • Loosen the fasteners and remove the oil tube.

   Courtesy of FORD MOTOR COMPANY

2. Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
   • The timing mark on the intake VCT assembly should align with the colored link.
   • The timing mark on the exhaust VCT assembly should align with the colored link.

   Courtesy of FORD MOTOR COMPANY

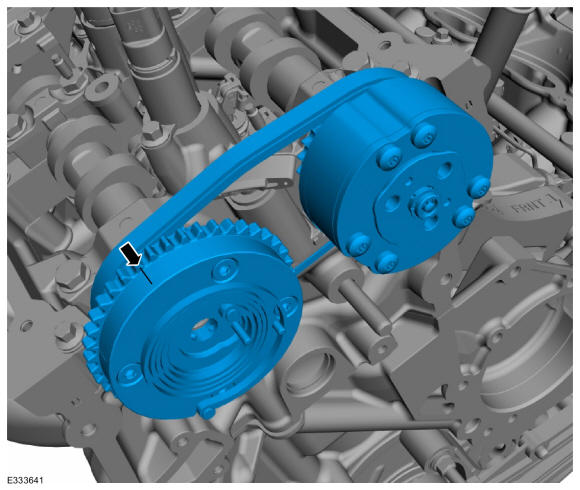

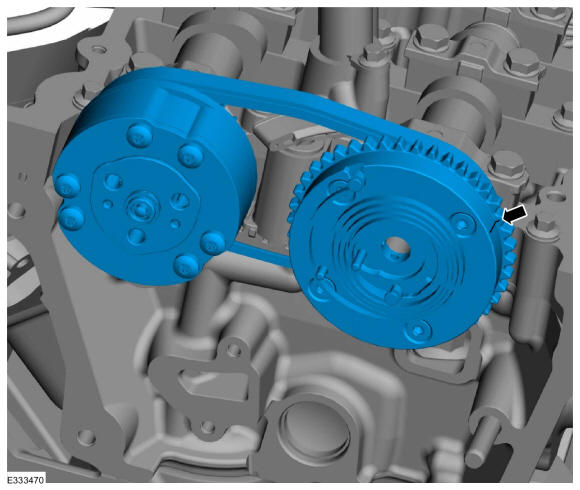

3. Install the VCT assemblies and the secondary timing chain onto the camshafts. The timing mark on the exhaust VCT assembly should be in the position shown.

   Courtesy of FORD MOTOR COMPANY

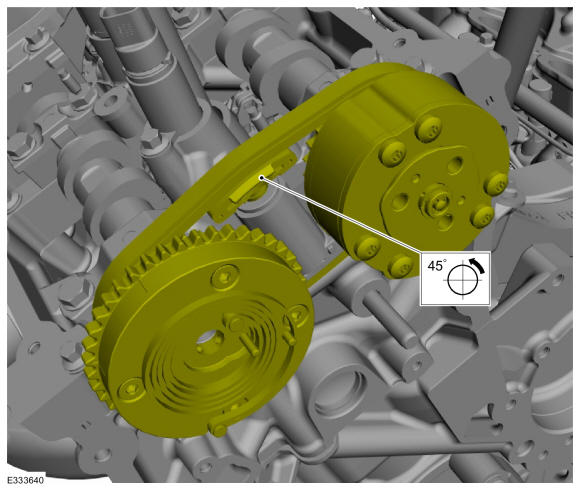

4. NOTE: It may be necessary to rotate the exhaust camshaft slightly (using a wrench on the flats of the camshaft) to seat the VCT assemblies onto the camshafts.

   Rotate the secondary timing chain tensioner clockwise 45 degrees so the ramped area is facing forward and fully seat the VCT assemblies onto the camshafts.

   • If the secondary timing chain is not centered over the tensioner, reposition the VCT assemblies until they are fully seated on the camshafts.

   Courtesy of FORD MOTOR COMPANY

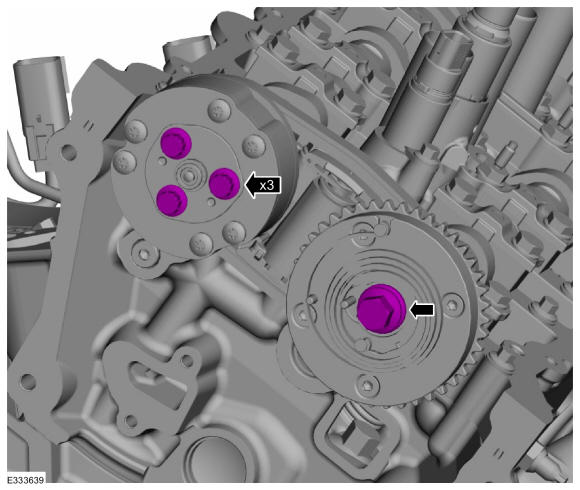

5. NOTE: Do not tighten the bolts at this time.
   1. Install a new exhaust VCT assembly bolt.
   2. Install new intake VCT assembly bolts.

   Courtesy of FORD MOTOR COMPANY

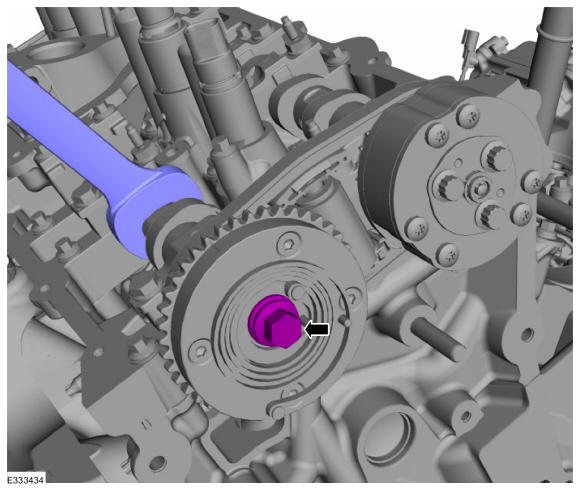

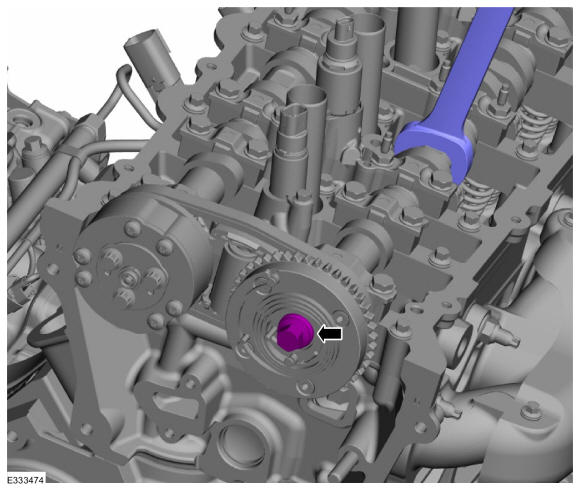

6. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolt.

   Tighten the exhaust VCT assembly bolt.

   Torque:Stage 1: 30 lb.ft (40 Nm)

   Stage 2: Loosen: 360 deg.

   Stage 3: 20 lb.ft (27 Nm)

   Stage 4: 150 deg.

   Courtesy of FORD MOTOR COMPANY

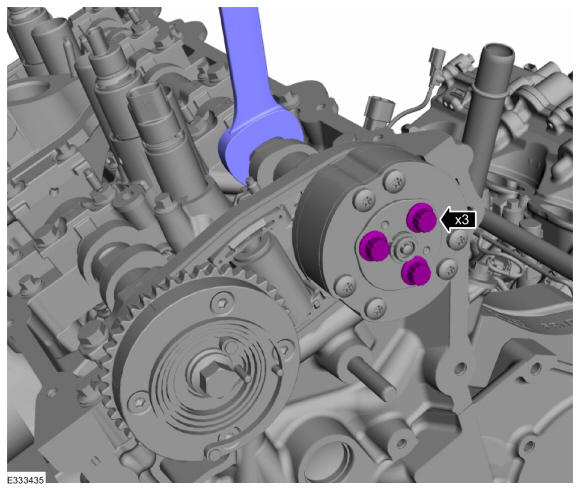

7. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.

   Tighten the intake VCT assembly bolts.

   Torque:Stage 1: 133 lb.in (15 Nm)

   Stage 2: 90 deg.

   Courtesy of FORD MOTOR COMPANY

8. Inspect the O-ring seal. If damaged, discard the oil tube assembly.

   Courtesy of FORD MOTOR COMPANY

9. Apply clean engine oil to the O-ring seal and oil tube.

   Courtesy of FORD MOTOR COMPANY

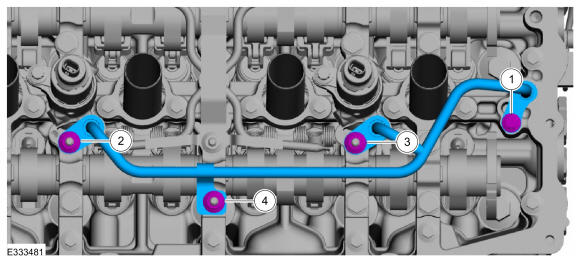

10. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

11. Inspect the seals. If damaged, discard the oil tube assembly.

    Courtesy of FORD MOTOR COMPANY

12. Apply clean engine oil to the seals and oil tube.

    Courtesy of FORD MOTOR COMPANY

13. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

14. If equipped with dual generators, install the LH valve cover. Refer to: Valve Cover LH - Vehicles With: Dual Generators .
15. Install the LH timing chain. Refer to: Timing Chain .

    Right hand units

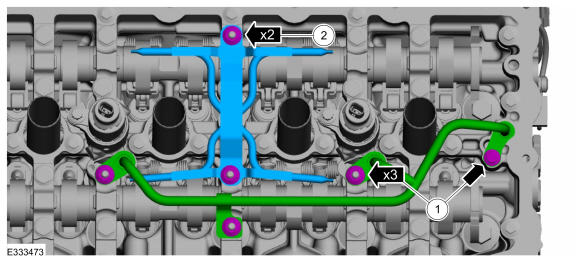

16. NOTE: The oil tubes must be removed to access the flats on the camshaft that will be used to tighten the VCT assembly bolts.
    • Loosen the fasteners and remove the oil tube.
    • Loosen the fasteners and remove the oil tube.

    Courtesy of FORD MOTOR COMPANY

17. Position the secondary timing chain onto the VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
    • The timing mark on the intake VCT assembly should align with the colored link.
    • The timing mark on the exhaust VCT assembly should align with the colored link.

    Courtesy of FORD MOTOR COMPANY

18. Install the VCT assemblies and the secondary timing chain onto the camshafts. The timing mark on the exhaust VCT assembly should be in the position shown.

    Courtesy of FORD MOTOR COMPANY

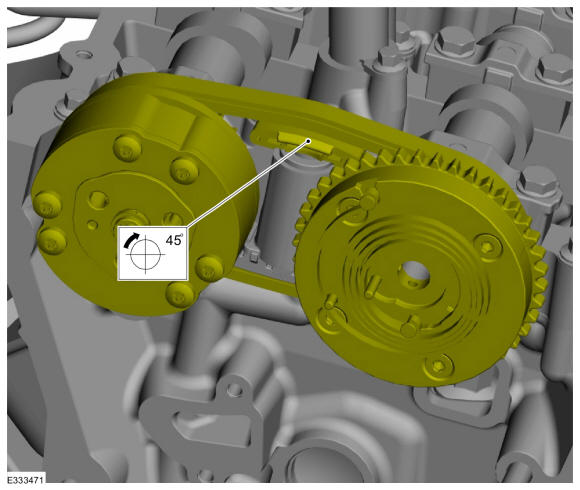

19. NOTE: It may be necessary to rotate the exhaust camshaft slightly (using a wrench on the flats of the camshaft) to seat the VCT assemblies onto the camshafts.

    Rotate the secondary timing chain tensioner counterclockwise 45 degrees so the ramped area is facing forward and fully seat the VCT assemblies onto the camshafts.

    • If the secondary timing chain is not centered over the tensioner, reposition the VCT assemblies until they are fully seated on the camshafts.

    Courtesy of FORD MOTOR COMPANY

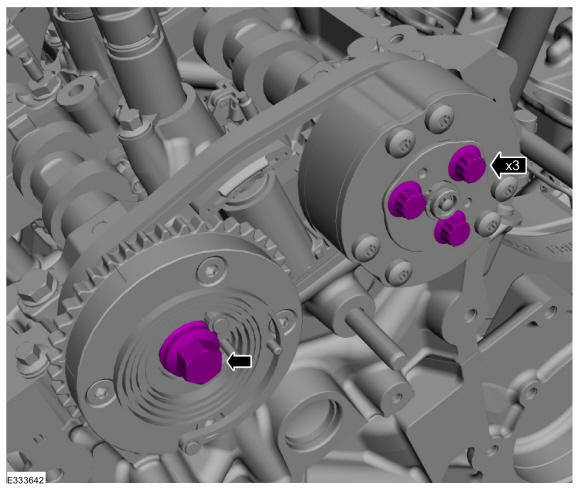

20. NOTE: Do not tighten the bolts at this time.
    • Install a new exhaust VCT assembly bolt.
    • Install new intake VCT assembly bolts.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolt.

    Tighten the exhaust VCT assembly bolt.

    Torque:Stage 1: 30 lb.ft (40 Nm)

    Stage 2: Loosen: 360 deg.

    Stage 3: 20 lb.ft (27 Nm)

    Stage 4: 150 deg.

    Courtesy of FORD MOTOR COMPANY

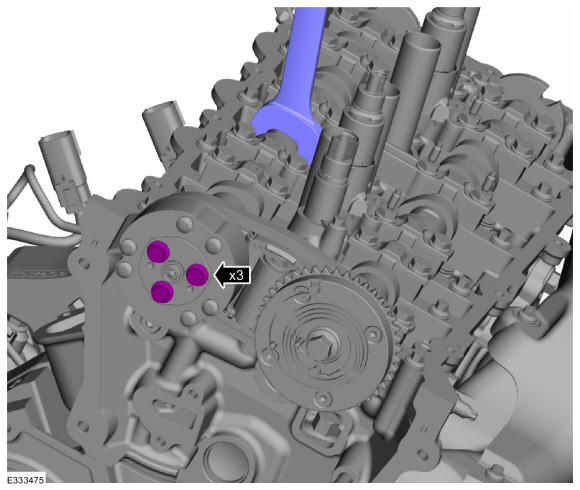

22. NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.

    Tighten the intake VCT assembly bolts.

    Torque:Stage 1: 133 lb.in (15 Nm)

    Stage 2: 90 deg.

    Courtesy of FORD MOTOR COMPANY

23. Inspect the O-ring seal. If damaged, discard the oil tube assembly.

    Courtesy of FORD MOTOR COMPANY

24. Apply clean engine oil to the O-ring seal and oil tube.

    Courtesy of FORD MOTOR COMPANY

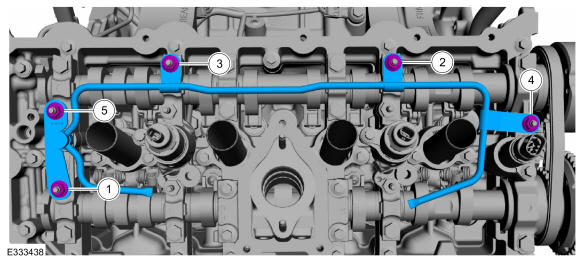

25. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Inspect the seals. If damaged, discard the oil tube assembly.

    Courtesy of FORD MOTOR COMPANY

27. Apply clean engine oil to the seals and oil tube.

    Courtesy of FORD MOTOR COMPANY

28. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

29. Install the RH timing chain. Refer to: Timing Chain .
30. Road test the vehicle.
