Valve Cover RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Installation of a new seal is only required if damaged seal was removed.

    Using the special tools, install a new spark plug tube seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD555547Courtesy of FORD MOTOR COMPANY
  2. NOTE: Installation of a new seal is only required if damaged seal was removed.

    Using the special tools, install a new seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    GFD555548Courtesy of FORD MOTOR COMPANY
  3. Install new gaskets.

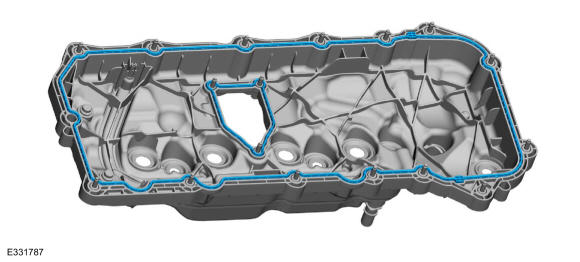

    GFD555549Courtesy of FORD MOTOR COMPANY
  4. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 12 mm (0.47 in) bead of silicone gasket and sealant to the engine front cover-to-cylinder head joints.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

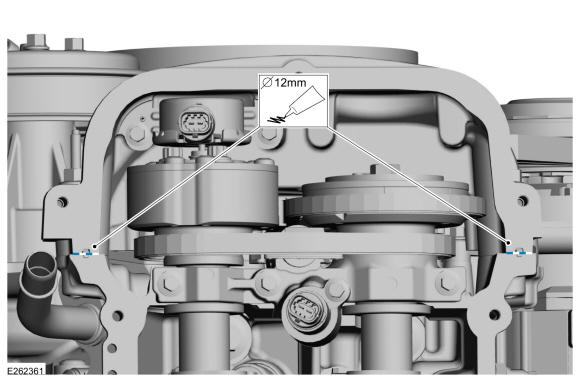

    GFD555550Courtesy of FORD MOTOR COMPANY
  5. Install the valve cover and tighten the bolts.

    Torque: 1-3: 89 lb.in (10 Nm) 4-17: 133 lb.in (15 Nm)

    Fig 1: Valve Cover Bolts RH Tightening Sequence

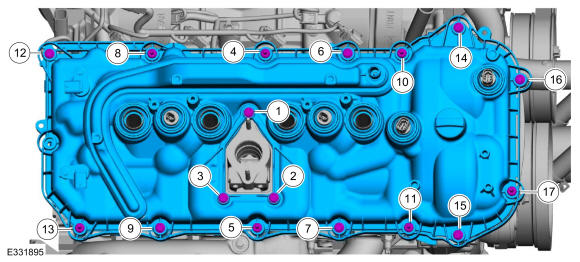

    GFD555551Courtesy of FORD MOTOR COMPANY
    • Connect the engine wiring harness electrical connectors.

    • Attach the wiring harness retainers.

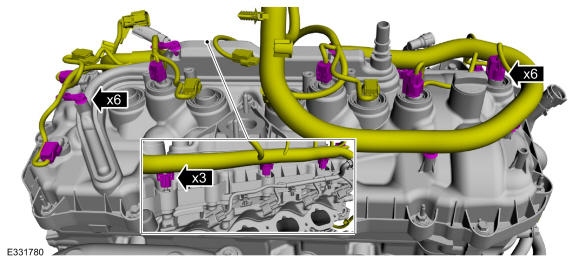

    GFD555541Courtesy of FORD MOTOR COMPANY
    1. Install the ground strap and the nut.

      Torque: 106 lb.in (12 Nm)

    2. Connect the engine wiring harness connectors.
    3. Attach the engine wiring harness retainer.
    4. Install the ground strap and the nut.

      Torque: 53 lb.in (6 Nm)

    GFD555540Courtesy of FORD MOTOR COMPANY
    1. Position the coolant pump and install the fasteners.

      Torque: 62 lb.in (7 Nm)

    2. Attach the wiring harness retainer.
    3. Connect the coolant pump electrical connector.
    4. Attach the coolant hose retainers.
    5. Connect the heater hose.
    GFD555552Courtesy of FORD MOTOR COMPANY
  9. Install the following items:

    1. High pressure fuel pump. Refer to: High-Pressure Fuel Pump .
    2. RH ignition coils. Refer to: Ignition Coil-On-Plug .

  10. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  11. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
  12. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
