Valve Cover LH - Vehicles With: Dual Generators: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. Remove the following items:

    1. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Air cleaner. Refer to: Air Cleaner .

  2. Follow directions to release the quick release coupling type 3. Remove the crankcase vent tube. Refer to: Quick Release Coupling .
    GFD555519Courtesy of FORD MOTOR COMPANY
    • Remove the oil level indicator.

    • Remove the nuts.

    • Remove the oil level indicator tube.

    GFD555374Courtesy of FORD MOTOR COMPANY
  4. Inspect the O-ring seal and replace as necessary.
    GFD555375Courtesy of FORD MOTOR COMPANY
  5. Remove the following items:

    1. Secondary generator. Refer to: Generator - 5.0L 32V Ti-VCT .
    2. LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

    • Disconnect the engine wiring harness electrical connectors.

    • Detach the wiring harness retainers.

    GFD555520Courtesy of FORD MOTOR COMPANY
  7. Remove the engine front cover bolts.
    GFD555521Courtesy of FORD MOTOR COMPANY

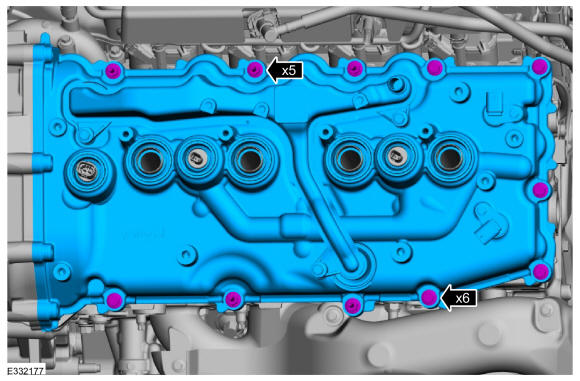

  8. Loosen the fasteners and remove the valve cover.
    GFD555522Courtesy of FORD MOTOR COMPANY
  9. NOTE: Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Remove and discard the gasket.

    GFD555523Courtesy of FORD MOTOR COMPANY
  10. If necessary, remove the bolts and the crankcase vent oil separator.
    GFD555524Courtesy of FORD MOTOR COMPANY
  11. NOTE: This step is only necessary if the crankcase vent oil separator was removed.

    1. Inspect the crankcase vent oil separator seals.
    2. Remove and discard any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD555525Courtesy of FORD MOTOR COMPANY
    1. Inspect the spark plug seals.
    2. Remove and discard any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
    GFD555526Courtesy of FORD MOTOR COMPANY
    1. Inspect the VCT oil control solenoid seal and the cylinder deactivation solenoid seals.
    2. Remove and discard any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
    GFD555527Courtesy of FORD MOTOR COMPANY
  14. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD555528Courtesy of FORD MOTOR COMPANY
