Valve Cover LH - Vehicles With: Dual Generators: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Installation of a new seal is only required if a damaged seal was removed.

    Using the special tools, install a new seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    GFD555529Courtesy of FORD MOTOR COMPANY
  2. NOTE: Installation of a new seal is only required if a damaged seal was removed.

    Using the special tools, install a new seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD555530Courtesy of FORD MOTOR COMPANY
  3. NOTE: Installation of a new seal is only required if a damaged seal was removed.

    Using the special tools, install a new seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD555531Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step is only necessary if the crankcase vent oil separator was removed.

    1. Lubricate the crankcase vent oil separator seals with clean engine oil.
    2. Install the crankcase vent oil separator and the bolts.

      Torque: 89 lb.in (10 Nm)

    GFD555532Courtesy of FORD MOTOR COMPANY
  5. Install a new gasket.
    GFD555533Courtesy of FORD MOTOR COMPANY

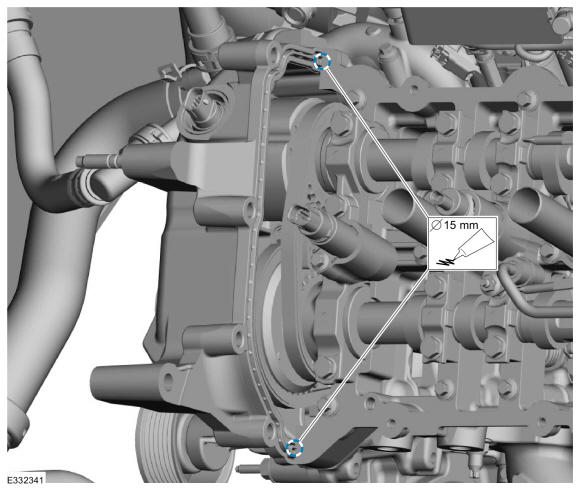

  6. NOTE: If the valve cover is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned.

    Apply a 15 mm (0.59 in) drop of silicone gasket and sealant to the engine front cover-to-camshaft carrier joints.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD555534Courtesy of FORD MOTOR COMPANY

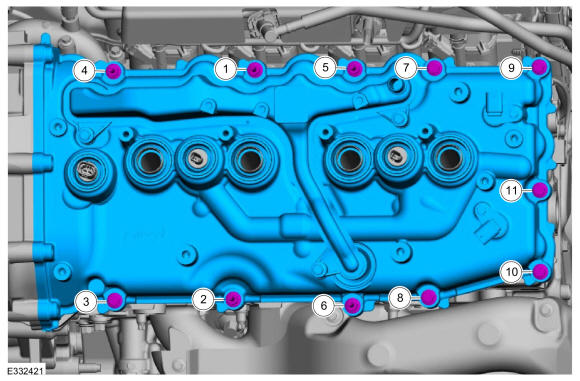

  7. Install the valve cover and tighten the bolts.

    Torque: 133 lb.in (15 Nm)

    Fig 1: Valve Cover Bolts LH Tightening Sequence - Vehicles With: Dual Generators
    GFD555535Courtesy of FORD MOTOR COMPANY

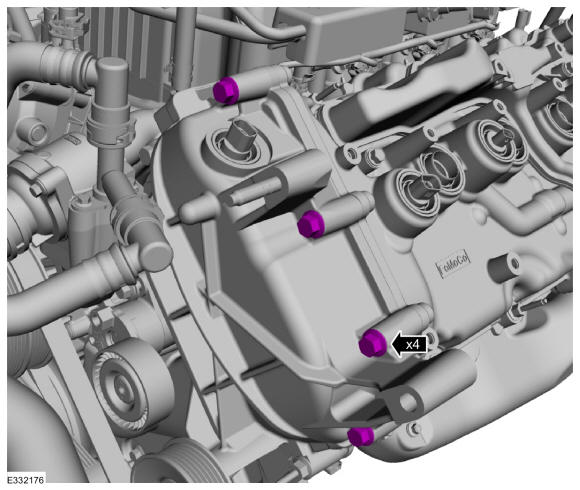

  8. Install the engine front cover bolts and tighten in sequence.

    Torque:Stage 1: 18 lb.ft (25 Nm)

    Stage 2: 60 deg.

    GFD555521Courtesy of FORD MOTOR COMPANY

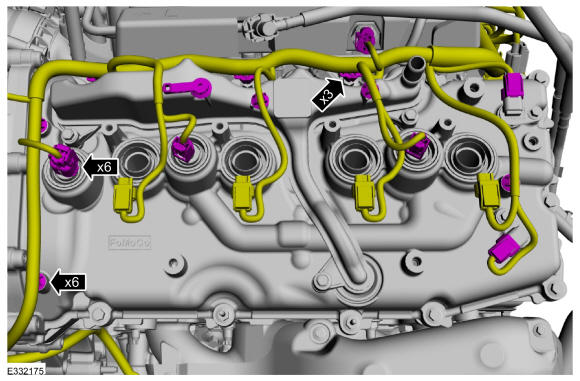

    • Connect the engine wiring harness electrical connectors.

    • Attach the wiring harness retainers.

    GFD555520Courtesy of FORD MOTOR COMPANY
  10. Install the following items:

    1. LH ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .
    2. Secondary generator. Refer to: Generator - 5.0L 32V Ti-VCT .

  11. Lubricate the O-ring seal with clean engine oil.
    GFD555387Courtesy of FORD MOTOR COMPANY
    • Install the oil level indicator tube.

    • Install the nuts.

      Torque: 71 lb.in (8 Nm)

    • Install the oil level indicator.

    GFD555374Courtesy of FORD MOTOR COMPANY

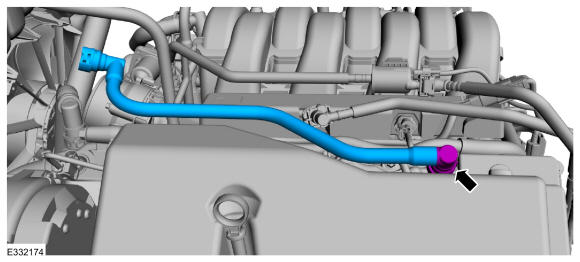

  13. Follow directions to connect the quick release coupling type 3. Install the crankcase vent tube. Refer to: Quick Release Coupling .
    GFD555519Courtesy of FORD MOTOR COMPANY
  14. Install the following items:

    1. Air cleaner. Refer to: Air Cleaner .
    2. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
