Rocker Arm: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

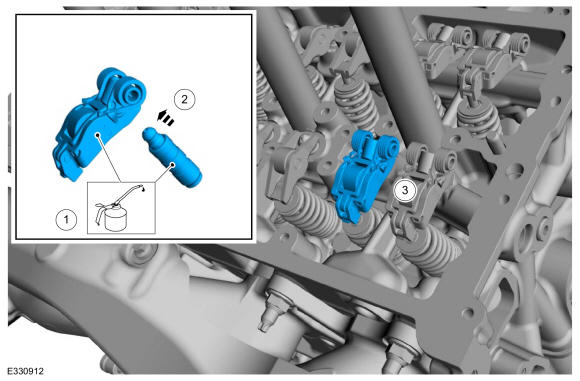

Deactivating rocker arm

1. Lubricate the rocker arm and hydraulic lash adjuster with clean engine oil.
2. Engage the hydraulic lash adjuster into the spring clip on the rocker arm.
3. Install the rocker arm and hydraulic lash adjuster assembly.
Courtesy of FORD MOTOR COMPANY

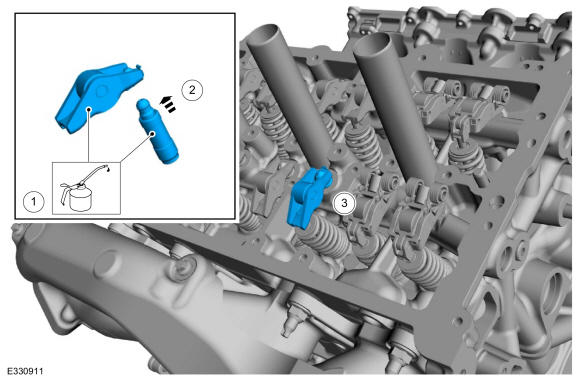

Standard rocker arm
1. Lubricate the rocker arm and hydraulic lash adjuster with clean engine oil.
2. Engage the hydraulic lash adjuster into the spring clip on the rocker arm.
3. Install the rocker arm and hydraulic lash adjuster assembly.
Courtesy of FORD MOTOR COMPANY

All rocker arms
Install the LH and/or RH camshaft and carrier assembly. Refer to: Camshaft and Carrier Assembly .
