Oil Pump: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Make sure the oil pump drive belt teeth are engaged in the crankshaft sprocket prior to installing the oil pump.

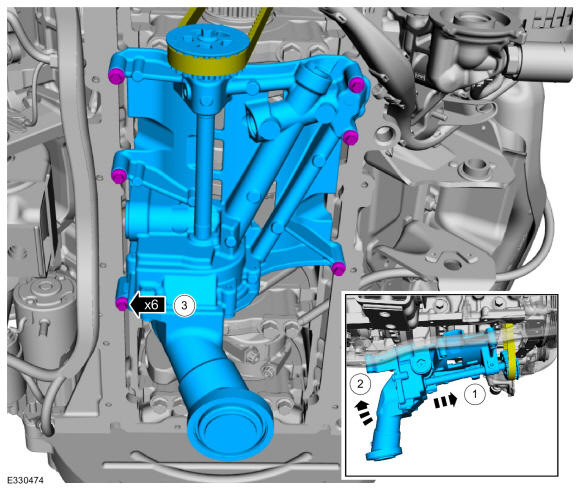

- Install the oil pump sprocket into the oil pump drive belt.
- Raise the rear of the oil pump assembly into the installed position.
- Install the oil pump bolts.
Torque:Stage 1: 89 lb.in (10 Nm)
Stage 2: 45 deg.
- Install the oil pan. Refer to: Oil Pan .
