Intake Manifold: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
Remove the following items:
1. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
2. EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .

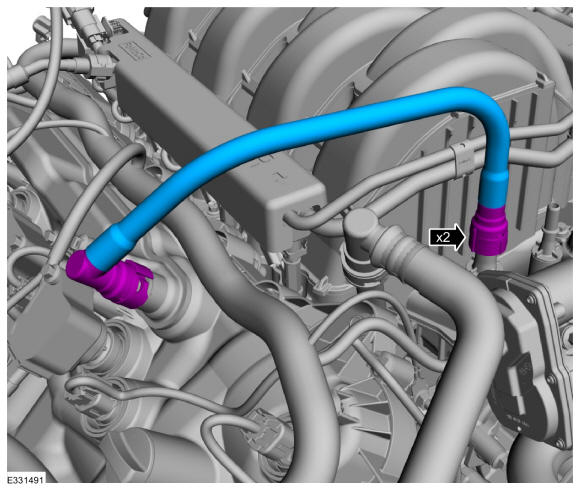

Follow directions to release the quick release coupling type 3. Remove the crankcase vent tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

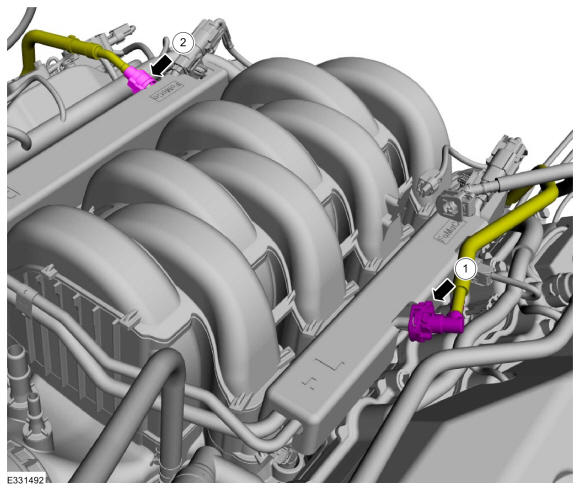

1. Follow directions to release the quick release coupling type 1. Disconnect the fuel supply tube. Refer to: Quick Release Coupling .
2. Follow directions to release the quick release coupling type 2. Disconnect the fuel jumper tube. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

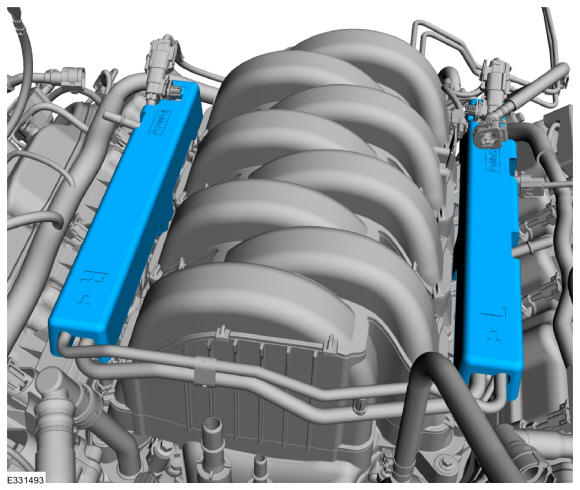

Remove the fuel rail insulators.

Courtesy of FORD MOTOR COMPANY

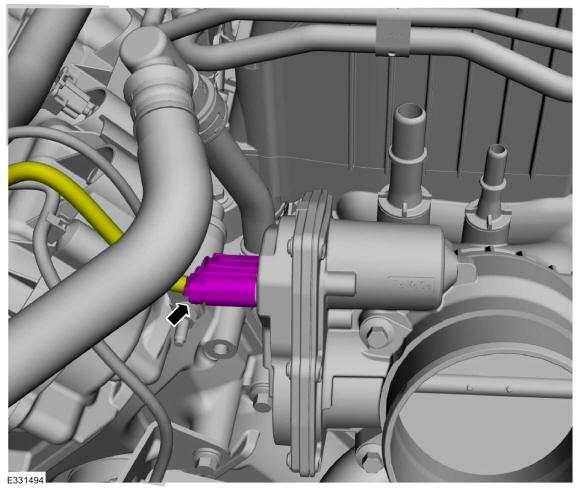

Disconnect the throttle body electrical connector.

Courtesy of FORD MOTOR COMPANY

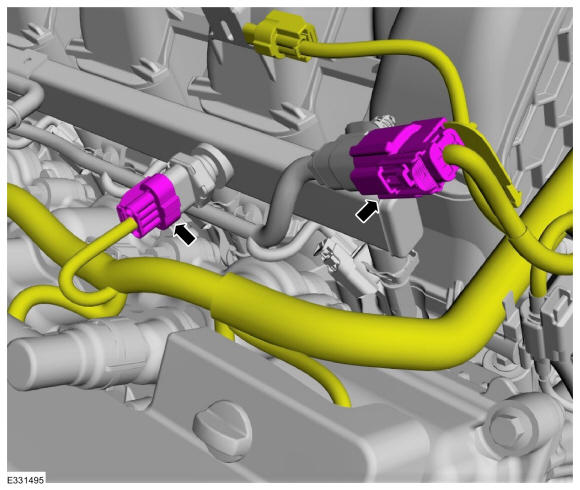

Disconnect the LH fuel injector harness and fuel pressure sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY

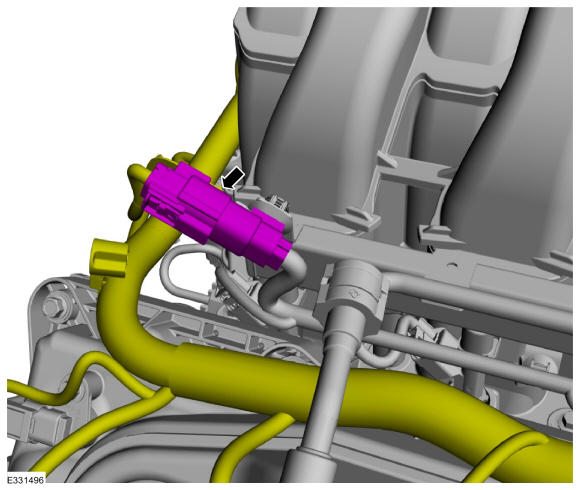

Disconnect the RH fuel injector electrical connectors and the fuel sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: It is not necessary to remove the fuel rail from the intake manifold assembly.

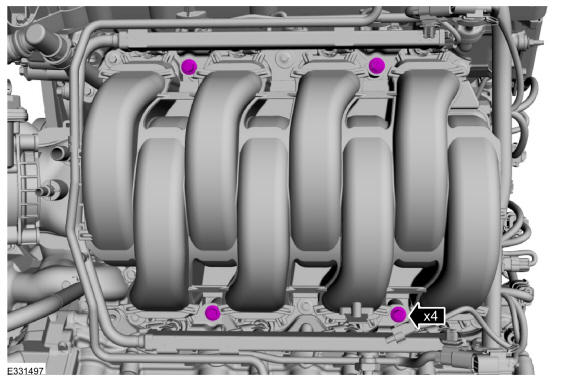

Remove the fuel rail bolts.

Courtesy of FORD MOTOR COMPANY

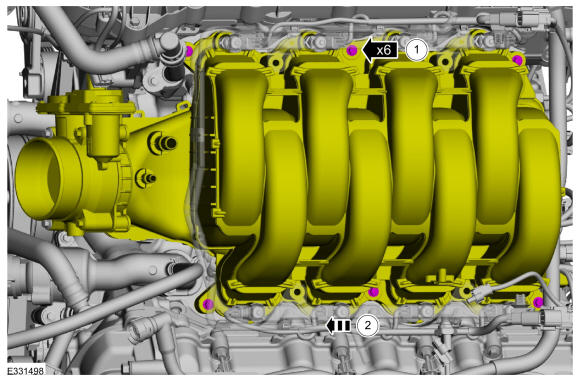

1. Loosen the intake manifold bolts.
2. Position the manifold up and towards the front of the engine to access the rear of the manifold.
Courtesy of FORD MOTOR COMPANY

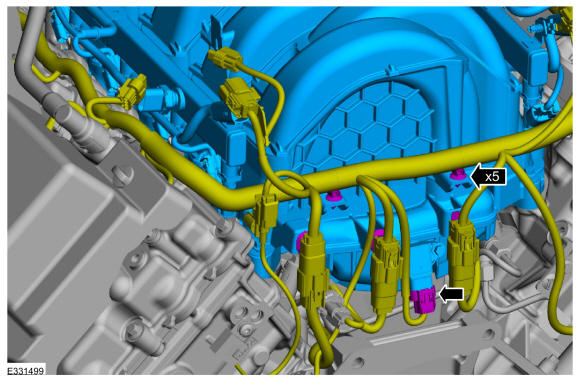

- Disconnect the MAP sensor electrical connector.
- Detach the wiring harness retainers
- Remove the intake manifold.
Courtesy of FORD MOTOR COMPANY

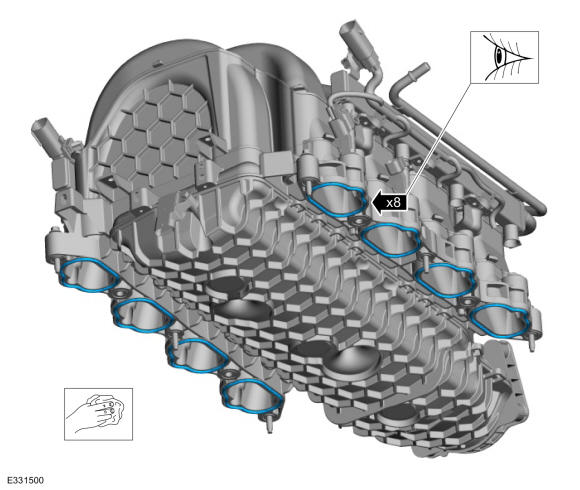

- NOTE: Visually inspect the manifold gaskets for nicks, cuts and abrasions. If these conditions are NOT present, the gaskets may be re-used.

  Remove and inspect the gaskets.
- Clean and inspect all sealing surfaces.

Courtesy of FORD MOTOR COMPANY
