Engine Mount RH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Air cleaner. Refer to: Air Cleaner .

  5. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD554786Courtesy of FORD MOTOR COMPANY
  6. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD555354Courtesy of FORD MOTOR COMPANY
  7. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD555318Courtesy of FORD MOTOR COMPANY
  8. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .

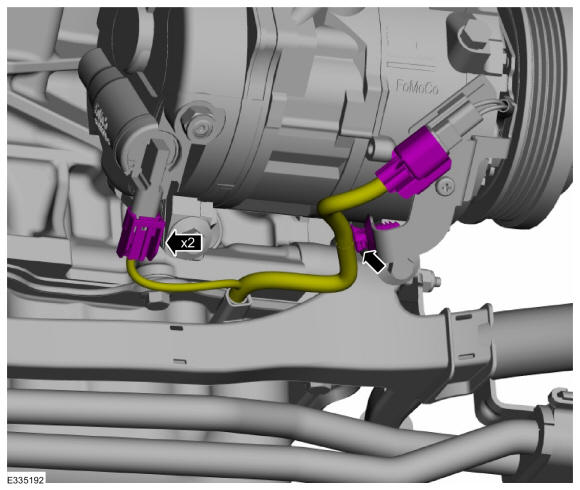

    1. Disconnect the A/C compressor electrical connectors.
    2. Detach the wiring harness retainer.
    GFD555371Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and position the A/C compressor aside.
    GFD555322Courtesy of FORD MOTOR COMPANY
    1. Detach the coolant tube retainer.
    2. Remove the nut and position the coolant tube and bracket aside.
    GFD555319Courtesy of FORD MOTOR COMPANY
  12. Disconnect the coolant hose quick release couplings.
    GFD555313Courtesy of FORD MOTOR COMPANY
  13. Remove the nut and position the coolant tubes aside.
    GFD555359Courtesy of FORD MOTOR COMPANY
  14. Remove the following items:

    1. Refer to: Starter Motor .
    2. If equipped. Refer to: Front Driveshaft .

  15. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts.

    • Remove the engine mount studs.

    GFD555356Courtesy of FORD MOTOR COMPANY
    • Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Make sure that the mating faces are clean and free of foreign material.

    GFD555355Courtesy of FORD MOTOR COMPANY
  17. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD554118Courtesy of FORD MOTOR COMPANY
  18. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD555358Courtesy of FORD MOTOR COMPANY
    • Remove and discard the stabilizer bar bracket nuts.

    • Allow the stabilizer bar to swing downward.

    GFD554859Courtesy of FORD MOTOR COMPANY
    1. Position an adjustable stand and wood block under transmission bellhousing. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
    2. Raise the adjustable stand 63.5 mm (2.5 in).
    GFD555361Courtesy of FORD MOTOR COMPANY

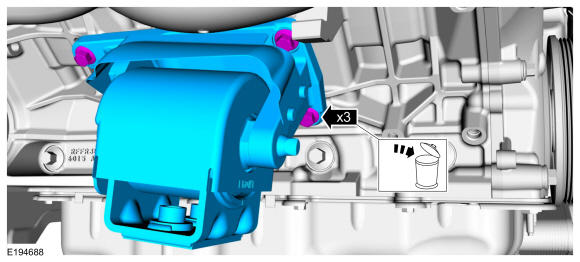

  21. Remove and discard the RH engine mount bracket-to-engine bolts.

    1. Remove the RH engine mount and bracket as an assembly.
    2. Clean the engine mount bracket-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

GFD555372Courtesy of FORD MOTOR COMPANY
