Engine Mount RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a new RH engine mount is installed, remove the 2 studs prior to positioning the assembly in the vehicle.

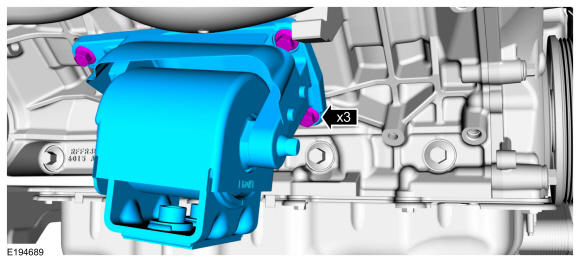

Install the RH engine mount and the new bolts.

Torque: 55 lb.ft (75 Nm)

Courtesy of FORD MOTOR COMPANY
- Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
- Remove the stand and wood block.
Courtesy of FORD MOTOR COMPANY
Position the stabilizer bar and install the new nuts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

NOTE: Apply threadlock to the stud threads prior to installation.

Install the engine mount studs.

Material

: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new LH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Tighten the transmission mount-to-crossmember nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
- Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 30 lb.ft (40 Nm)
- Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. If equipped. Refer to: Front Driveshaft .
2. Refer to: Starter Motor .
Position the coolant tubes and install the nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose quick release couplings.

Courtesy of FORD MOTOR COMPANY
1. Position the coolant tubes and bracket and install the nut.
  Torque: 119 lb.in (13.5 Nm)
2. Attach the coolant tube retainer.
Courtesy of FORD MOTOR COMPANY
Install the A/C compressor and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
1. Connect the A/C compressor electrical connectors.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
NOTE: If equipped.

Install the skid plate and bolts.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and fasteners.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the bolts.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Air cleaner. Refer to: Air Cleaner .
2. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Start engine and check exhaust system for leaks.
