Crankshaft Pulley: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
-
NOTE: If necessary, retain the original bolt for to perform the crankshaft front seal procedure.

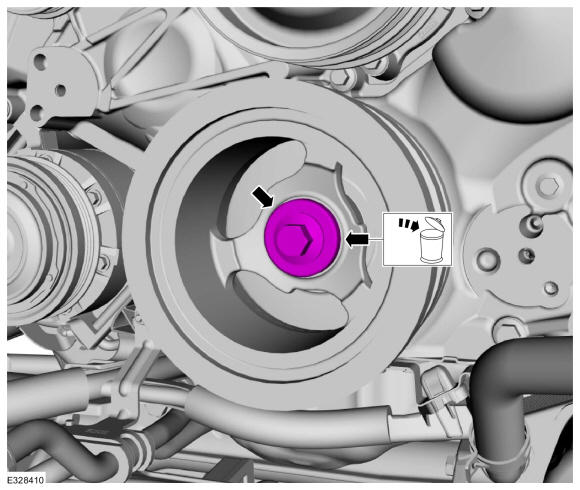

Remove and discard the crankshaft pulley bolt and retain the washer.
-
NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

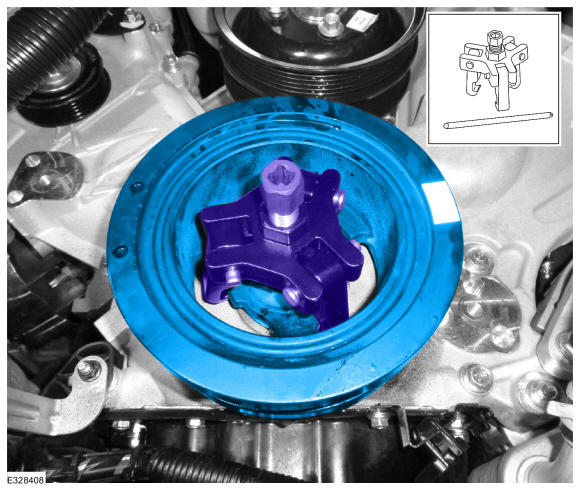

Using a universal puller, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
