Camshaft and Carrier Assembly: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Right hand (RH) camshaft and carrier assembly

  1. Remove the RH timing chain. Refer to: Timing Chain .

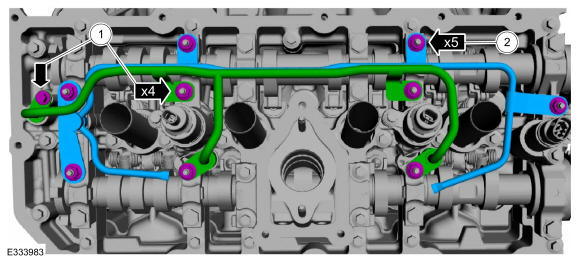

    • Loosen the fasteners and remove the oil tube.

    • Loosen the fasteners and remove the oil tube.

    GFD555214Courtesy of FORD MOTOR COMPANY
  3. Remove the bolts and the camshaft cap.
    GFD555215Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the camshaft and carrier assembly.
    GFD555216Courtesy of FORD MOTOR COMPANY

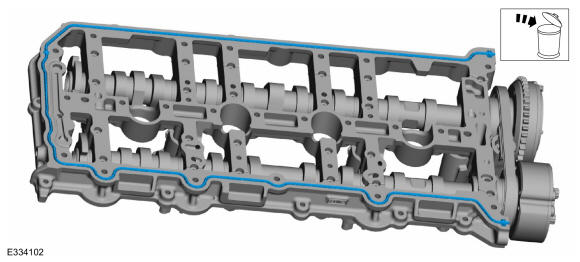

  5. Remove and discard the gasket.
    GFD555217Courtesy of FORD MOTOR COMPANY

    Left hand (LH) camshaft and carrier assembly

  6. Remove the LH timing chain. Refer to: Timing Chain .
  7. If equipped with dual generators, remove the LH valve cover. Refer to: Valve Cover LH - Vehicles With: Dual Generators .

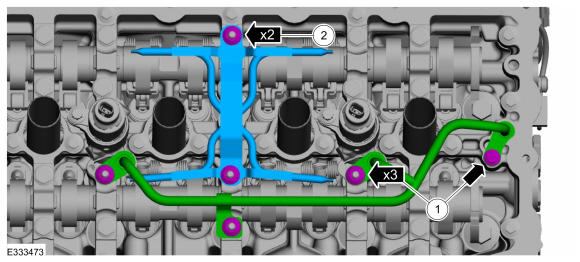

    • Loosen the fasteners and remove the oil tube.

    • Loosen the fasteners and remove the oil tube.

    GFD555218Courtesy of FORD MOTOR COMPANY

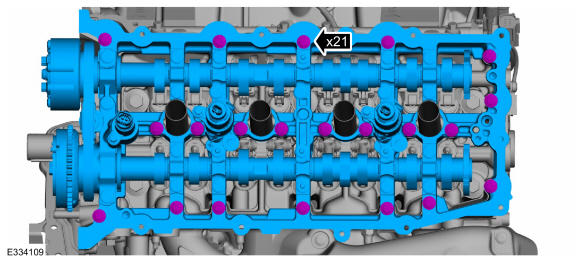

  9. Remove the bolts and the camshaft and carrier assembly.
    GFD555219Courtesy of FORD MOTOR COMPANY

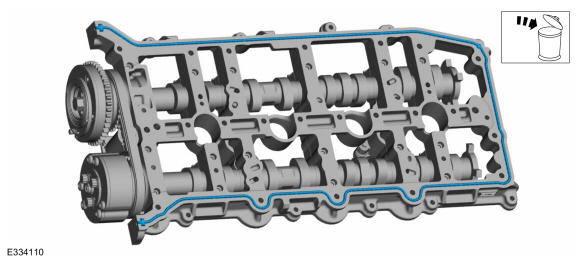

  10. Remove and discard the gasket.
GFD555220Courtesy of FORD MOTOR COMPANY
