Camshaft and Carrier Assembly: Installation

Left hand (LH) camshaft and carrier assembly

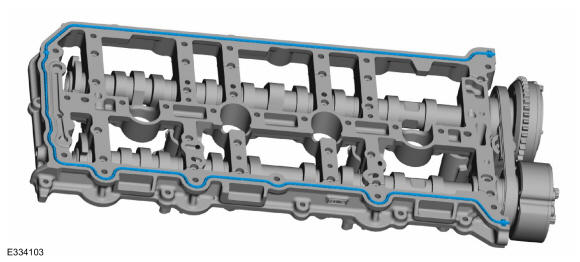

1. Install a new gasket.

   Courtesy of FORD MOTOR COMPANY

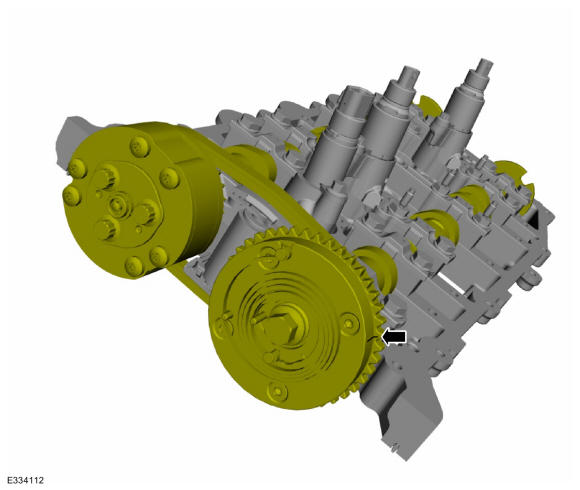

2. Make sure the timing mark is in the position shown.

   Courtesy of FORD MOTOR COMPANY

3. Lubricate the camshafts with clean engine oil.

   Courtesy of FORD MOTOR COMPANY

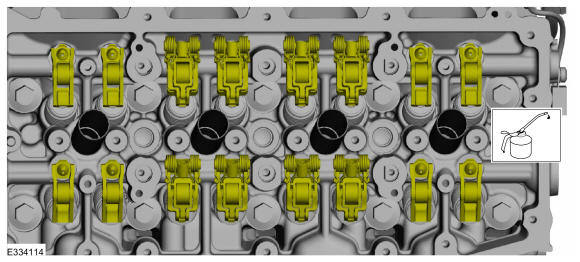

4. Lubricate the rocker arms with clean engine oil.

   Courtesy of FORD MOTOR COMPANY

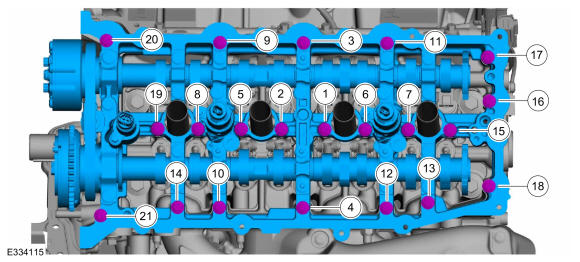

5. Install the camshaft and carrier assembly.

   Torque: Stage 1: 106 lb.in (12 Nm)

   Stage 2: 106 lb.in (12 Nm)

   Stage 3: 60 deg.

   Fig 1: Camshaft And Carrier Assembly LH Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
6. Inspect the O-ring seal. If damaged, discard the oil tube assembly.

   Courtesy of FORD MOTOR COMPANY

7. Apply clean engine oil to the O-ring seal and oil tube.

   Courtesy of FORD MOTOR COMPANY

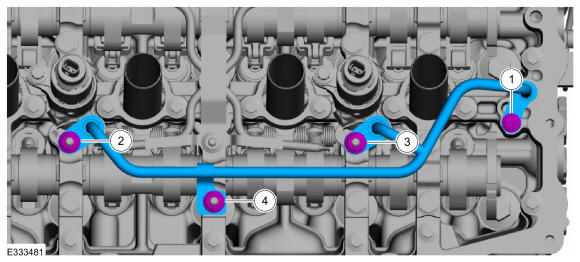

8. Install the oil tube and tighten the fasteners in sequence.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Inspect the seals. If damaged, discard the oil tube assembly.

   Courtesy of FORD MOTOR COMPANY

10. Apply clean engine oil to the seals and oil tube.

    Courtesy of FORD MOTOR COMPANY

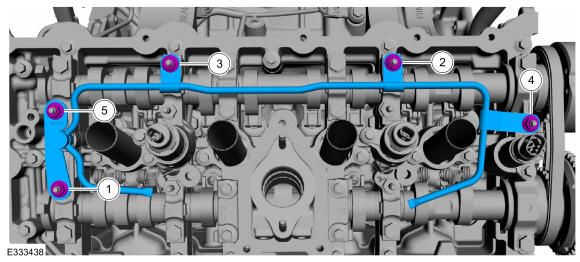

11. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Fig 2: Oil Tube Bolts LH Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
12. If equipped with dual generators, install the LH valve cover. Refer to: Valve Cover LH - Vehicles With: Dual Generators .
13. Install the LH timing chain. Refer to: Timing Chain .

    Right hand (RH) camshaft and carrier assembly

14. Install a new gasket.

    Courtesy of FORD MOTOR COMPANY

15. Make sure the timing mark is in the position shown.

    Courtesy of FORD MOTOR COMPANY

16. Lubricate the camshafts with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

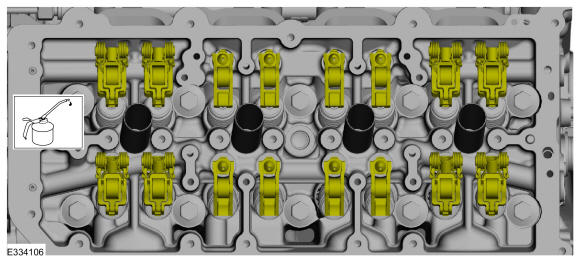

17. Lubricate the rocker arms with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

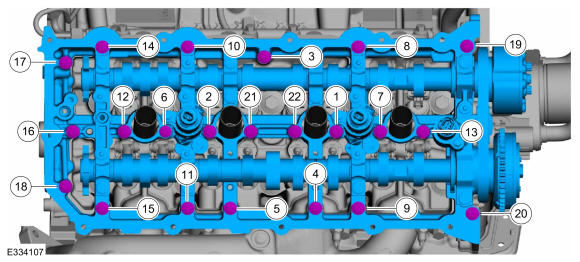

18. Install the camshaft and carrier assembly.

    Torque: Stage 1: 106 lb.in (12 Nm)

    Stage 2: 106 lb.in (12 Nm)

    Stage 3: 60 deg.

    Fig 3: Camshaft And Carrier Assembly RH Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
19. Install the camshaft cap and bolts.

    Torque: Stage 1: 53 lb.in (6 Nm)

    Stage 2: 90 deg.

    Fig 4: Camshaft Cap Bolts RH Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
20. Inspect the O-ring seal. If damaged, discard the oil tube assembly.

    Courtesy of FORD MOTOR COMPANY

21. Apply clean engine oil to the O-ring seal and oil tube.

    Courtesy of FORD MOTOR COMPANY

22. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Fig 5: Oil Tube RH Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
23. Inspect the seals. If damaged, discard the oil tube assembly.

    Courtesy of FORD MOTOR COMPANY

24. Apply clean engine oil to the seals and oil tube.

    Courtesy of FORD MOTOR COMPANY

25. Install the oil tube and tighten the fasteners in sequence.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Install the RH timing chain. Refer to: Timing Chain .
