Camshaft RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1. Lubricate the camshafts with clean engine oil.

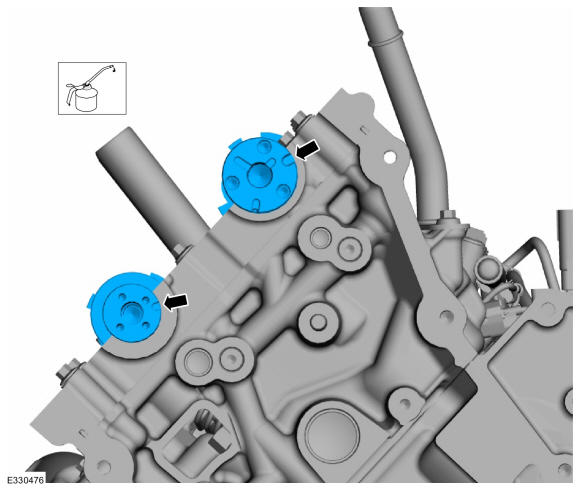

2. Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.
Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten at this time.

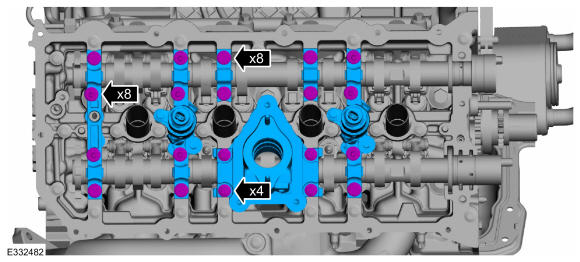

Install the camshaft bearing caps and the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten at this time.

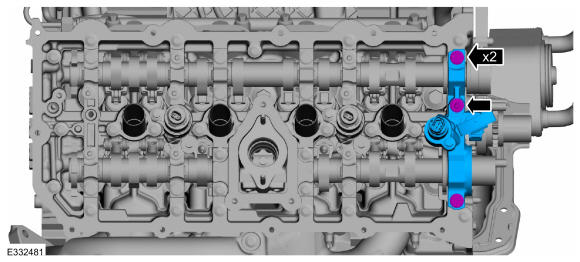

Install the front camshaft bearing mega cap and the bolts.

Courtesy of FORD MOTOR COMPANY

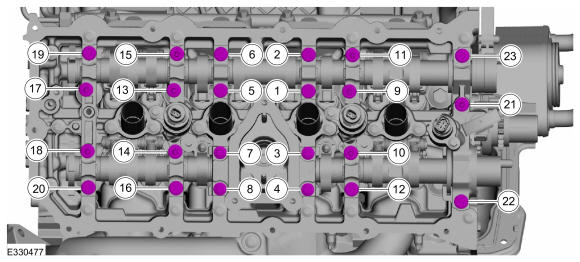

Tighten the bolts in sequence.
Torque:Stage 1: Bolts 1-23: 53 lb.in (6 Nm)

Stage 2: Bolts 1-2, 5-6, 9-23: 45 deg. Bolts 3-4, 7-8: 90 deg.

Fig 1: Camshaft Bearing Cap Bolts RH Tightening Sequence
Courtesy of FORD MOTOR COMPANY

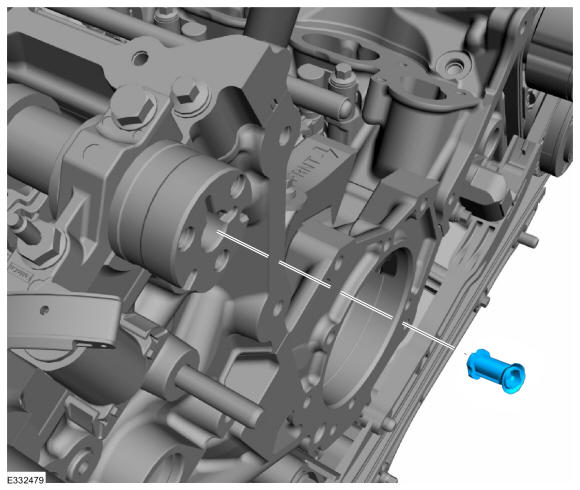

Install a new VCT system oil filter into the camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: The oil tubes will be installed during the VCT unit installation process.

Install the RH (right-hand) VCT units. Refer to: Variable Camshaft Timing (VCT) Unit .
Road test the vehicle.
