Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

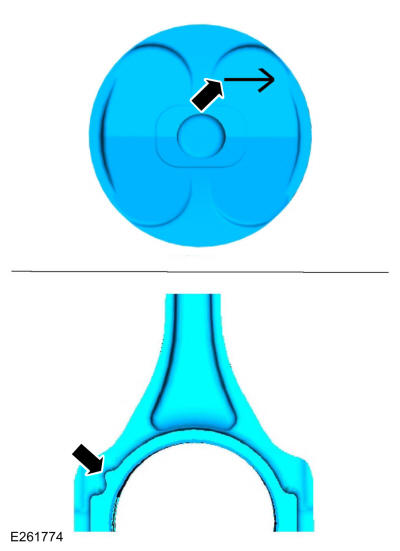

If the piston and/or connecting rod are being installed new, the connecting rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.

Courtesy of FORD MOTOR COMPANY
Position the piston on the connecting rod.

Courtesy of FORD MOTOR COMPANY
1. Lubricate the piston pin with clean engine oil.
2. Install the piston pin.
Courtesy of FORD MOTOR COMPANY

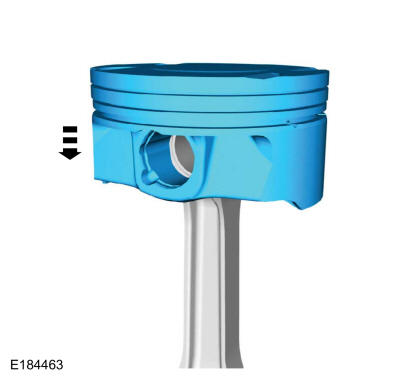

NOTE: The piston pin retainer gap orientation must be toward the top of the piston.

Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY

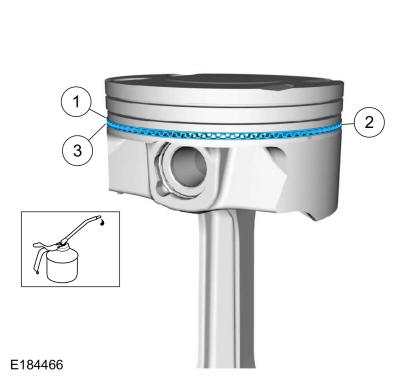

Lubricate the oil control rings with clean engine oil.
1. Install the upper oil control ring.
2. Install the oil control expander ring.
3. Install the lower oil control ring.
Courtesy of FORD MOTOR COMPANY

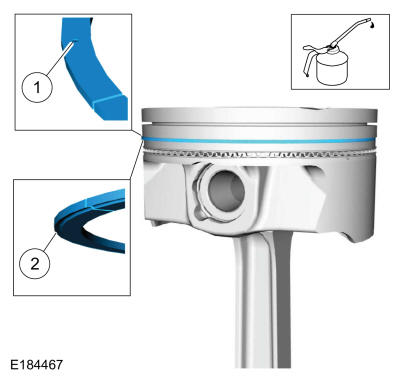

Lubricate the lower compression ring with clean engine oil and install the ring.
1. The "O" mark on the ring pointing up toward the top of the piston.
2. Hook feature will point down toward the bottom of piston.
Courtesy of FORD MOTOR COMPANY

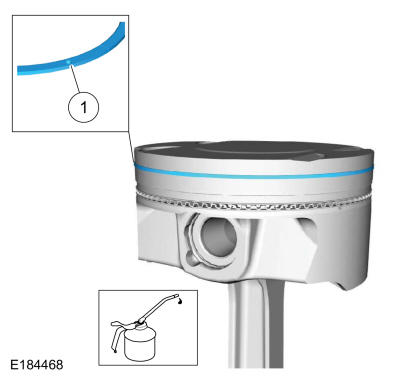

Lubricate the upper compression ring with clean engine oil and install the ring.
1. The "O" mark on the ring pointing up toward the top of the piston.
Courtesy of FORD MOTOR COMPANY

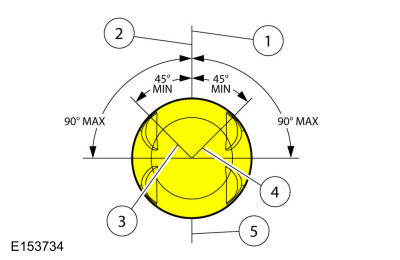

Position the piston ring gaps.
1. Center line of the piston parallel to the wrist pin bore.
2. Upper compression ring gap.
3. Upper oil control ring gap.
4. Lower oil control ring gap.
5. Oil control expander ring and lower compression ring gap.
