Starting System - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

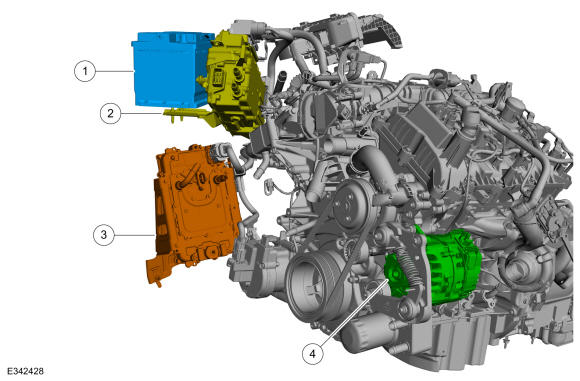

Belt Integrated Starter
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
12V battery |
| 2 |
AC to DC converter control module inverter |
| 3 |
DC to DC converter control module |
| 4 |
Belt integrated starter |

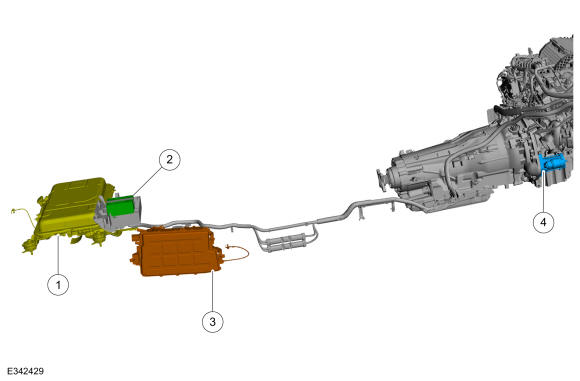

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
High voltage traction battery |
| 2 |
Auxiliary battery |
| 3 |
DC to AC converter control module |
| 4 |
Starter motor |
