Transmission Filler Tube: Installation
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Install a new transmission fluid filler tube O-ring seal and lubricate it with clean transmission fluid.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

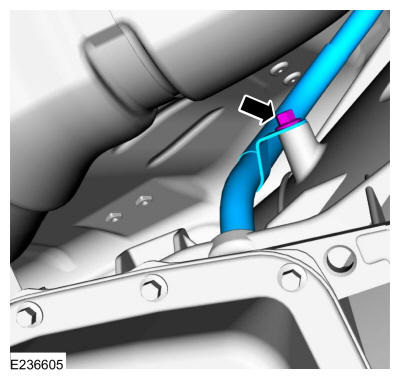

- Install the transmission fluid filler tube in the transmission and install the lower transmission fluid filler tube bolt.
Torque: 18 lb.ft (25 Nm)

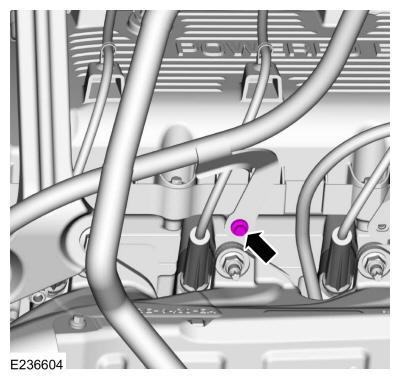

- Install the upper transmission fluid filler tube bolt.
Torque: 97 lb.in (11 Nm)
- Install the transmission fluid level indicator.
- Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
