Transmission - 6.2L V8: Removal

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Remove the transmission fluid level indicator

   Courtesy of FORD MOTOR COMPANY

3. Remove the starter motor. Refer to: Starter Motor .
4. Remove the drain plug and drain the transmission fluid. Install the drain plug.

   Torque: 168 lb.in (19 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove the bolts and the flexplate inspection cover.

   Courtesy of FORD MOTOR COMPANY

6. Remove the rubber torque converter nut access cover.

   Courtesy of FORD MOTOR COMPANY

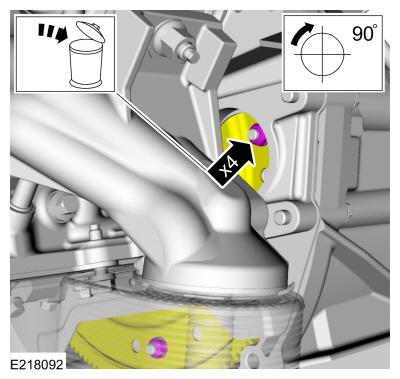

7. NOTE: Only rotate the crankshaft in a clockwise direction.

   Remove and discard the torque converter nuts (W714689).

   Courtesy of FORD MOTOR COMPANY

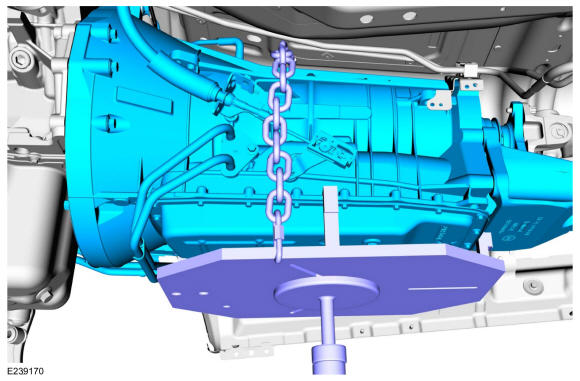

8. Using a high-lift transmission jack and safety chain support the transmission. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

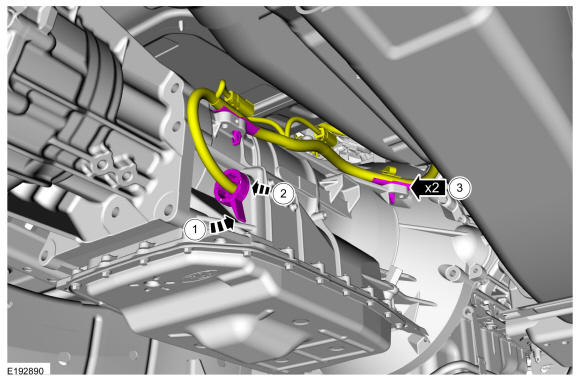

9. Remove the exhaust Y-Pipe. Refer to: Dual Catalytic Converter Y-Pipe .

   Rear Wheel Drive (RWD) vehicles

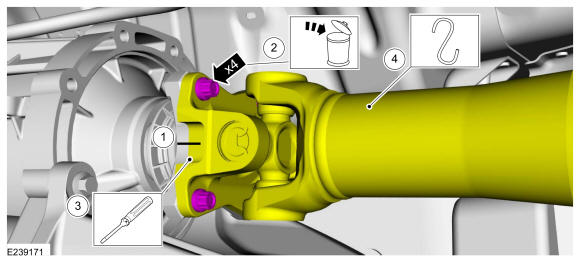

10. 1. Index-mark the driveshaft flange to the transmission flange to maintain alignment during installation.
    2. Remove and discard the driveshaft flange to transmission flange bolts (N811880).
    3. NOTE: The driveshaft flange fits tightly on the flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the flange pilot. Pry only in the area shown with a suitable tool, to disconnect the driveshaft flange from the flange pilot or damage to the driveshaft flange can occur.
       NOTE: The driveshaft flange to transmission flange is a tight fit. It may be necessary to remove the center bearing bolts before the driveshaft flange will separate from the transmission flange.

       Using a large flat headed screwdriver or tire lever, separate the driveshaft flange from the transmission flange. Use the General Equipment: Flat Headed Screw Driver Use the General Equipment: Tire Lever

    4. Support the driveshaft.

    Courtesy of FORD MOTOR COMPANY

11. Remove the driveshaft center bearing bolts and position aside the driveshaft.

    Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

12. Remove the front driveshaft. Refer to: Front Driveshaft .
13. Disconnect the transfer case electrical connector.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

14. Disconnect the transmission vent tube.

    Courtesy of FORD MOTOR COMPANY

15. Remove the transmission fluid cooler tube bracket bolt and position aside the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

16. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.

    Courtesy of FORD MOTOR COMPANY

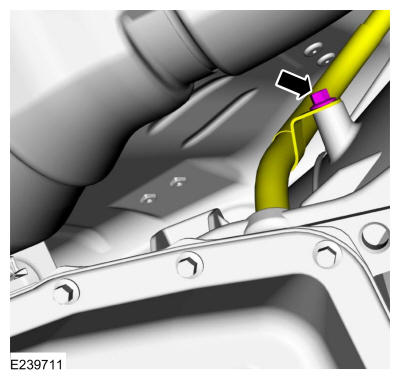

17. Remove the lower transmission fluid filler tube bolt, and position aside the transmission fluid filler tube.

    Courtesy of FORD MOTOR COMPANY

18. Remove and discard the transmission fluid filler tube O-ring (391308).

    Courtesy of FORD MOTOR COMPANY

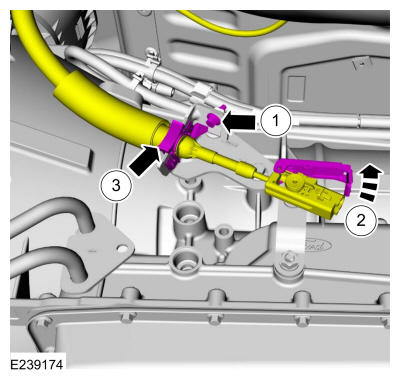

19. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    1. Remove the selector lever cable bolt.
    2. Move the locking tab up and disconnect the selector lever cable end from the manual control lever.
    3. Disconnect the selector lever cable from the bracket and position aside.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: RWD shown, 4WD similar.

    Remove the fuel line bracket bolt.

    Courtesy of FORD MOTOR COMPANY

21. 1. Rotate the transmission electrical connector counterclockwise.
    2. Pull the transmission electrical connector out to disconnect.
    3. Detach the retainers and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

22. Remove the top bellhousing bolts and position aside the fuel lines mounting bracket.

    Courtesy of FORD MOTOR COMPANY

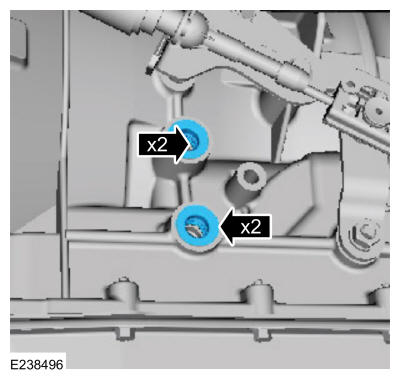

23. Remove the LH bellhousing bolts and the selector lever cable bracket.

    Courtesy of FORD MOTOR COMPANY

24. Remove the transmission fluid cooler tube mounting bracket bolt and position aside the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

25. Slide the transmission back enough to install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

    Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

26. Using the high-lift transmission jack, remove the transmission from the vehicle. Use the General Equipment: Transmission Jack

    Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

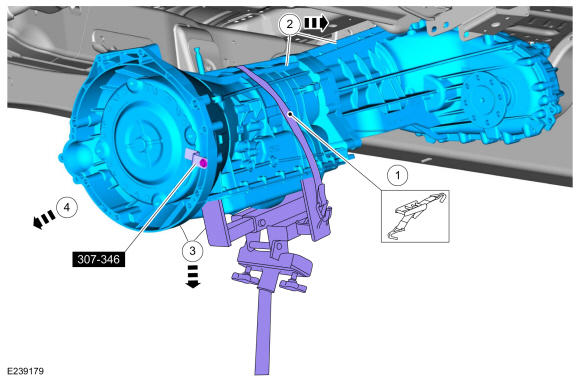

27. 1. Make sure the transmission is securely fastened to the transmission jack. Use the General Equipment: Transmission Jack
    2. Slide the transmission towards the rear of the vehicle.
    3. Tilt the front of the transmission down.
    4. Remove the transmission from the vehicle.

    Courtesy of FORD MOTOR COMPANY

28. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

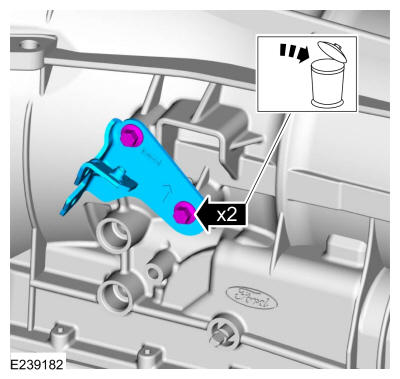

29. If installing a new or re-manufactured transmission, remove the bolts and bracket. Discard the bolts (W715131).

    Courtesy of FORD MOTOR COMPANY

30. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the Transmission Fluid Cooler Backflushing and Cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
