Low One-Way Clutch Assembly
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

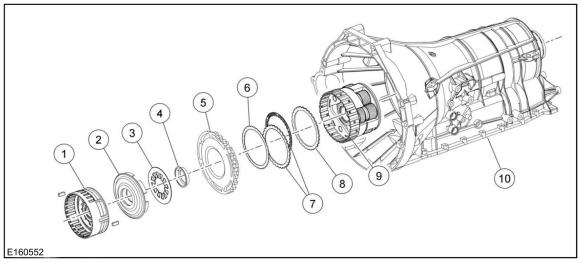

| Item | Description |
|---|---|
| 1 | Center support assembly |
| 2 | Low/reverse clutch piston |
| 3 | Low/reverse clutch piston return spring |
| 4 | Low/reverse clutch piston retainer |
| 5 | Low OWC |
| 6 | Low/reverse clutch wave spring |
| 7 | Low/reverse clutch friction and steel plates |
| 8 | Low/reverse clutch pressure plate |
| 9 | Rear planetary carrier assembly |
| 10 | Transmission case assembly |
Low One-way Clutch
The low One-Way Clutch (OWC) is a brake clutch that holds the rear planetary carrier in one direction and allows it to freewheel in the opposite direction which eliminates engine braking in 1st gear when the transmission is in DRIVE. The low One-Way Clutch (OWC) is also the pressure plate for the low/reverse clutch.
