Intermediate Clutch Assembly
Intermediate Clutch Cutaway View
| Item | Description |
|---|---|
| 1 | Direct clutch (B) cylinder |
| 2 | Center support retaining ring |
| 3 | Intermediate clutch (C) pressure plate retaining ring (selective) |
| 4 | Intermediate clutch pressure plate |
| 5 | Intermediate clutch assembly (quantity model dependent) |
| 6 | Intermediate clutch plate spring |
| 7 | Intermediate clutch piston return spring |
| 8 | Intermediate clutch piston |
| 9 | Center support assembly |
| 10 | Rear planetary sun gear No. 2 |
| 11 | Transmission case assembly |
Intermediate Clutch (C) Hydraulic Circuits
To apply the intermediate clutch, the manual valve can be in the DRIVE, 3, 2 or 1 position to provide line pressure to the clutch C regulator valve through the DRIVE circuit. SSC provides regulated solenoid pressure from the SREG circuit to the clutch C regulator valve through the VFS3 circuit to position the valve to apply the intermediate clutch). As the intermediate clutch is applied, SSC increases pressure to the clutch C regulator valve. The clutch C regulator valve provides regulated line pressure to the CL C circuit to apply the intermediate clutch. In 6th gear, regulated solenoid pressure from the clutch E latch valve is supplied to the clutch C regulator valve through the VFS3E circuit. VFS3E opposes VFS3 pressure. This action effectively reduces the amount of VFS3 force acting on the regulator valve and results in a smooth shift into 6th gear.

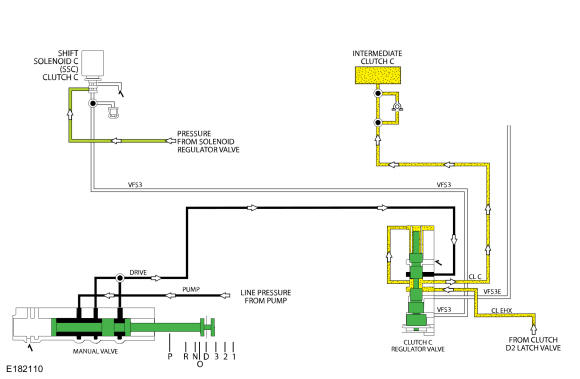

Intermediate (2, 6) Clutch Hydraulic Circuits (Applied)
In 2nd, 3rd, 4th, 5th and 6th gear, the D2 Latch valve directs a small amount of fluid from the PUMP circuit the CL EXH circuit. When SSC is hydraulically off and the Manual Valve is in DRIVE, the Clutch C circuits are filled with fluid from the CL EXH circuit under low pressure, (21kPa/ 3 PSI). This keeps air out of the Clutch C circuits resulting in smooth shifts when the clutch is applied in 2nd and 6th gear.
Intermediate (2, 6) Clutch Hydraulic Circuits (Released)
