Section 667 (Engine Ignition - 3.5L ECOBOOST (BM))
>>
Description And Operation
>>

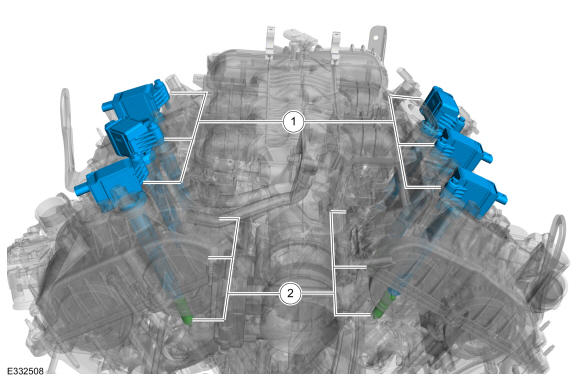

Engine Ignition - Component Location
Engine Ignition - Component Location
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Ignition coil-on-plug(s)
2
Spark plug(s)
