Port Injection Fuel Rail: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure that new fuel injector O-ring seals are installed.
-
NOTE: The fuel injector clip can be reused if it is not damaged during removal.
If the clip is reused, the 2 sides of the clip should be squeezed back into shape by placing it between index finger and thumb.

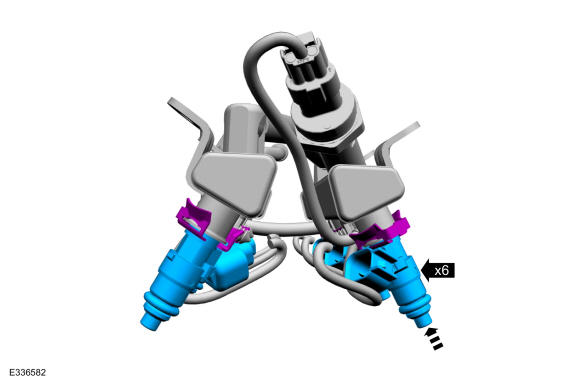

- Install the new fuel injector O-ring seals and the fuel injector retaining clips onto the fuel injectors. Lubricate the new fuel injector O-ring seals with clean engine oil. Refer to: SPECIFICATIONS
-
- Install the fuel injectors into the fuel rail.

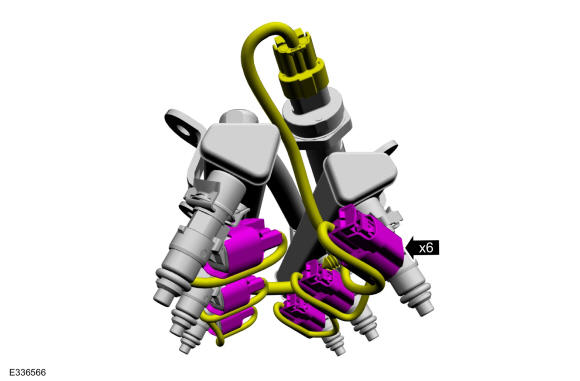

- Connect the fuel injector electrical connectors.

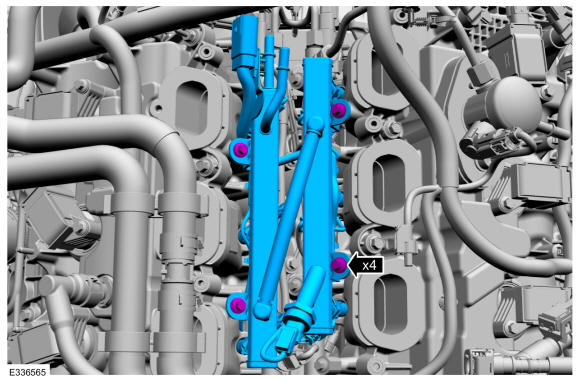

- Install the fuel rail, then install and tighten the fuel rail bolts in the following 2 stages.
Torque
:Stage 1: Tighten to: : 89 lb.in (10 Nm)
Stage 2: Tighten an additional: : 45°

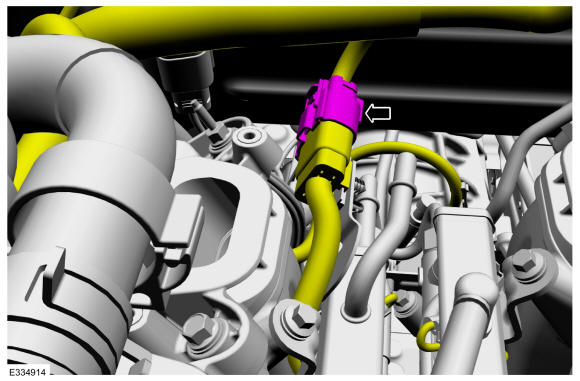

- Connect the main fuel injector harness electrical connector.

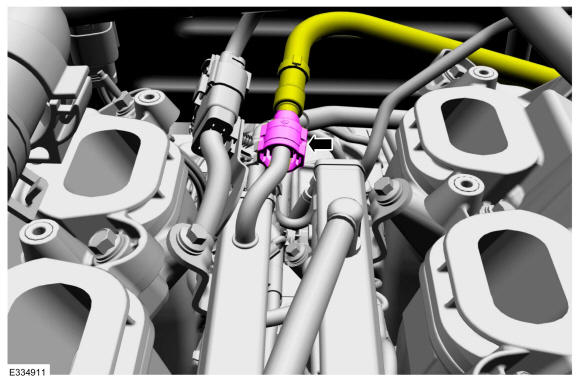

- Connect the fuel rail fuel tube quick release coupling. Refer to: Quick Release Coupling
.

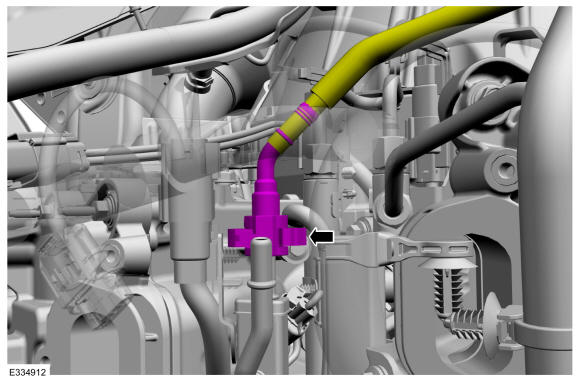

- Connect the fuel rail fuel tube quick release coupling. Refer to: Quick Release Coupling
.
- Install the intake manifold. Refer to: Intake Manifold .
- Connect the battery negative cable. Refer to: Battery Disconnect and Connect .
- Pressurize the fuel system. Refer to: Fuel System Pressure Release .
