Variable Camshaft Timing (VCT) Unit: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If the RHVCT units are being serviced at the same time as the LHVCT units, remove the RHVCT units first.

RH variable camshaft timing (VCT) unit

Remove the RH timing chain. Refer to: Timing Chain .
1. Remove and discard the VCT unit bolts.
2. Remove the VCT units.
Courtesy of FORD MOTOR COMPANY

LH variable camshaft timing (VCT) unit
Remove the LH timing chain. Refer to: Timing Chain .

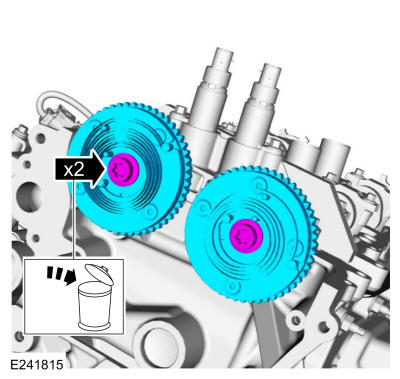

1. Remove and discard the VCT unit bolts.
2. Remove the VCT units.

Courtesy of FORD MOTOR COMPANY
