Oil Pump: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

4x2/4x4

  1. Remove the engine front cover. Refer to: Engine Front Cover .
  2. Install the crankshaft pulley bolt.
    GFD554023Courtesy of FORD MOTOR COMPANY
    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    GFD554024Courtesy of FORD MOTOR COMPANY
  3. Verify the timing marks on the VCT units are at the positions shown.
    GFD554025Courtesy of FORD MOTOR COMPANY
  4. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD554311Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the RH timing chain guide.
    GFD554027Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the RH timing chain tensioner.
    GFD554028Courtesy of FORD MOTOR COMPANY
  7. Remove the RH timing chain tensioner arm.
    GFD554029Courtesy of FORD MOTOR COMPANY
  8. Remove the RH timing chain.
    GFD554030Courtesy of FORD MOTOR COMPANY
  9. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD554965Courtesy of FORD MOTOR COMPANY
  10. Verify the timing marks on the VCT units are at the positions shown.
    GFD554032Courtesy of FORD MOTOR COMPANY
  11. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    GFD554033Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the LH timing chain guide.
    GFD554034Courtesy of FORD MOTOR COMPANY
  13. Remove the studbolt, bolt and the LH timing chain tensioner.
    GFD554035Courtesy of FORD MOTOR COMPANY
  14. Remove the LH timing chain tensioner arm.
    GFD554036Courtesy of FORD MOTOR COMPANY
  15. Remove the LH timing chain.
    GFD554966Courtesy of FORD MOTOR COMPANY
  16. Remove the crankshaft pulley bolt.
    GFD554038Courtesy of FORD MOTOR COMPANY
  17. Remove the timing chain sprocket.
    GFD554323Courtesy of FORD MOTOR COMPANY
  18. Remove the nuts, bolts and the crossmember.
    GFD554935Courtesy of FORD MOTOR COMPANY

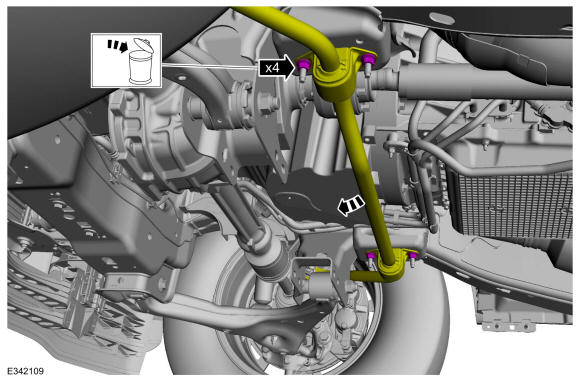

  19. Remove and discard the nuts, allow the sway bar to swing downward.
    GFD554936Courtesy of FORD MOTOR COMPANY

    4x4

  20. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD554851Courtesy of FORD MOTOR COMPANY
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD554852Courtesy of FORD MOTOR COMPANY
  21. Remove the steering gear boot.
    GFD554853Courtesy of FORD MOTOR COMPANY
  22. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD554854Courtesy of FORD MOTOR COMPANY

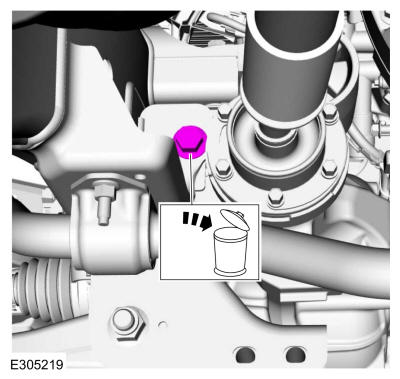

  23. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD554937Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD554856Courtesy of FORD MOTOR COMPANY
  25. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD554857Courtesy of FORD MOTOR COMPANY
  26. Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD554858Courtesy of FORD MOTOR COMPANY

    4x2/4x4

  27. Remove the oil pan bolt.
    GFD554967Courtesy of FORD MOTOR COMPANY
  28. Remove the oil pan bolts.
    GFD554941Courtesy of FORD MOTOR COMPANY

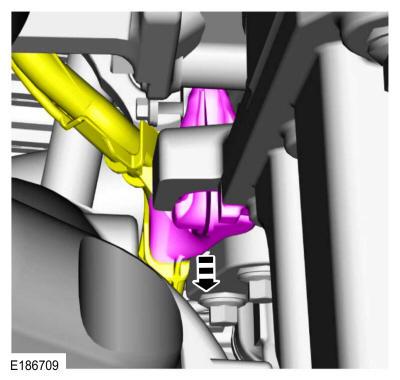

  29. NOTE: The generator wiring harness retainer is being removed for clearance to install the oil pan.

    Detach the generator wiring harness retainer from the engine block.

    GFD554968Courtesy of FORD MOTOR COMPANY

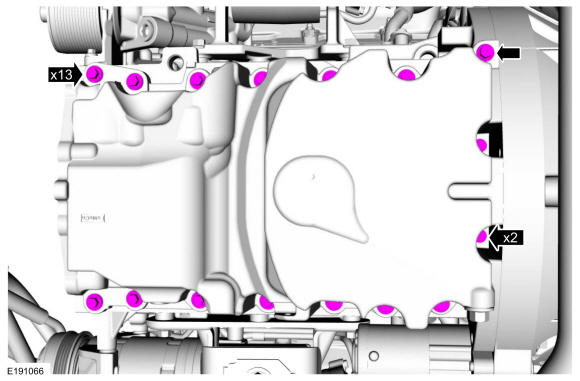

  30. Remove the oil pan bolts.
    GFD554969Courtesy of FORD MOTOR COMPANY

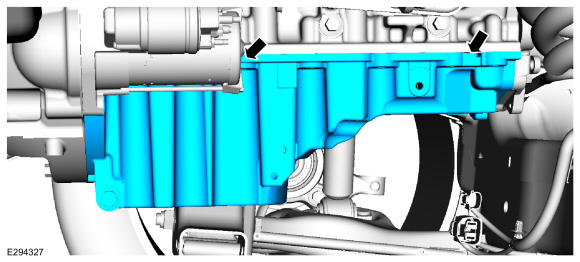

  31. Using a pry tool on the pry pads shown, remove the oil pan.
    GFD554970Courtesy of FORD MOTOR COMPANY

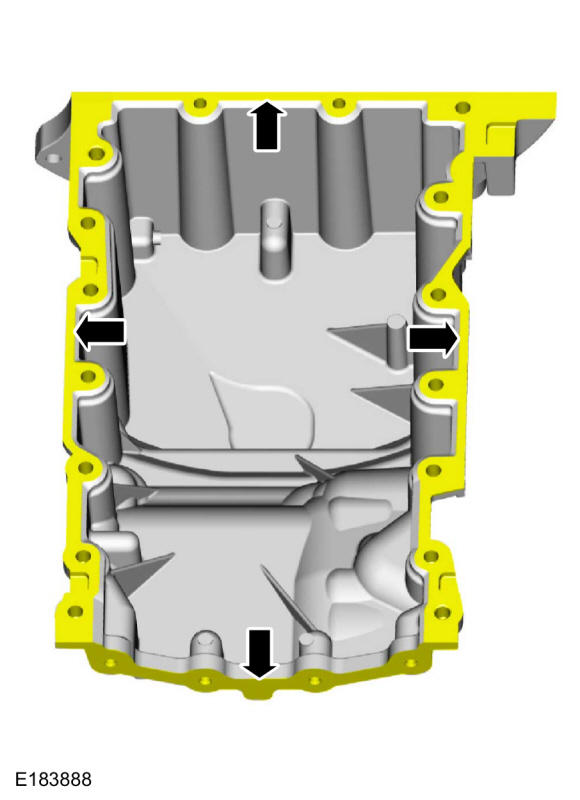

  32. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD554949Courtesy of FORD MOTOR COMPANY

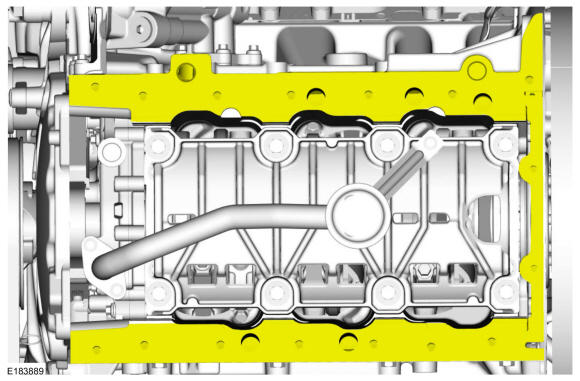

  33. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD554950Courtesy of FORD MOTOR COMPANY
  34. Remove the bolts and oil pump screen and pickup tube.
    GFD554971Courtesy of FORD MOTOR COMPANY

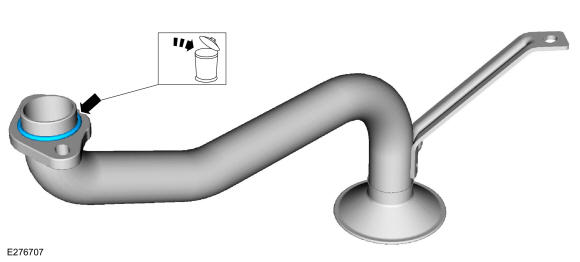

  35. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD554353Courtesy of FORD MOTOR COMPANY
  36. Remove the bolts and oil pump.
GFD554354Courtesy of FORD MOTOR COMPANY
