Oil Pan: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

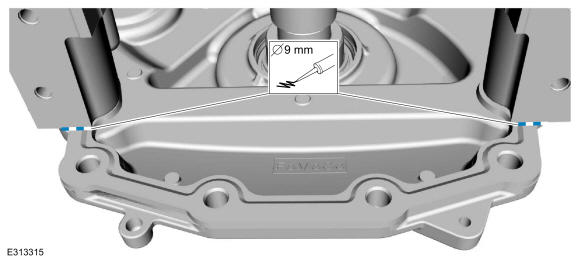

  1. Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft engine front cover-to-cylinder block joint areas.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD554952Courtesy of FORD MOTOR COMPANY
  2. NOTE: The oil pan and the specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

    Apply a 5 mm (0.20 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD554953Courtesy of FORD MOTOR COMPANY
  3. Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD554954Courtesy of FORD MOTOR COMPANY

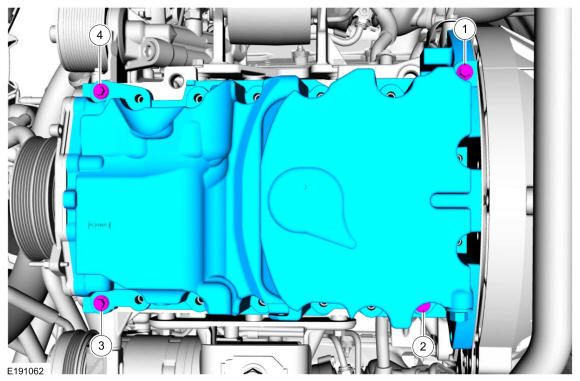

  4. NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.
    NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

    Install the oil pan and the bolts finger tight.

    GFD554955Courtesy of FORD MOTOR COMPANY

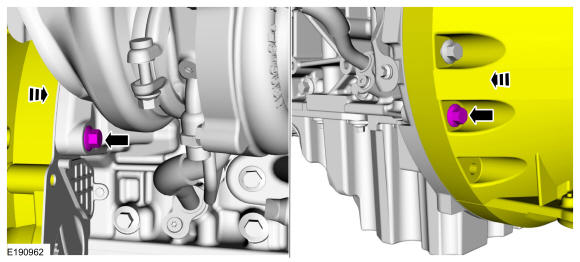

  5. NOTE: Do not torque at this time.

    Draw the transmission and engine together using the bolts.

    GFD554956Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not torque at this time.

    Install the oil pan bolts.

    GFD554941Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not torque at this time.

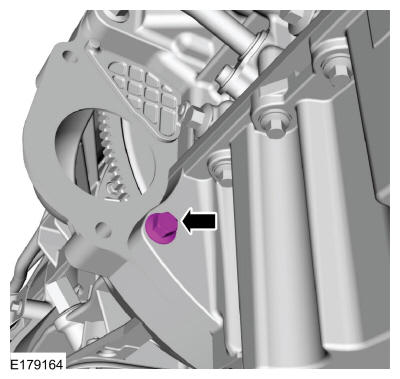

    Install the oil pan bolt.

    GFD554957Courtesy of FORD MOTOR COMPANY

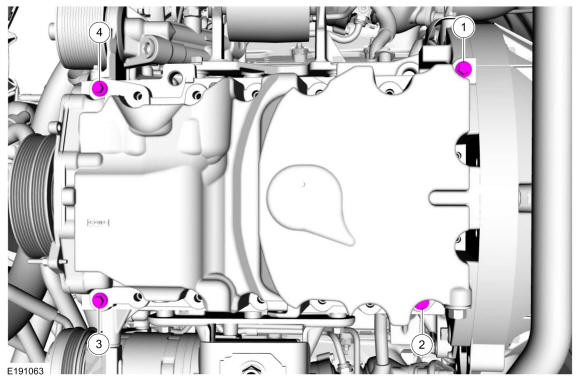

  8. Tighten the oil pan bolts.

    Torque: 27 lb.in (3 Nm)

    GFD554958Courtesy of FORD MOTOR COMPANY

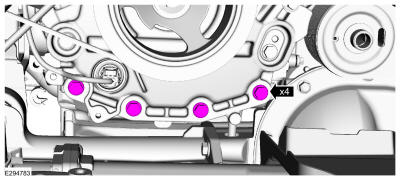

  9. Install the engine front cover bolts finger tight.
    GFD554945Courtesy of FORD MOTOR COMPANY

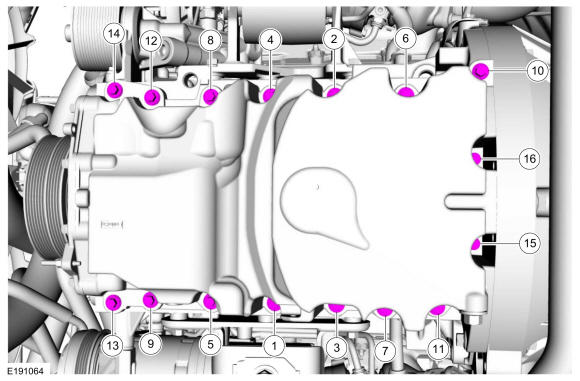

  10. Install the remaining oil pan bolts and tighten in sequence.

    Torque: Stage 1: Tighten bolts 1-9 and 11-14 to : 177 lb.in (20 Nm); Stage 2: Tighten bolt 1-9 and 11-14 additional : 45°; Stage 3: Tighten bolt 10 to : 177 lb.in (20 Nm); Stage 4: Tighten bolt 10 an additional : 90°; Stage 5: Tighten bolts 15 and 16 to : 89 lb.in (10 Nm); Stage 6: Tighten bolts 15 and 16 an additional : 45°

    Fig 1: Oil Pan Tightening Sequence
    GFD554959Courtesy of FORD MOTOR COMPANY
  11. Tighten the engine front cover bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD554945Courtesy of FORD MOTOR COMPANY

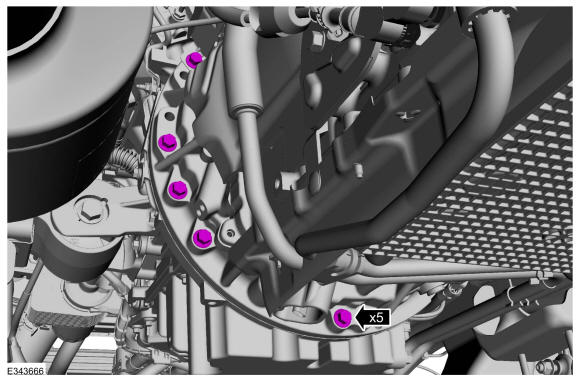

  12. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD554960Courtesy of FORD MOTOR COMPANY

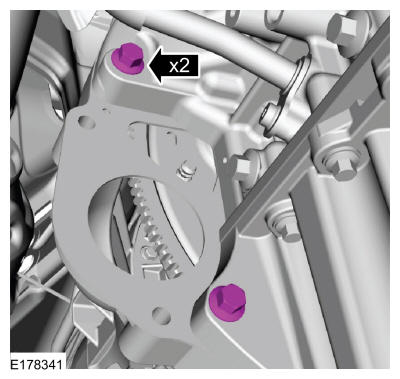

  13. Tighten the oil pan and bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD554961Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    GFD554118Courtesy of FORD MOTOR COMPANY

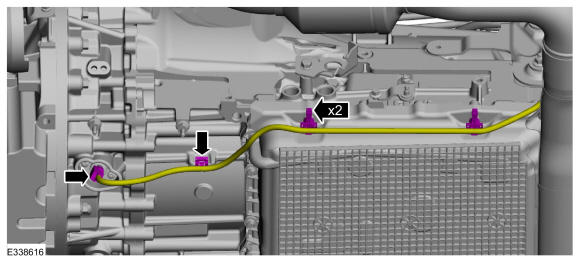

  15. Connect the engine clutch pressure sensor and attach the wiring harness to the transmission.
    GFD554938Courtesy of FORD MOTOR COMPANY
  16. Attach the generator wiring harness retainer to the engine block.
    GFD554718Courtesy of FORD MOTOR COMPANY

    4x4

  17. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    GFD554869Courtesy of FORD MOTOR COMPANY
  18. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    GFD554870Courtesy of FORD MOTOR COMPANY
  19. Install the new axle shaft housing carrier bushing nut and the bolt finger tight.
    GFD554871Courtesy of FORD MOTOR COMPANY
  20. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD554962Courtesy of FORD MOTOR COMPANY
  21. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD554873Courtesy of FORD MOTOR COMPANY
  22. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    GFD554874Courtesy of FORD MOTOR COMPANY
  23. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands
    GFD554854Courtesy of FORD MOTOR COMPANY
  24. Install the steering gear boot.
    GFD554853Courtesy of FORD MOTOR COMPANY
    1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Install a new steering column shaft bolt.

      Torque: 22 lb.ft (30 Nm)

    GFD554875Courtesy of FORD MOTOR COMPANY
  26. Remove the holding device from the steering wheel.
    GFD554851Courtesy of FORD MOTOR COMPANY

    4x2/4x4

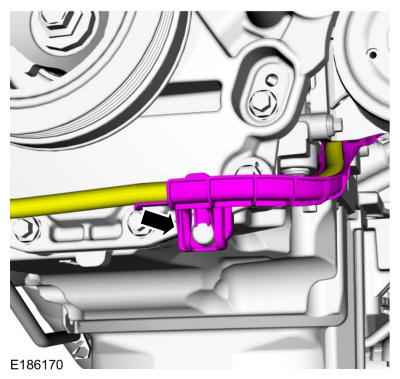

  27. Attach the generator wiring harness to the engine front cover.
    GFD554934Courtesy of FORD MOTOR COMPANY
  28. Position back the engine wiring harness.
    GFD554657Courtesy of FORD MOTOR COMPANY

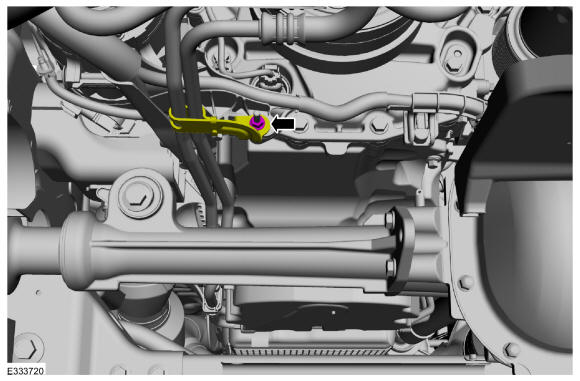

  29. Position back the engine wire harness. Position back the transmission cooler tube bracket and install the nut.

    Torque: 106 lb.in (12 Nm)

    GFD554932Courtesy of FORD MOTOR COMPANY
  30. Position the wiring harness cover to the oil pan and install the fasteners.

    Torque: 18 lb.ft (25 Nm)

    GFD554824Courtesy of FORD MOTOR COMPANY
  31. Position the wire harness bracket on the motor mount and install the bolt.
    GFD554823Courtesy of FORD MOTOR COMPANY
  32. Position the sway bar back and install the nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD554963Courtesy of FORD MOTOR COMPANY
  33. Position the crossmember, install the nuts and bolts.

    Torque: 66 lb.ft (90 Nm)

    GFD554935Courtesy of FORD MOTOR COMPANY
  34. Install the starter motor. Refer to: Starter Motor .
  35. Install a new oil filter.

    Torque: Stage 1: 44 lb.in (5 Nm); Stage 2: 180°

    GFD554671Courtesy of FORD MOTOR COMPANY

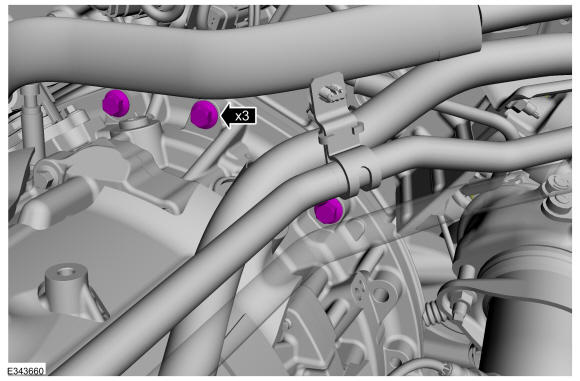

  36. Tighten the upper bell housing-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD554930Courtesy of FORD MOTOR COMPANY

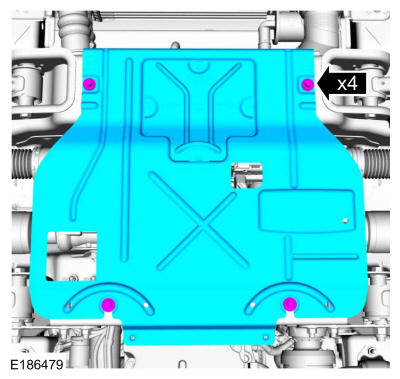

  37. Install the skid plate and the bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD554929Courtesy of FORD MOTOR COMPANY

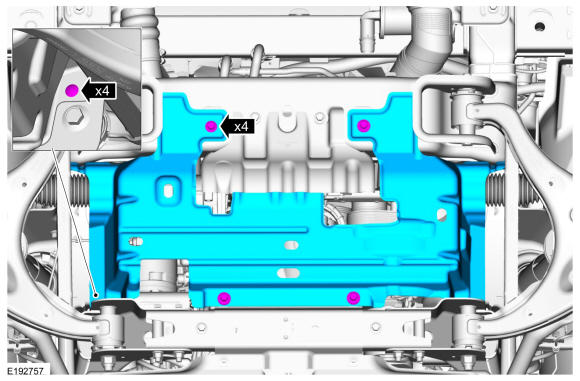

    • If equipped, install the underbody shield and the bolts.

      Torque: 30 lb.ft (40 Nm)

    • Install the pin-type retainers.

    GFD554928Courtesy of FORD MOTOR COMPANY

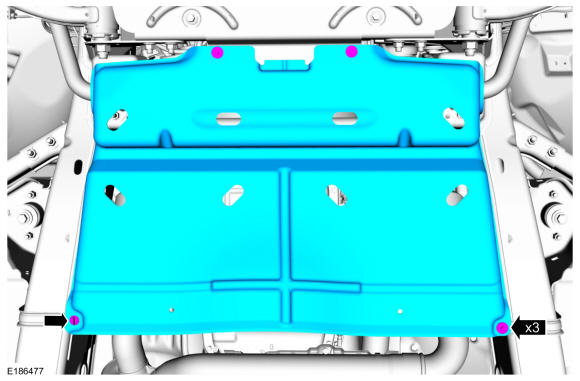

    • If equipped, install the transmission housing cover and attach the retainer.

    • Install the bolts.

      Torque: 71 lb.in (8 Nm)

    GFD554927Courtesy of FORD MOTOR COMPANY

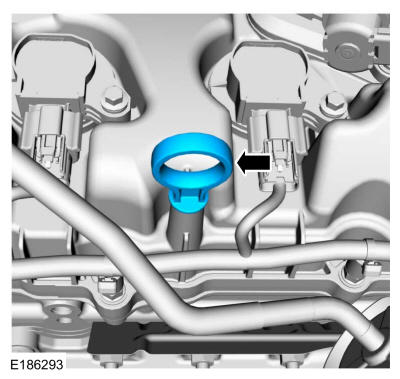

  40. Install the oil level indicator.
    GFD554926Courtesy of FORD MOTOR COMPANY
  41. Fill the engine with clean engine oil. Refer to: Specifications .
    GFD554842Courtesy of FORD MOTOR COMPANY
  42. Connect the battery ground cable. Refer to: Battery Cables - 3.5L EcoBoost (BM) .
