Exhaust Manifold RH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: The exhaust manifold heat shield provides critical protection for dual generator-equipped engines. If removed, it must be properly reinstalled.

Engines equipped with dual generators. Remove the bolts and the exhaust manifold heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the EGR cooler exhaust tube from the exhaust.

Courtesy of FORD MOTOR COMPANY
Remove the RH turbocharger. Refer to: Turbocharger RH .

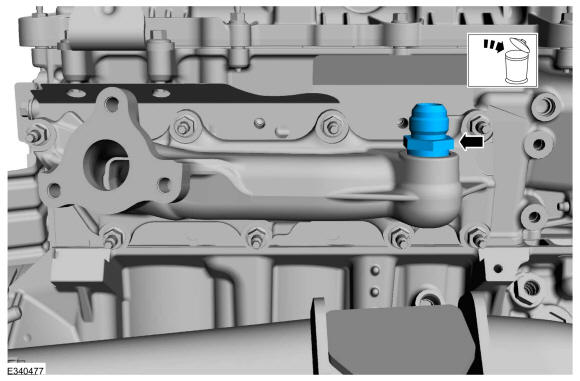

Remove and discard the EGR to exhaust manifold connector.

Courtesy of FORD MOTOR COMPANY

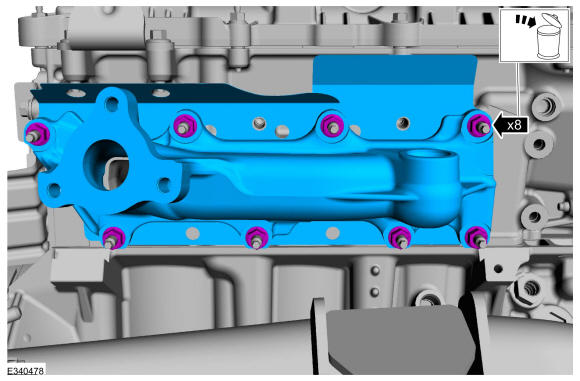

Remove the nuts and the RH exhaust manifold. Discard the nuts.

Courtesy of FORD MOTOR COMPANY

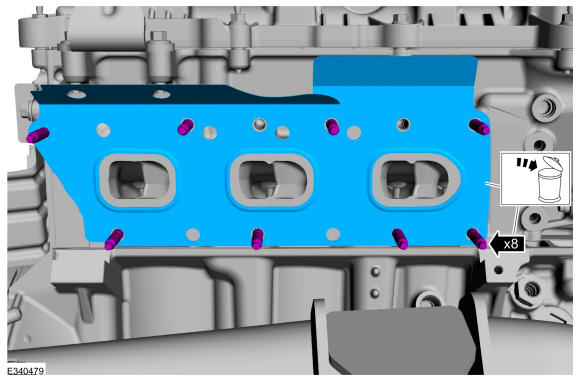

Remove the nuts, the RH exhaust manifold gasket and discard.

Courtesy of FORD MOTOR COMPANY
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
- NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These may cause scratches and gouges resulting in leak paths. Use a plastic scraper to clean the sealing surfaces.

  Clean the exhaust manifold mating surface of the cylinder head with metal surface prep wipes. Follow the directions on the packaging.

  Material

  : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
