Engine Mount RH: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Clean the engine mount-to-cylinder block and engine mount-to-frame mating surfaces of any dirt or foreign material prior to installation.

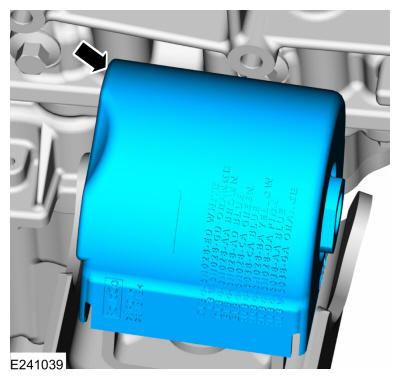

Position the RH engine mount into the vehicle.

Courtesy of FORD MOTOR COMPANY

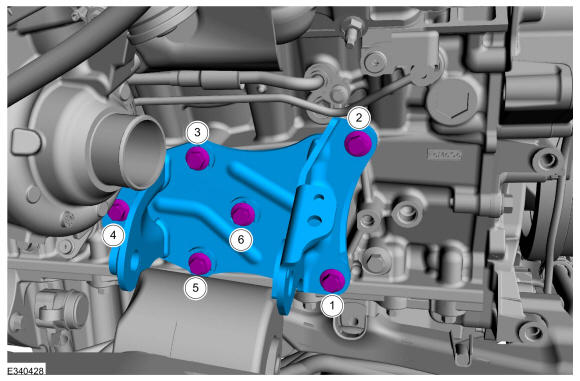

Position the RH engine mount-to-cylinder block bracket and install the new bolts in the sequence shown.
Torque: 55 lb.ft (75 Nm)

Fig 1: RH Engine Mount-To-Cylinder Block Bracket Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.

NOTE: Apply threadlock to the stud threads prior to installation.

Install the engine mount studs.

Material

: Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when installing the RH engine mount nuts or damage to the engine mount can occur.

Install the new RH engine mount nuts.

Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
- Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
- Remove the stand.
Courtesy of FORD MOTOR COMPANY

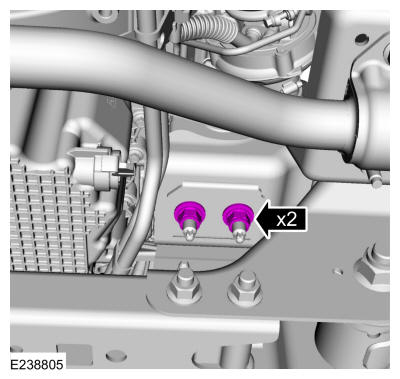

Position the stabilizer bar and install the new nuts.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

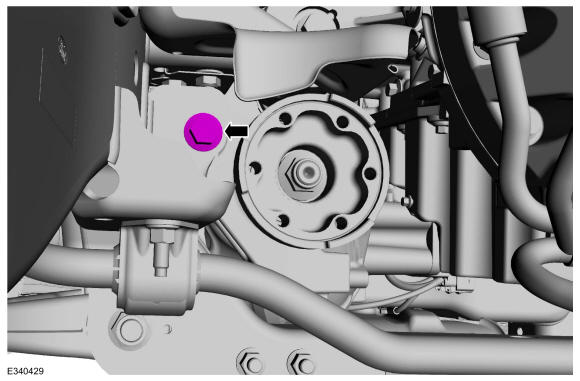

Install the new LH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

Install the new RH engine mount through bolt.

Torque: 258 lb.ft (350 Nm)

Courtesy of FORD MOTOR COMPANY
Position the wire harness back and install the retainers.

Courtesy of FORD MOTOR COMPANY
Position the wire harness bracket back and install the bolt.

Courtesy of FORD MOTOR COMPANY
Install the wire harness pin-type retainer, position back the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the wire harness and shield back and install the bolt.
  Torque: 53 lb.in (6 Nm)
- Connect the A/C compressor electrical connector.
Courtesy of FORD MOTOR COMPANY
Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the starter motor. Refer to: Starter Motor .
NOTE: Only use hand tools when loosening or tightening the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

Remove and discard the transmission mount-to-crossmember nuts. Install new transmission mount-to-crossmember nuts.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new RH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new LH catalytic converter-to-turbocharger nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, install the front driveshaft. Refer to: Front Driveshaft .

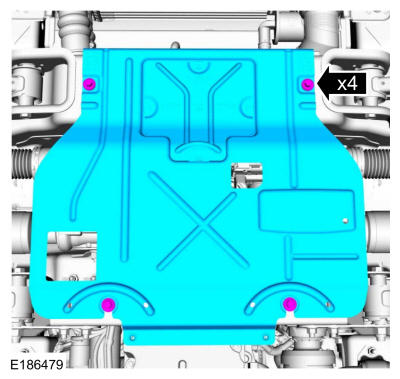

If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

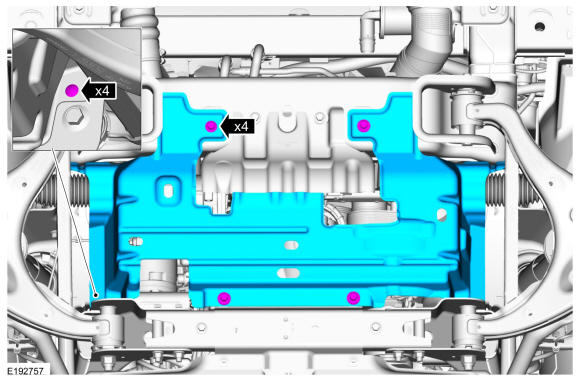

- If equipped, install the underbody shield and the bolts.
  Torque: 30 lb.ft (40 Nm)
- Install the pin-type retainers.
Courtesy of FORD MOTOR COMPANY

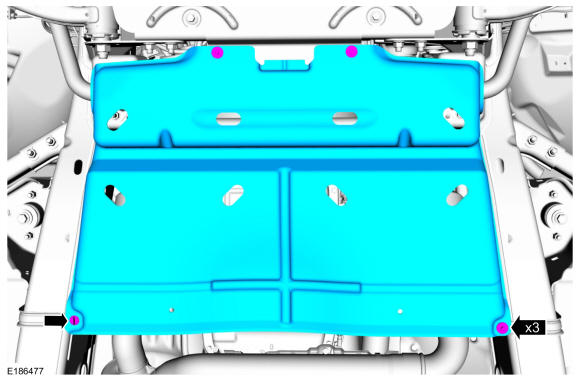

- If equipped, install the transmission housing cover and attach the retainer.
- Install the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Install the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Start and check the exhaust system for leaks.
