Crankshaft Pulley: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

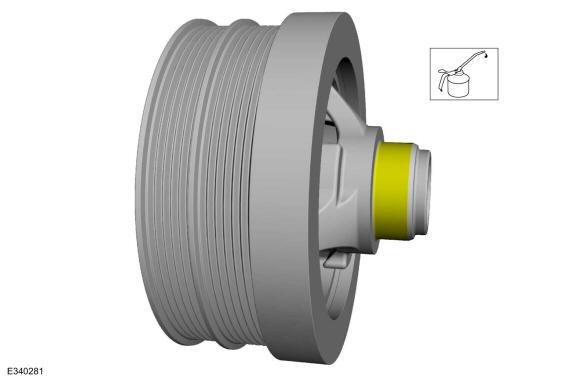

- Lubricate the crankshaft pulley with clean engine oil. Refer to: Specifications .

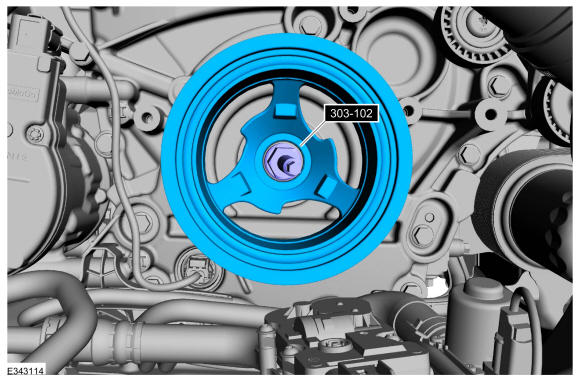

- Using the special tool, install the crankshaft pulley. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley.

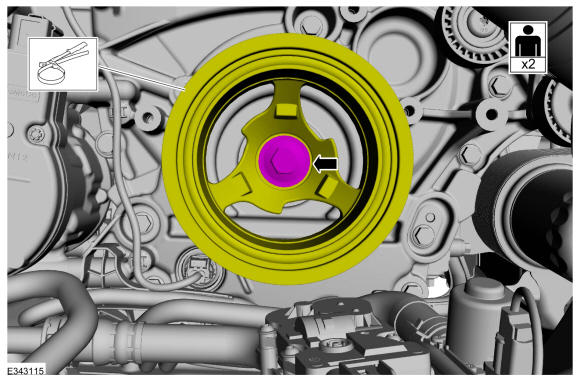

- Install the new crankshaft bolt and the washer. Use the General Equipment: Strap Wrench
Torque: Stage 1: 37 lb.ft (50 Nm); Stage 2: 90°; Stage 3: 60°
- Install the accessory drive belt. Refer to: Accessory Drive Belt . Refer to: Coolant Pump Belt .
- Install the coolant pump belt. Refer to: Coolant Pump Belt .
