Exhaust Gas Recirculation (EGR) Outlet Tube: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
- Remove the RH side air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
- Remove the RH side CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
- Remove the A/C compressor outlet line bracket retainer and position aside the A/C compressor outline bracket.

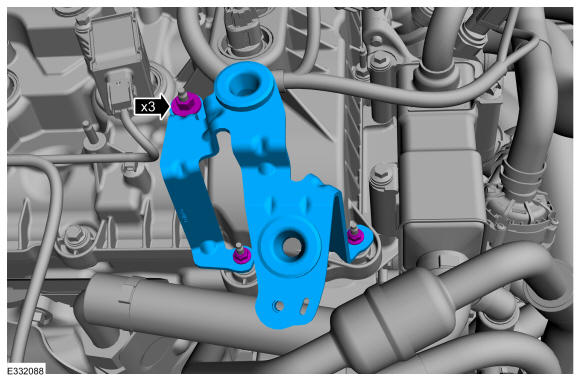

- Remove the CAC tube bracket retainers and remove the CAC tube bracket.
- Disconnect the electrical connectors and wiring harness retainer. Position aside the wiring harness.
- Disconnect the lower coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling
.
- Disconnect the upper coolant hose from the EGR cooler assembly. Refer to: Quick Release Coupling
.
- Loosen the clamps and disconnect the differential pressure sensor hoses.
- Position aside the heat shield.
- Remove the EGR inlet tube nut.
- Remove the EGR assembly.
- Remove and discard the EGR to exhaust manifold connector.
-

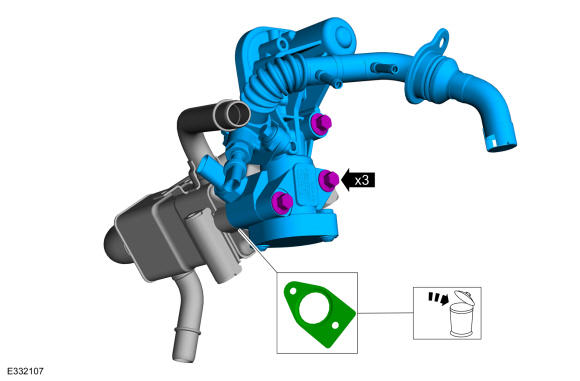

- Remove the bolts and EGR valve assembly.
- Remove and discard the EGR valve gasket.
-

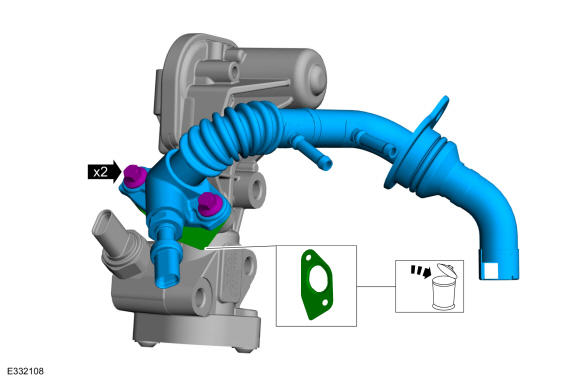

- Remove the EGR outlet tube retainers and EGR outlet tube.
- Remove and discard the EGR outlet tube gasket.
