Exhaust Gas Recirculation (EGR) Back Pressure Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

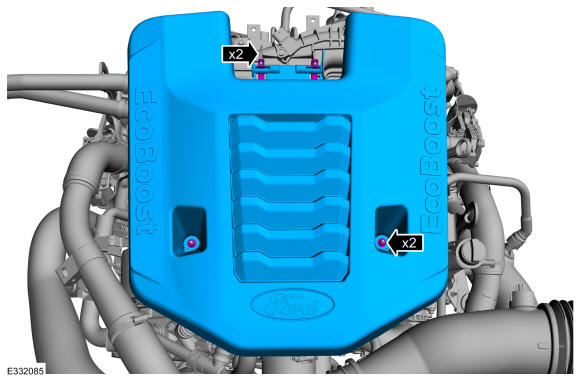

Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Remove the RH side air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Remove the RH side CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

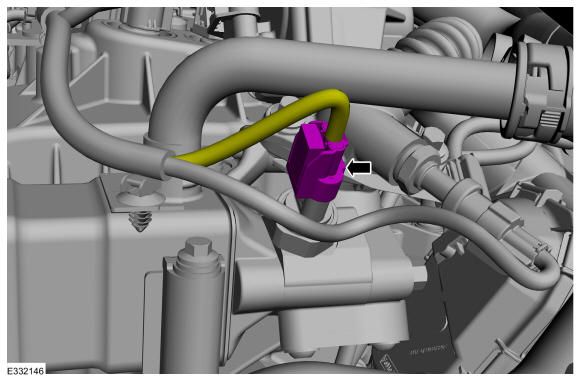

Disconnect the EGR back pressure sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

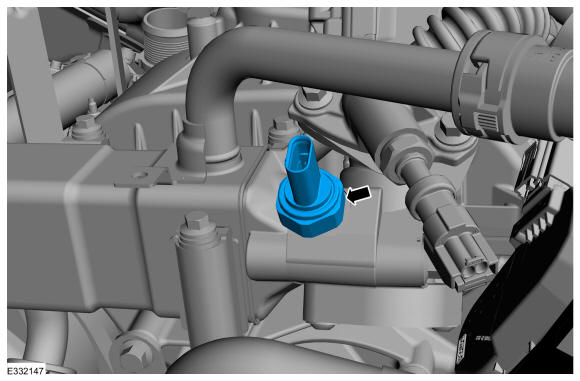

Remove the EGR back pressure sensor.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
