Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

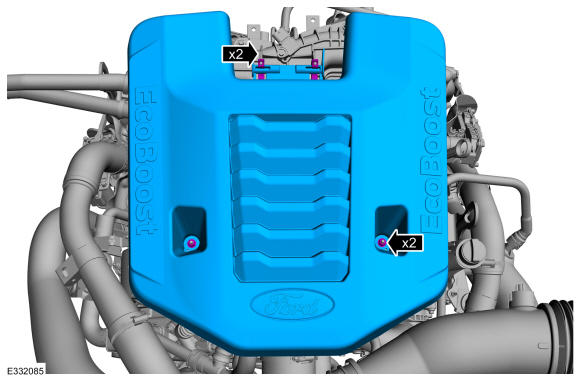

- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
Torque
: 97 lb.in (11 Nm)

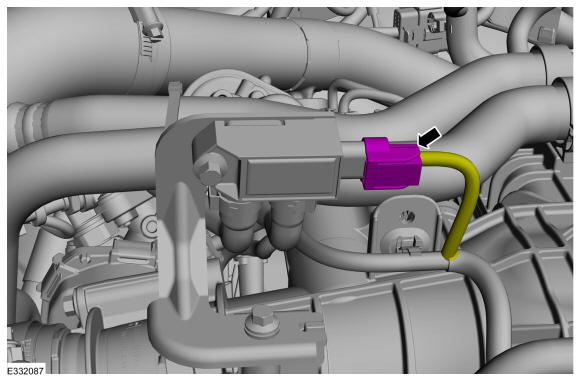

- Disconnect the electrical connector and position aside the wiring harness.
-
- Loosen the clamps.

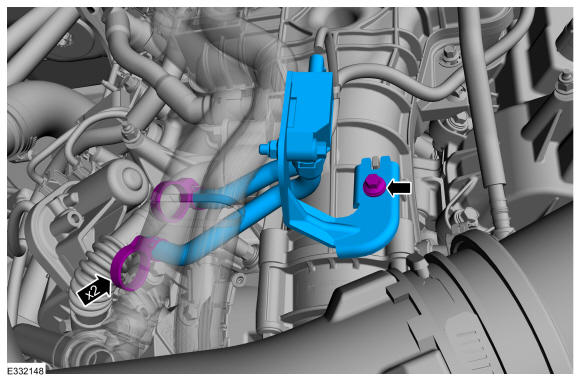

- Remove the retainer and the differential pressure feedback EGR sensor.
Torque
: 89 lb.in (10 Nm)
