Coolant Pump: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

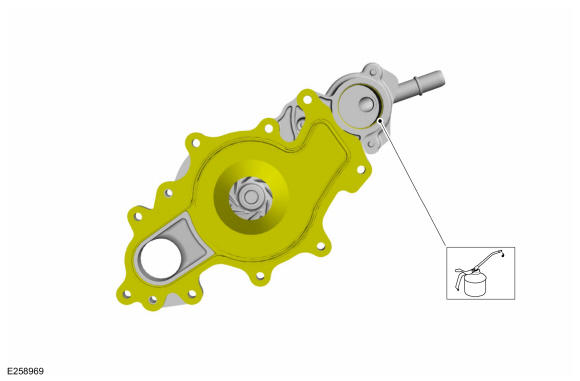

Install a new coolant pump gasket and Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Components not shown in illustration for clarity.

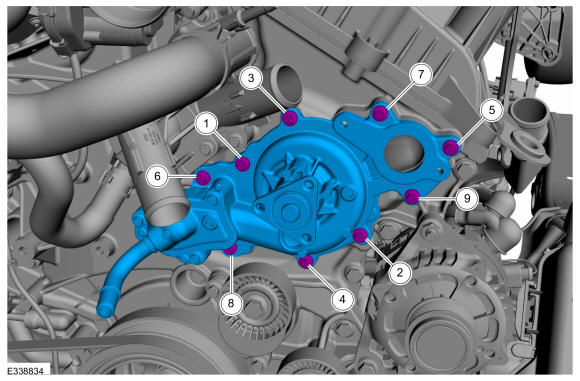

Install the coolant pump and tighten the bolts.

Torque

:Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

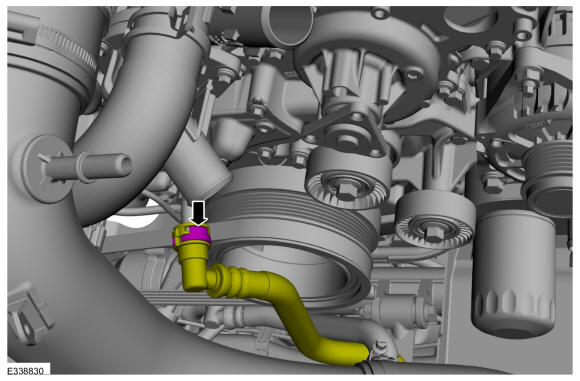

Follow the directions to connect quick release coupling type 3. Connect the coolant tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

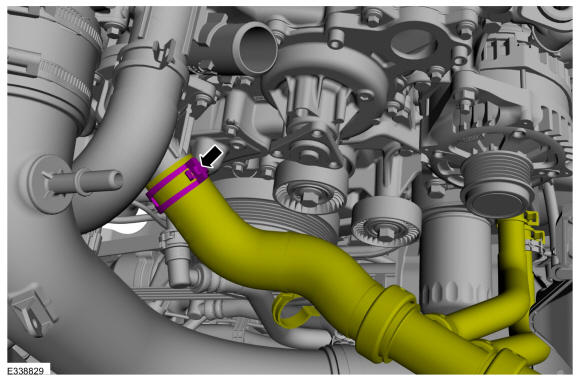

Connect the lower radiator hose and position the clamp.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

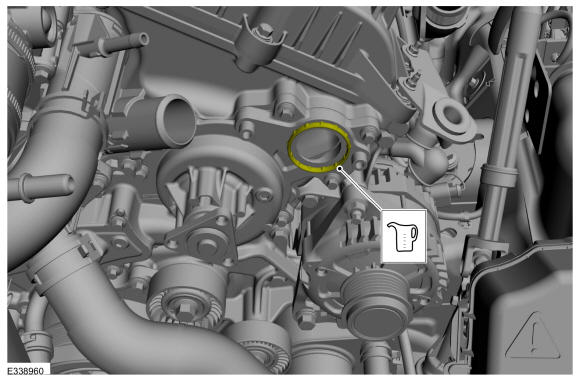

Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

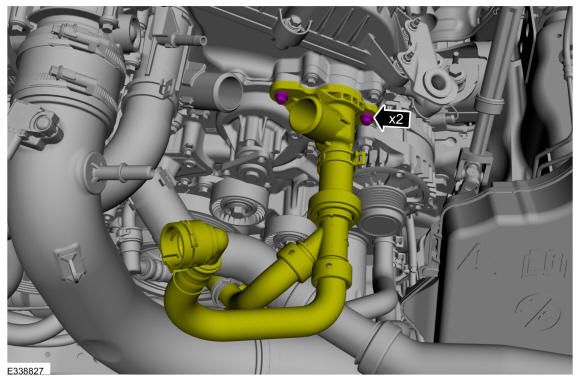

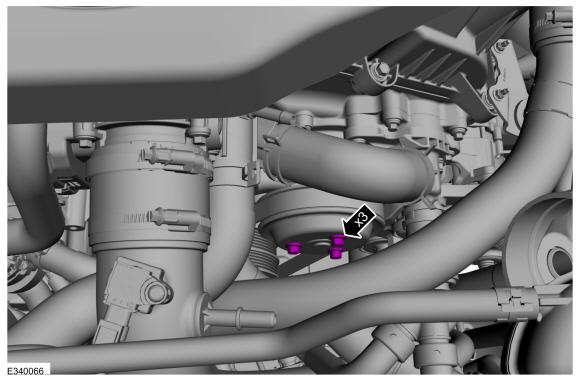

Position the water pump outlet connector and tighten the bolts.
Torque

:Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Courtesy of FORD MOTOR COMPANY

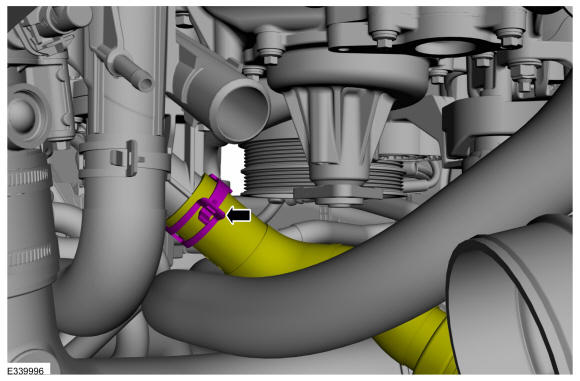

Install the coolant hose.
Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

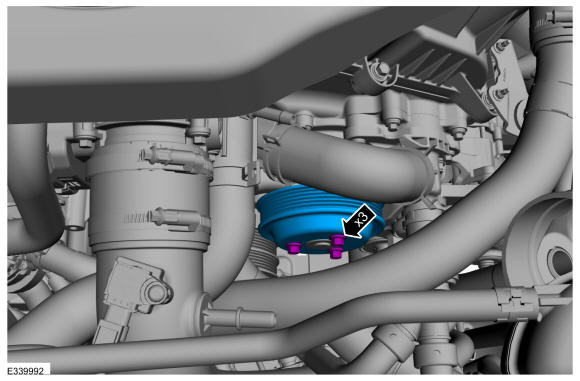

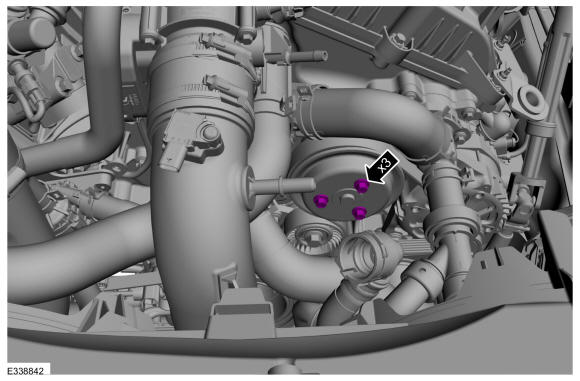

Position the coolant pump pulley and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt. Refer to: Accessory Drive Belt .
Remove the plastic from the A/C compressor belt.
Tighten the coolant pump pulley bolts.
Torque

: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

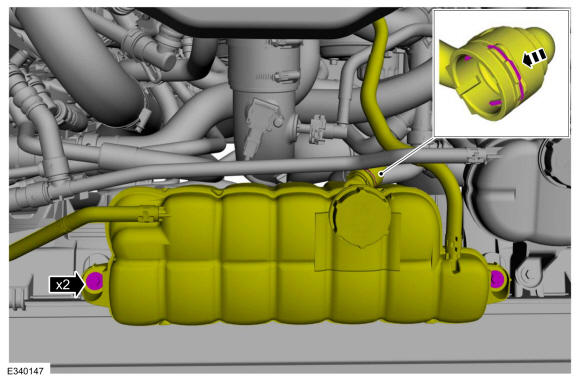

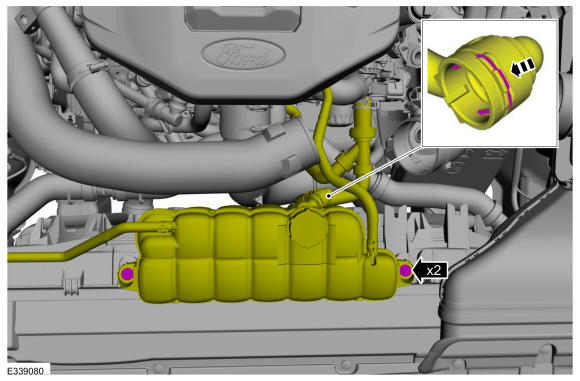

- Position the degas bottle and install the bolts.
  Torque

  : 62 lb.in (7 Nm)
- Connect the lower degas bottle hose and install the spring clip.
Courtesy of FORD MOTOR COMPANY
Install the LHCAC Intake Pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
